General Information
| Status: | in use |
|---|
Project Type
| Structure: |

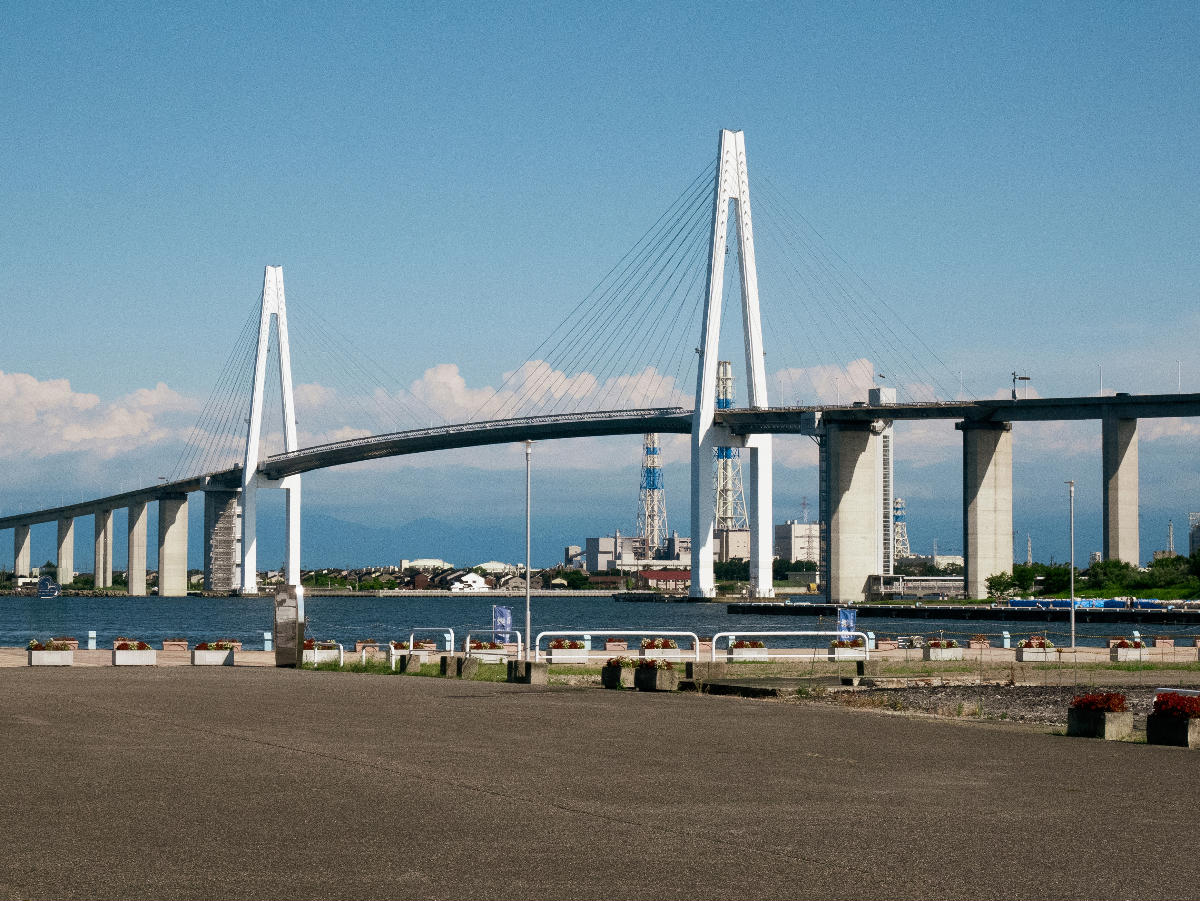

Three-span cable-stayed bridge |
|---|---|
| Function / usage: |
Road bridge |
| Material: |

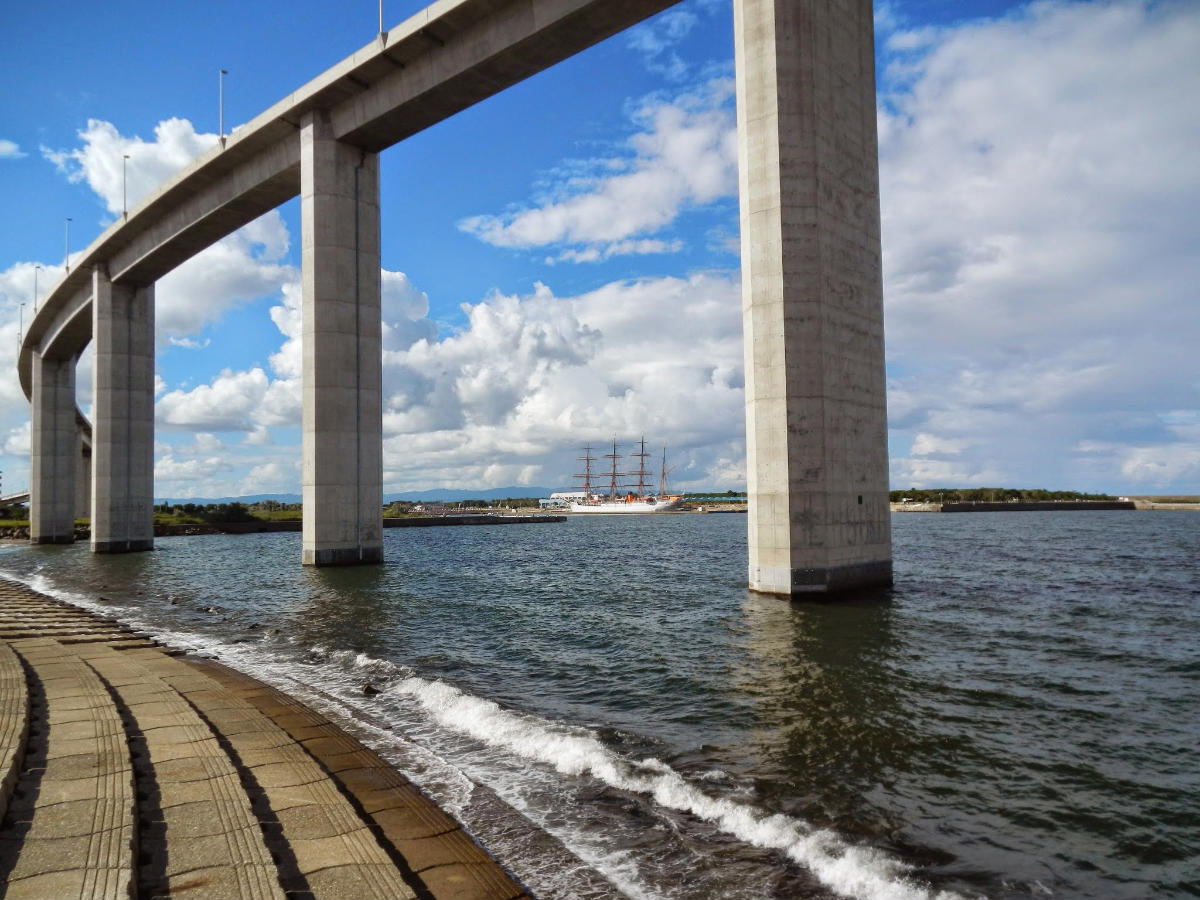

Steel-concrete hybrid bridge Structurae Plus/Pro - Subscribe Now! approach viaducts: Prestressed concrete bridge |
| Secondary structure(s): |
Structurae Plus/Pro - Subscribe Now! |
Awards and Distinctions
| 2015 |
for registered users |
|---|
Location
Technical Information
Dimensions
| total length | 600 m | |
| span lengths | 58.5 m - 60 m -360 m - 60 m - 58.5 m | |
| number of spans | 5 | |
| number of lanes | 2 | |
| roadway / carriageway width | 9.5 m | |
| vertical navigation clearance | 47 m | |
| horizontal navigation clearance | 270 m | |

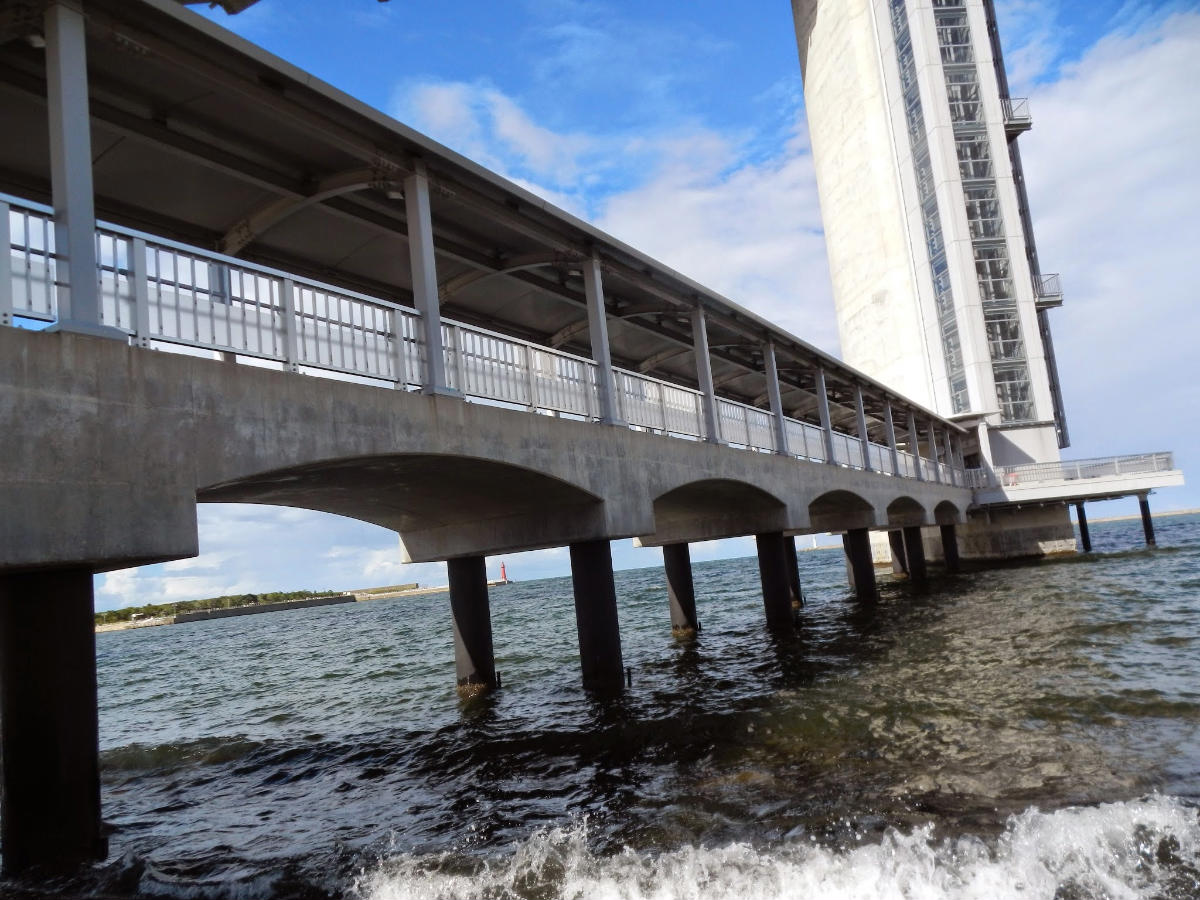

| cycleway width | 3.0 m | |

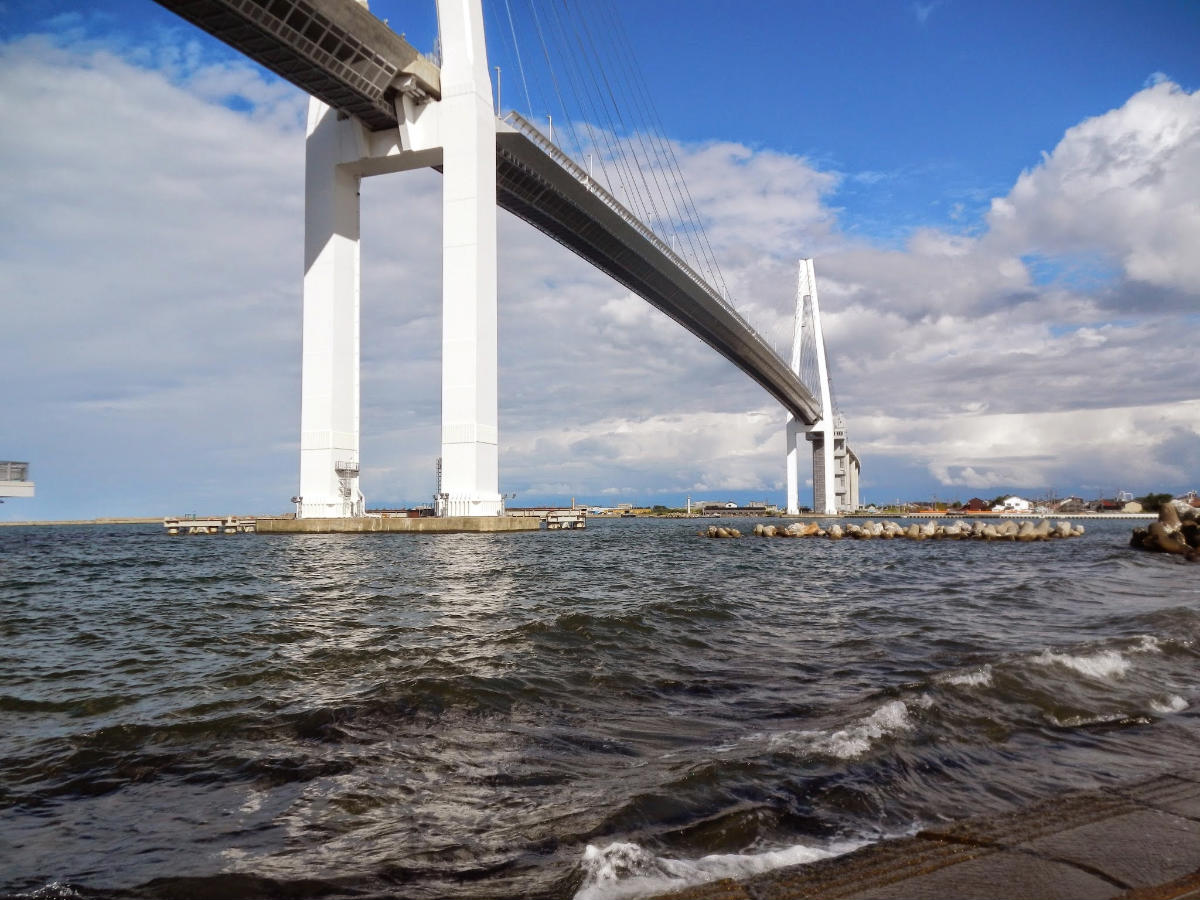

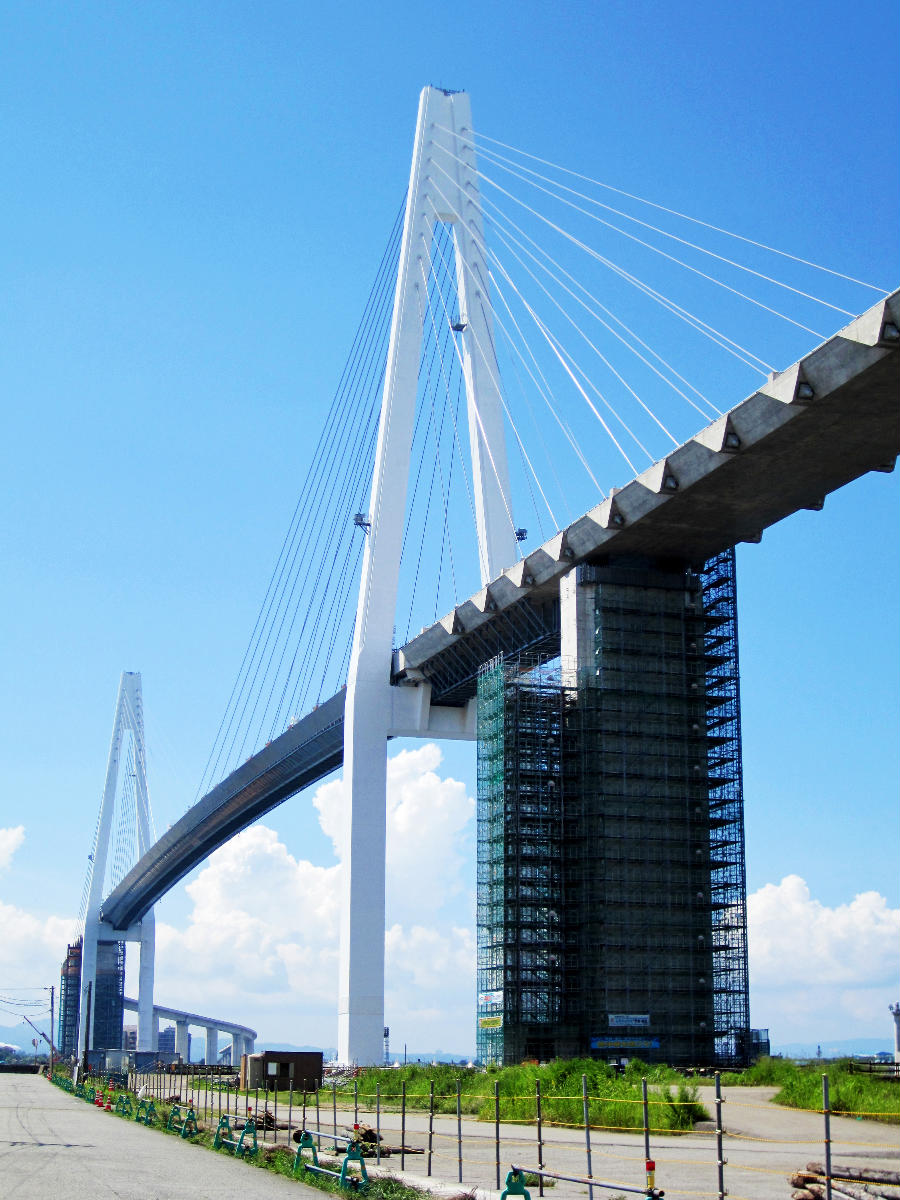

| pylon | height | 125 m |
Design Loads
| design speed | 50 km/h |
Materials
| piers |
reinforced concrete
|
|---|
Participants
Currently there is no information available about persons or companies having participated in this project.
Relevant Web Sites
There currently are no relevant websites listed.
Relevant Publications
- (2007): Design and Construction of Shinminato Bridge. Presented at: IABSE Symposium: Improving Infrastructure Worldwide, Weimar, Germany, 19-21 September 2007, pp. 590-591.
- (2008): Seismic design of a steel-concrete hybrid cable-stayed bridge - the Shin-Minato bridge. In: Steel Construction, v. 1, n. 1 ( 2008), pp. 66-70.
- About this
data sheet - Structure-ID
20068214 - Published on:
09/01/2016 - Last updated on:
21/10/2016
