General Information
Project Type
| Structure: |

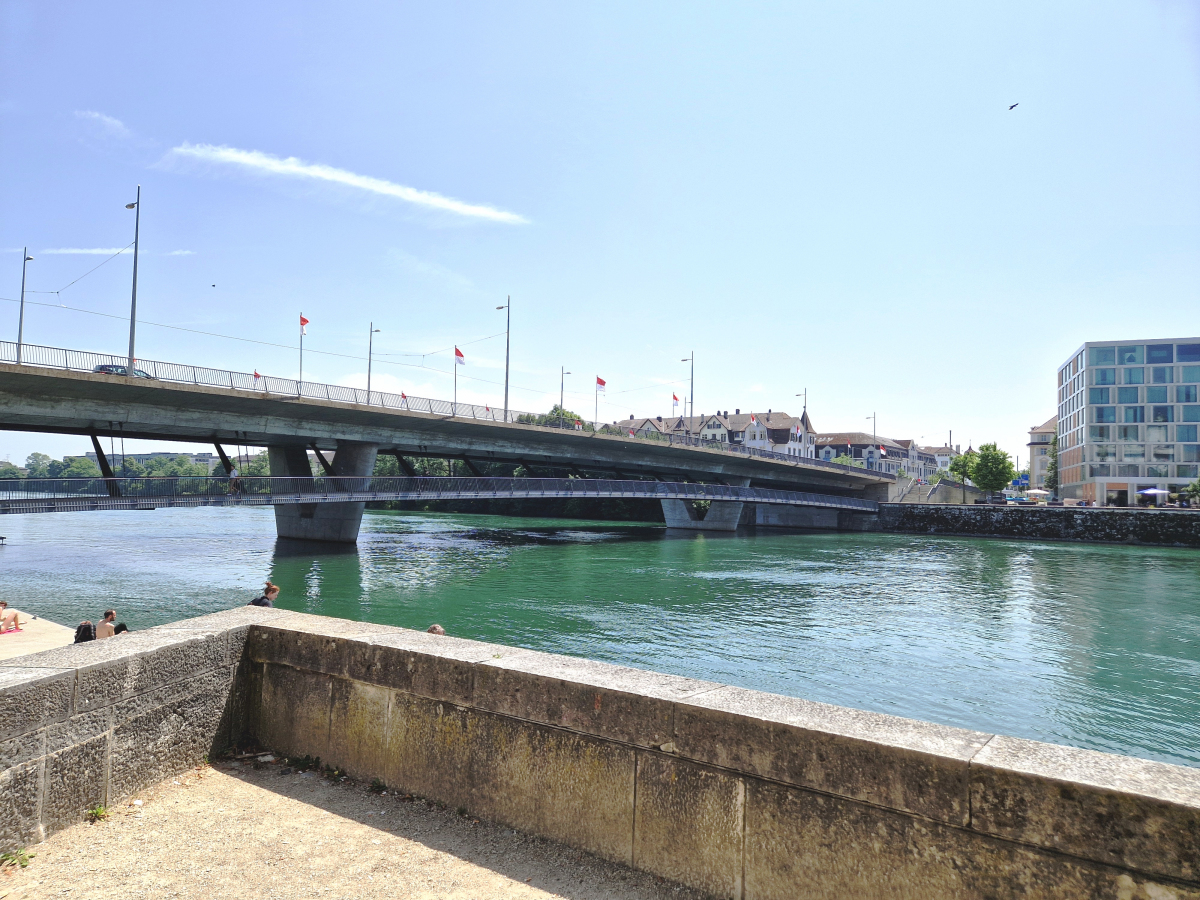

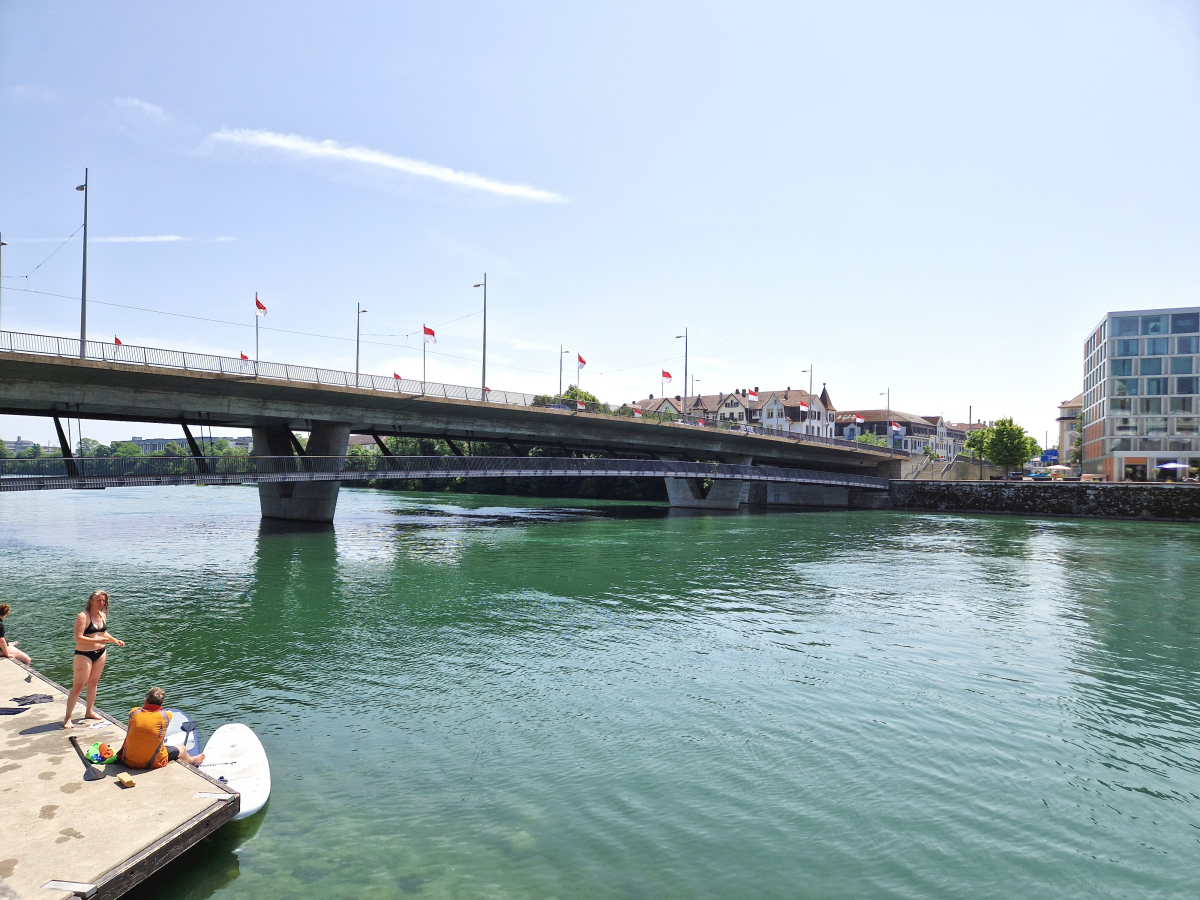

Double T-section girder bridge |
|---|---|
| Material: |
Prestressed concrete bridge |
| Structure: |
Girder bridge with suspended deck |
| Material: |
Structurae Plus/Pro - Subscribe Now! |
| Function / usage: |
upper deck: Road bridge upper deck: Tramway, light or metro rail bridge lower deck: Bicycle and pedestrian bridge |
Location
| Location: |
Solothurn, Solothurn, Switzerland |
|---|---|
| Crosses: |
|
| Coordinates: | 47° 12' 24.66" N 7° 32' 31.34" E |
Technical Information
Dimensions
| total length | 138 m | |
| span lengths | 46.20 m - 56.30 m - 35.50 m | |
| number of spans | 3 | |
| total width | 25 m | |
| deck | deck depth | 1.40 - 2 m |
| roadway / carriageway width | 2 x 3.50 m + 4 m | |
| walkway width | 2 x 1.25 m + 2 × 3 m | |
| lower deck | width | 3.50 m |
| piers | width | 8.70 - 14.50 m |
| thickness | 2 m | |
| number | 2 |
Materials
| deck |
prestressed concrete
|
|---|---|
| piers |
reinforced concrete
|
| abutments |
reinforced concrete
|
Case Studies and Applied Products
RESTON®POT – Pot Bearings
mageba Pot Bearings are durable bearings that can be used in many situations, whether in big or small bridges, or a variety of engineering structures.
[more]
TENSA®MODULAR LR & LR-LS – Modular expansion joints
Modular Expansion Joints can be constructed for any movements, from about 100 mm up to 2,000 mm and more. They allow movements in all 3 directions and rotations around all 3 axes.
[more]Participants
Owner
Design
Technical advisor to the owner
Geotechnical/geological experts
Checking engineering
- M. Grenacher (checking engineer)
Co-contractor
Pot bearings
Expansion joints
