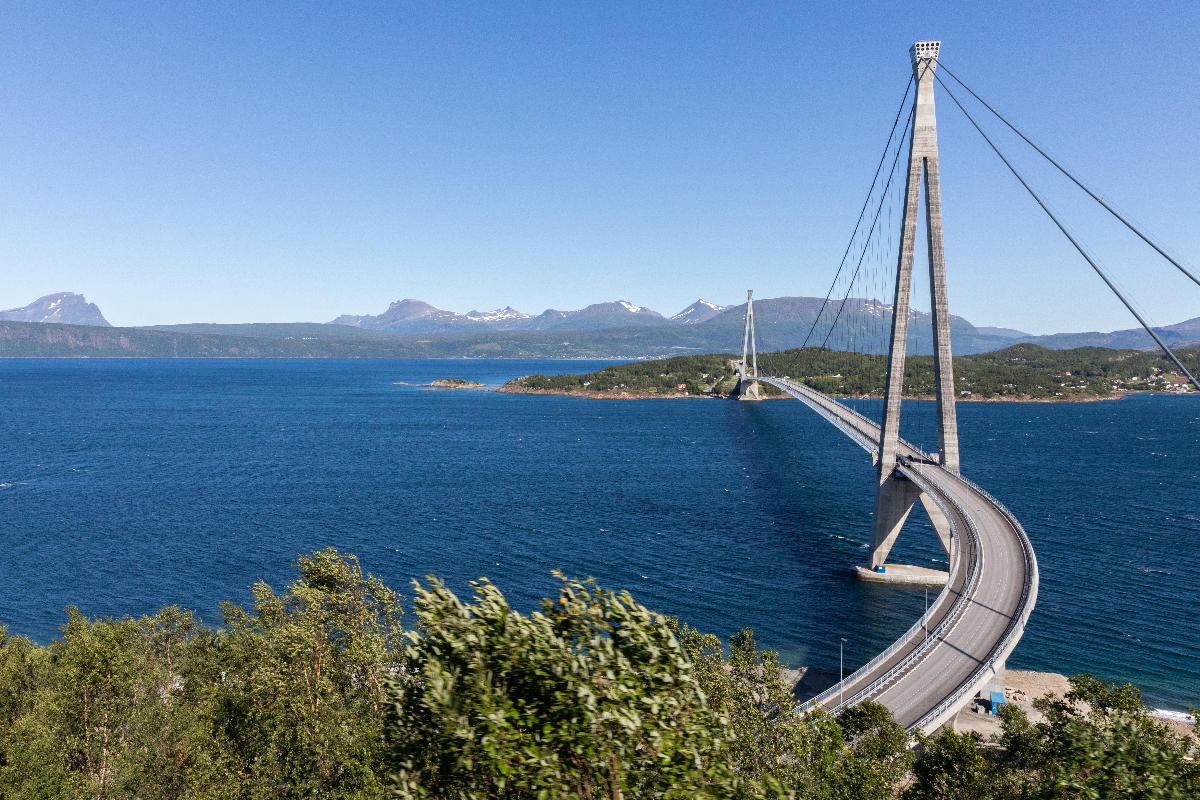

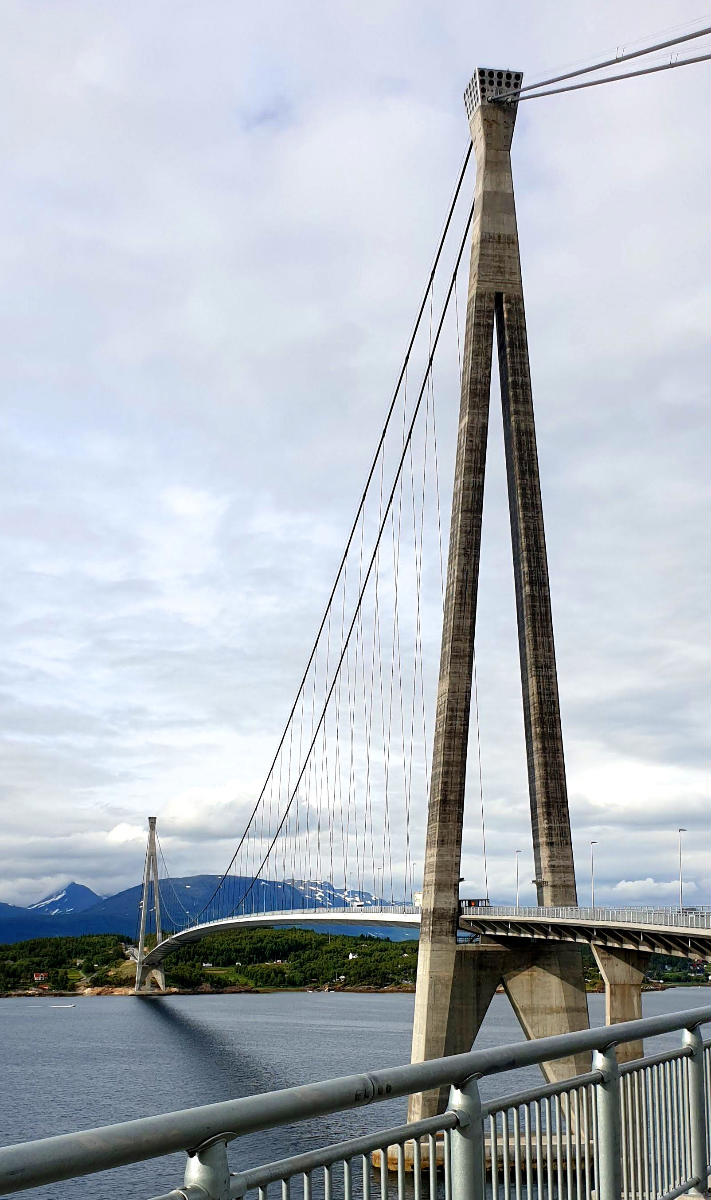

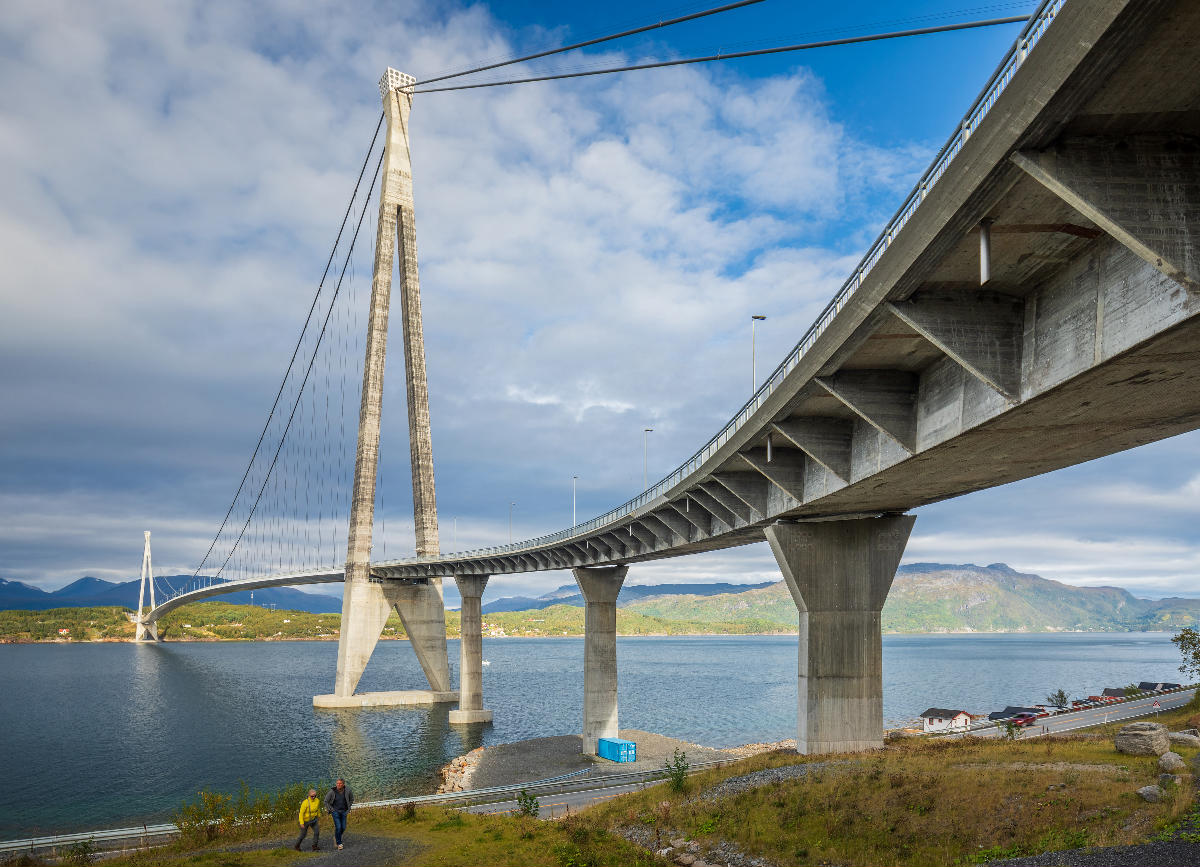

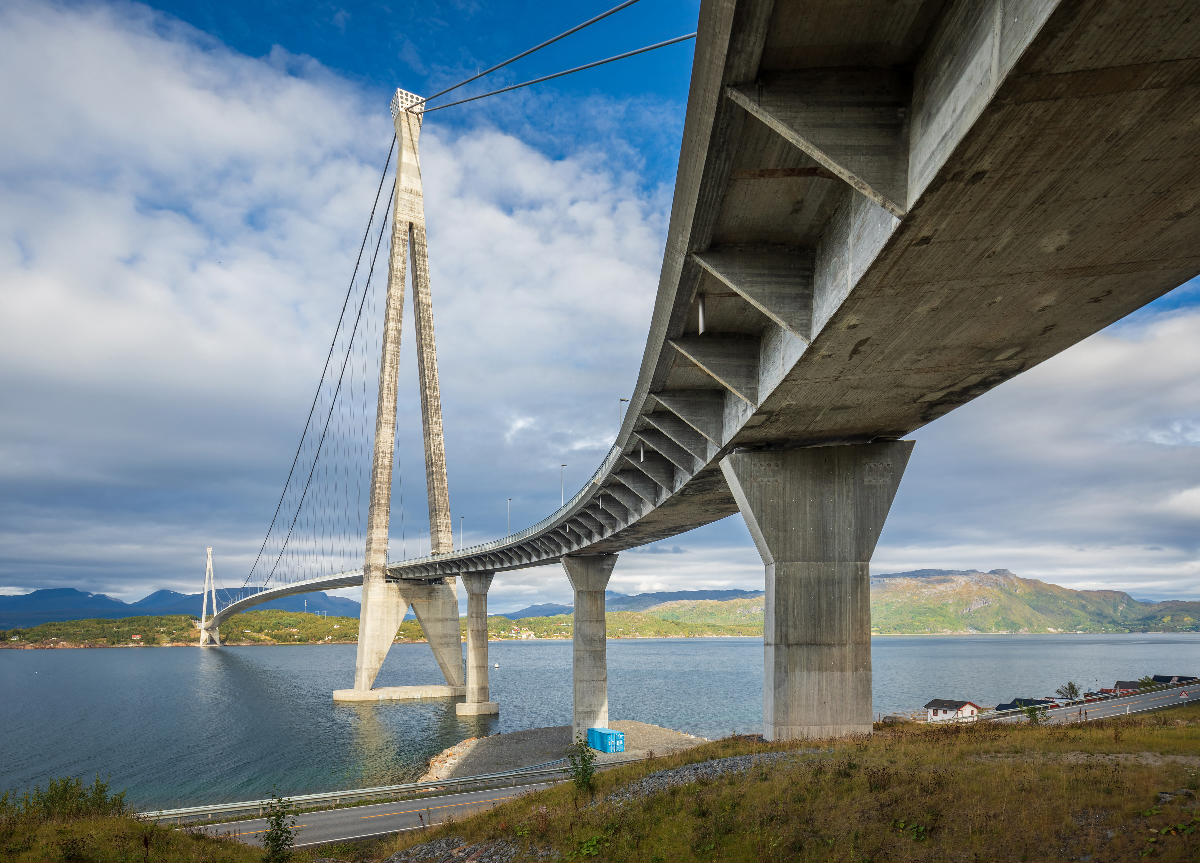

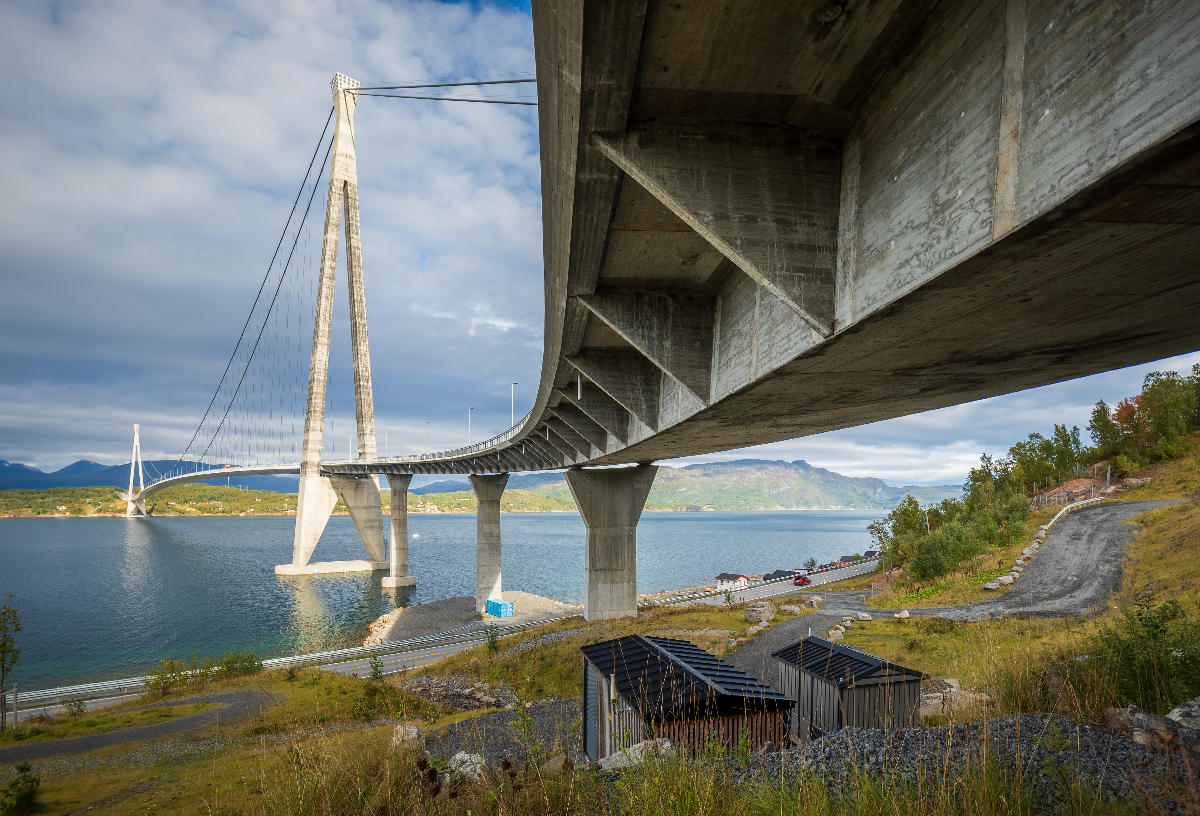

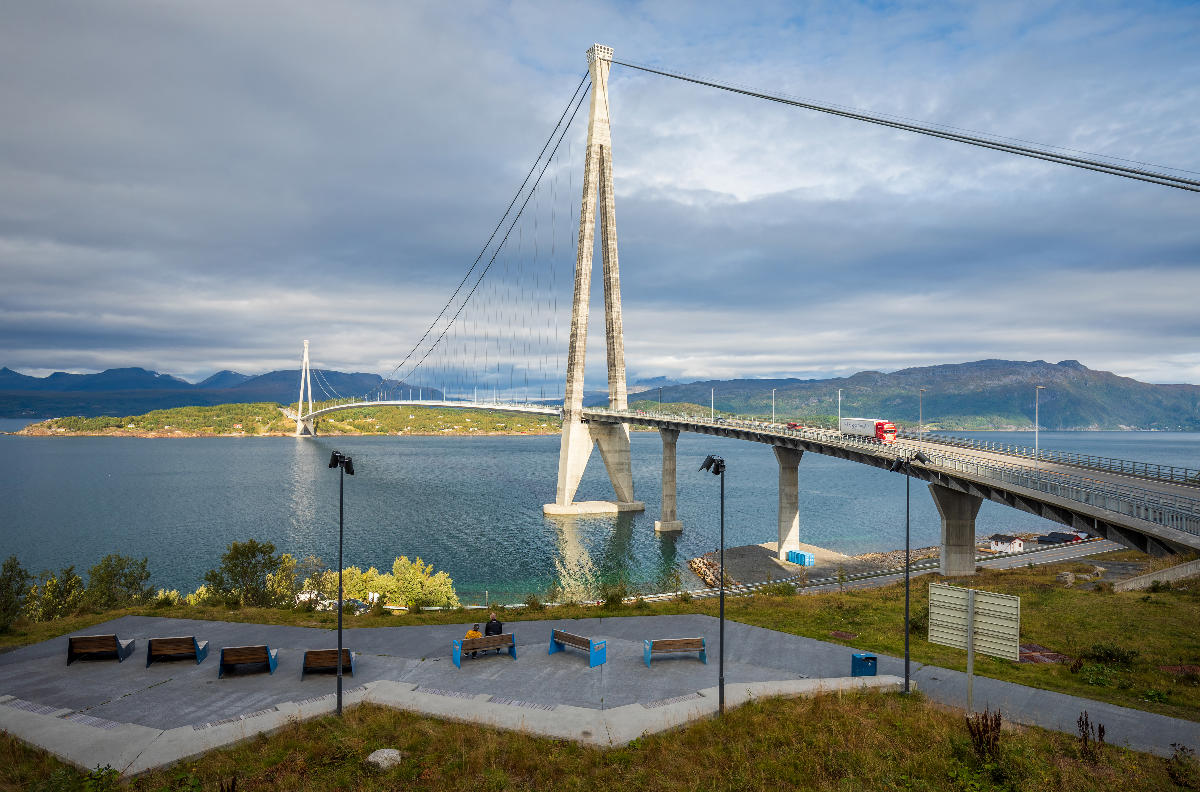

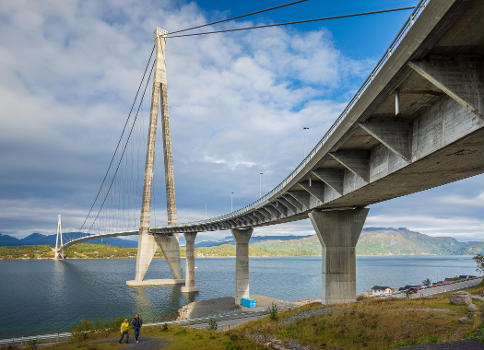

![Halogaland Bridge Narvik Norway : The Halogaland Bridge in Narvik Norway, are fantastic project. 175 metres high concrete pylons will raise above the sea. All concrete work for building the bridge are made by NCC. http://www.ncc.no/prosjekter/halogalandsbrua [2015]](https://files.structurae.net/files/350high/video/368778.jpg)
General Information
| Name in local language: | Hålogalandsbrua |
|---|---|
| Beginning of works: | 18 February 2013 |
| Completion: | 9 December 2018 |
| Status: | in use |
Project Type
| Structure: |
Single-span two-tower suspension bridge |
|---|---|
| Function / usage: |
Motorway bridge / freeway bridge |
| Material: |
Steel bridge Structurae Plus/Pro - Subscribe Now! |
| Secondary structure(s): |
Structurae Plus/Pro - Subscribe Now! |
| Material: |
Structurae Plus/Pro - Subscribe Now! |
Location
| Location: |
Narvik, Nordland, Norway |
|---|---|
| Coordinates: | 68° 27' 58.38" N 17° 28' 55.41" E |
| Coordinates: | 68° 27' 8.94" N 17° 28' 46.14" E |
Technical Information
Dimensions
| total length | 1 533 m | |
| approach viaducts | ||
|---|---|---|
| deck | width | 15.4 m |
| main bridge | ||
| main span | 1 145 m | |
| deck | width | 18.6 m |
| roadway / carriageway width | 9.5 m | |
| walkway width | 3.5 m | |
| pylons | height | 179 m |
Materials
| piers |
reinforced concrete
|
|---|---|
| deck of main span |
steel
|
| pylons |
reinforced concrete
|
| deck of approach viaducts |
prestressed concrete
|
Case Studies and Applied Products
RESTON®STU – Shock Transmission Units
The mageba Shock Transmission Unit (STU) is designed to be connected between bridge structure components to form a rigid link under dynamic loads induced by forces such as vehicle braking and earthquakes. It can be used for strengthening ... [more]
TENSA®MODULAR LR & LR-LS – Modular expansion joints
Modular Expansion Joints can be constructed for any movements, from about 100 mm up to 2,000 mm and more. They allow movements in all 3 directions and rotations around all 3 axes.
[more]Participants
Design
Architecture
Expansion joints
Relevant Web Sites
Relevant Publications
- (2019): Design and construction of the Hålogaland Bridge. In: ce/papers, v. 3, n. 3-4 (September 2019), pp. 103-108.
- (2008): Design Challenges for Hålogaland Bridge, Norway. Presented at: 17th IABSE Congress: Creating and Renewing Urban Structures – Tall Buildings, Bridges and Infrastructure, Chicago, USA, 17-19 September 2008, pp. 506-507.
- (2010): Great expectations. With spans getting longer, bridge designers are turning to new materials and deck designs to reduce dead loads and improve stability. In: Bridge Design & Engineering, v. 16, n. 58 (1st Quarter 2010), pp. 46-47.
- (2011): Hålogaland Bridge Cable Structures. Presented at: 35th Annual Symposium of IABSE / 52nd Annual Symposium of IASS / 6th International Conference on Space Structures: Taller, Longer, Lighter - Meeting growing demand with limited resources, London, United Kingdom, September 2011.
- (2021): Hålogaland Bridge—A Landmark in Arctic Norway. In: Structural Engineering International, v. 31, n. 4 (October 2021), pp. 1-7.
