General Information
| Other name(s): | Verrazano Narrows Bridge |
|---|---|
| Beginning of works: | 13 August 1959 |
| Completion: | 21 November 1964 |
| Status: | in use |
Project Type
| Structure: |

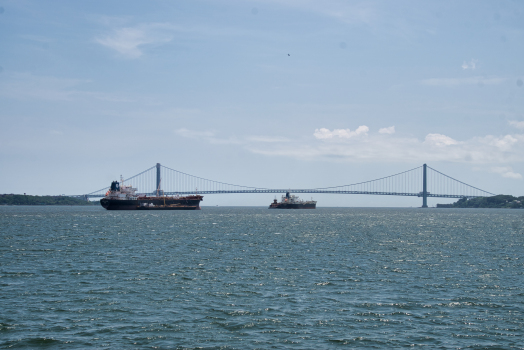

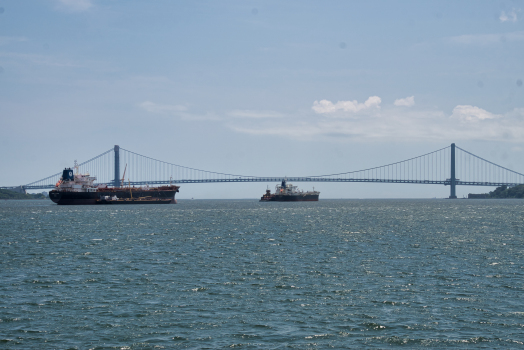

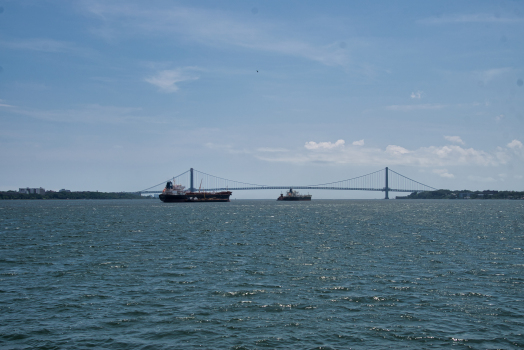

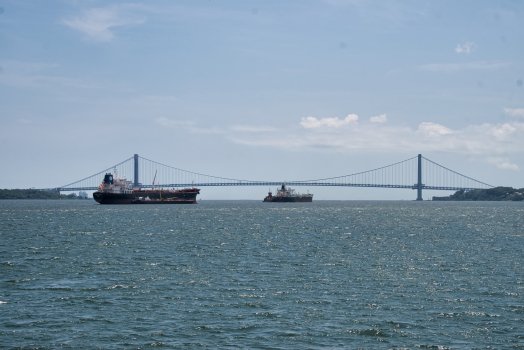

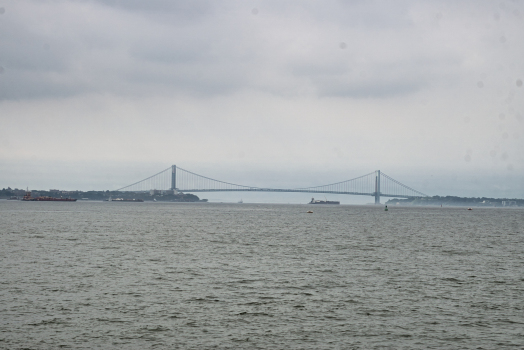

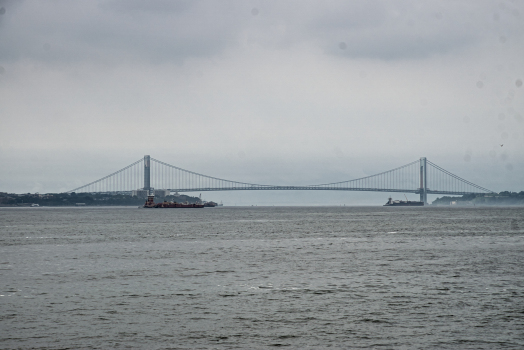

Three-span suspension bridge |
|---|---|
| Support conditions: |
for registered users |
| Secondary structure(s): |
Structurae Plus/Pro - Subscribe Now! |
| Function / usage: |
Motorway bridge / freeway bridge |
| Material: |
Steel bridge Structurae Plus/Pro - Subscribe Now! |
| Construction method: |
Structurae Plus/Pro - Subscribe Now! |
Awards and Distinctions
| 1965 |
special prize
for registered users |
|---|
Location
| Location: |
Staten Island, New York, New York, USA Bay Ridge, Brooklyn, New York, New York, USA |
|---|---|
| Crosses: |
|
| Coordinates: | 40° 36' 14.57" N 74° 3' 9.26" W |
| Coordinates: | 40° 36' 30.75" N 74° 2' 17.54" W |
Technical Information
Dimensions
| number of lanes | 12 | |
| roadway / carriageway width | 4 x 11.27 m | |
| main bridge | ||
|---|---|---|
| main span | 1 298.45 m | |
| span lengths | 370.33 m - 1 298.45 m - 370.33 m | |
| number of cables | 4 | |
| suspended length | 1 600 m | |
| number of spans | 3 | |
| vertical navigation clearance | 66 m | |
| pylons | height | 207 m |
Quantities
| structural steel | 144 000 t |
Materials
| cables |
steel
|
|---|---|
| pylons |
steel
|
| deck truss |
steel
|
| anchorages |
reinforced concrete
|
Case Studies and Applied Products
TENSA®FINGER GF – Sliding Finger joints
The mageba GF Sliding Finger Construction is a robust Finger Expansion Joint for high requirements with regard to moveability (up to 1,000 mm), riding comfort and durability.
[more]Chronology
| 21 November 1964 | The upper level is opened to traffic. |
|---|---|
| 28 June 1969 | The lower level is opened to traffic. |
Notes
The main span of the Verrazano Narrows Bridge is so long, that the curvature of Earth's surface had to be taken into account in the design of the towers.
Participants
Design
-
Ammann & Whitney
- Othmar Ammann (senior partner)
- Milton Brumer (chief engineer)
- Herb Rothman (project engineer)
- Frank L. Stahl (project engineer)
- Leopold H. Just (design engineer)
- John W. Kinney (engineer of construction)
Contractor
- American Bridge Company (deck)
- Arthur Johnson (anchorages)
- Bethlehem Steel Co. (Staten Island Tower)
- Frederick Snare Corp (tower foundations)
- Harris Structural Steel Co. Inc. (Brooklyn Tower)
- J. Rich Steers (tower foundations)
- Peter Kiewit Sons', Inc. (anchorages)
Cables
Expansion joint replacement (2015)
Expansion joints
