General Information

Name in local language: Sunnibergbrücke
Beginning of works: Spring 1996
Completion: Fall 1998
Status: in use

Project Type

Structure: Extradosed bridge
Support conditions:
Function / usage: Road bridge
Material: Prestressed concrete bridge
Plan view: Structurae Plus
Construction method: Balanced cantilever method

Awards and Distinctions

Location

Location: , ,
Coordinates: 46° 53' 9" N    9° 51' 23" E
Show coordinates on a map

Technical Information

Dimensions

total length 526.00 m
longest span 140.00 m
span lengths 59.00 m - 128.00 m - 140.00 m - 134.00 m - 65.00 m
horizontal radius of curvature 503.00 m
bridge surface 6 510 m²
height above valley floor or water 50 - 60 m
deck deck width 12.378 m
pylons pylon height max. 77 m
dimensions at base 8.80 m × 4.25 m

Quantities

structural steel 240 t
concrete volume 8 500 m³
prestressing steel 50 t
reinforcing steel 1 250 t

Cost

cost of construction Swiss Franc 17 000 000

Materials

cables steel
deck prestressed concrete
piers reinforced concrete
abutments reinforced concrete

Excerpt from Wikipedia

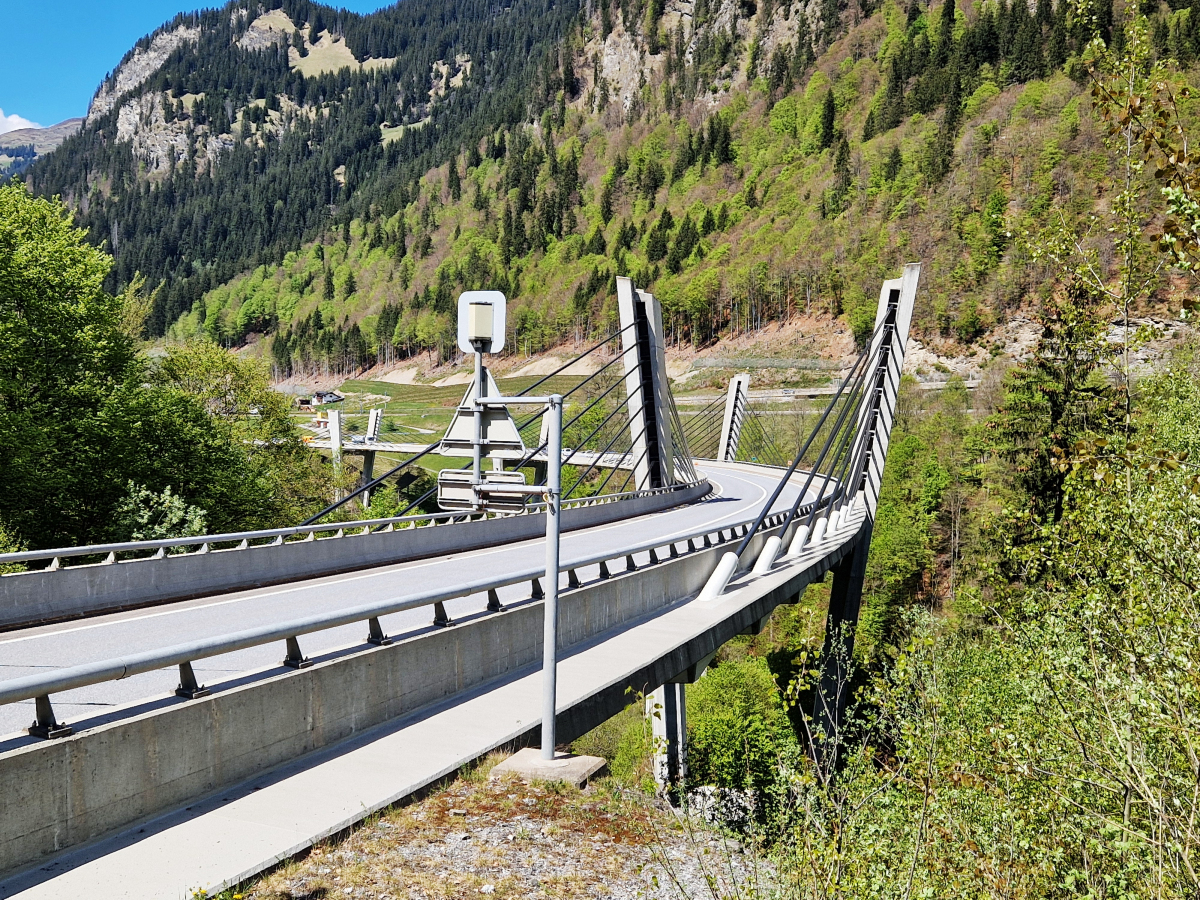

The Sunniberg Bridge is a curved multi-span extradosed road bridge with low outward-flaring pylons above the roadway edges, designed by Christian Menn and completed 1998. It carries the Klosters bypass road 28 across the Landquart River near the village of Klosters in the canton of Grisons in eastern Switzerland. It is notable because of its innovative design and aesthetically pleasing appearance sensitive to its surroundings.

Design

The bridge was designed by Christian Menn (conceptual design) together with Dialma Jakob Baenziger (final design) as a challenge of integrating the structural form of a curved multi-span extradosed bridge into the larger rural Alpine landscape, given the prominent location of the bridge in the Landquart valley, "but with a certain elegance".

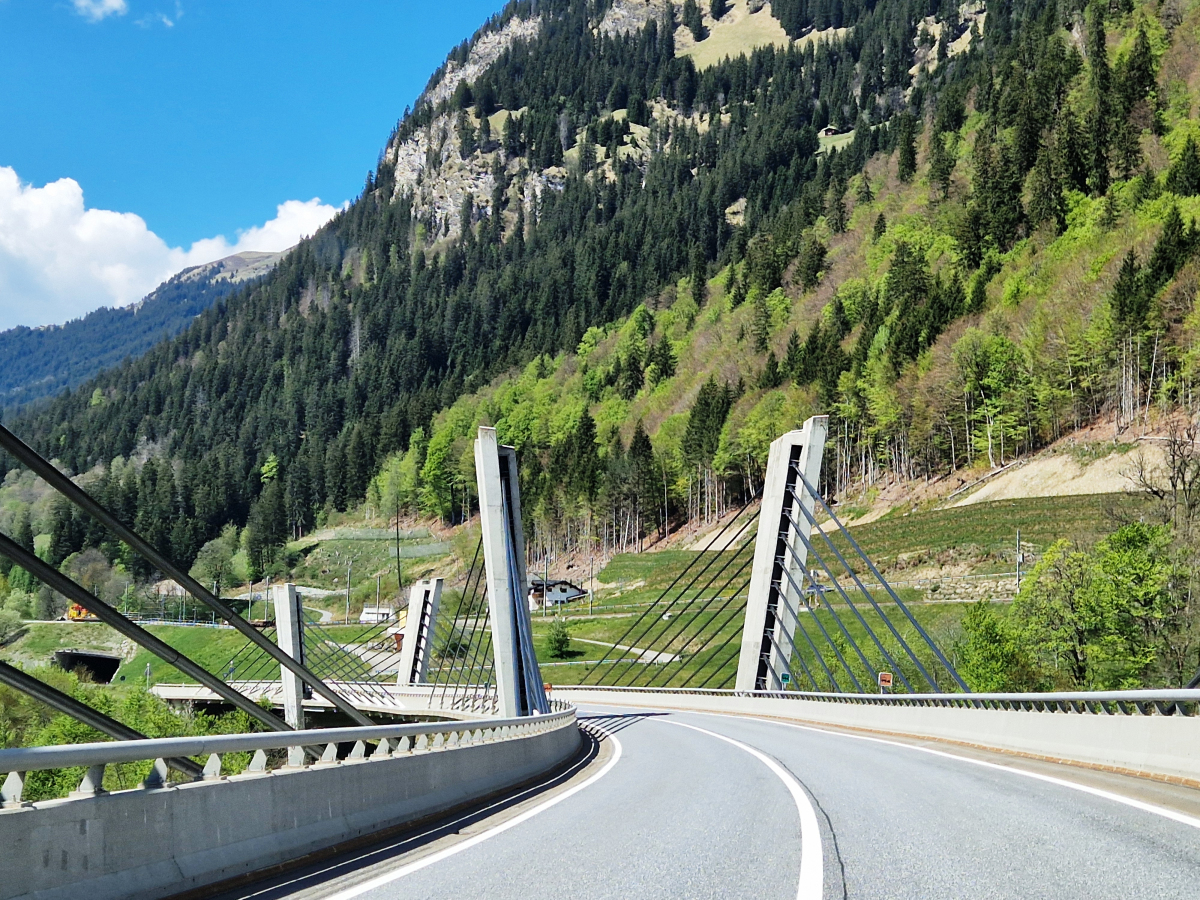

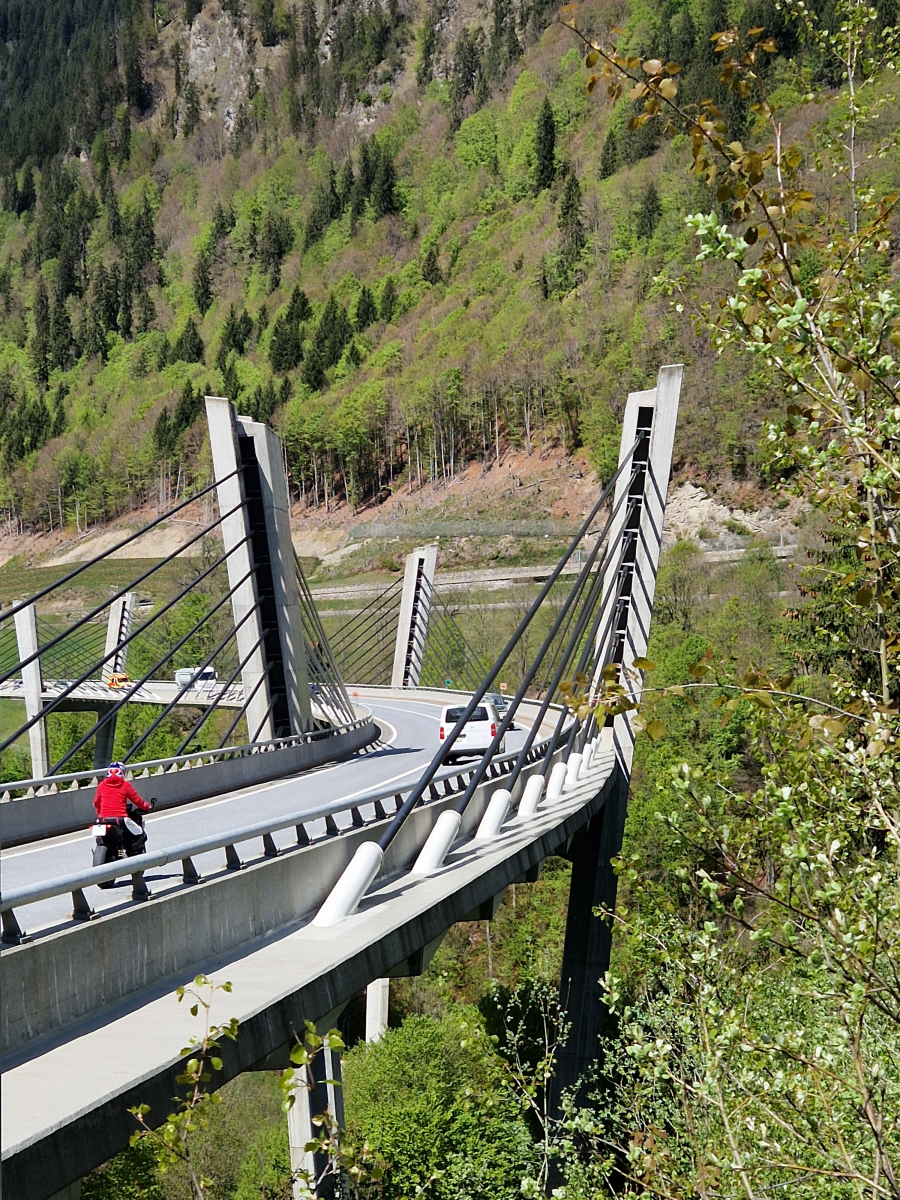

The Klosters bypass highway crosses the Landquart River valley on a 526 m (1,726 ft) long curving road bridge (horizontal radius of curvature about 500m) at a height of between 50 and 60m above the valley floor. Four slender H-shape piers rise up from the valley floor (8.80m × 4.25m at the base), like the tall trees nearby. Proceeding upwards, the arms of the tall piers/pylons flare out to subtend and sustain the 12.4 m (41 ft) wide curved and banked deck, nestling the roadway in their arms.

The bridge received the Outstanding Structure Award in 2001 for being "a delicate expression of structural art responding to a sensitive landscape.".

Construction

Construction started Spring 1996, by Batigroup AG and Vetsch AG, starting at the north end with pier P1, the pier closest to the Landquart to Klosters road. Once the piers were completed, the deck were erected using the balanced cantilever method. The bridge was completed ahead of schedule in Fall 1998.

The completed bridge was not opened for traffic because the Gotschna Tunnel, to which the south end of the bridge was connected, was still under construction. Instead, it was used only to access the excavation sites for the tunnel in the interim, until 2005 when the Klosters bypass, including both the bridge and the tunnel, was opened for traffic in a ceremony with Prince Charles, a frequent visitor to Klosters.

Critique

In the 2009 International Award of Merit to engineer/designer Christian Menn, his Sunniberg Bridge, along with his Ganter Bridge, his Leonard P. Zakim Bunker Hill Memorial Bridge as well as others, were singled out as being renown "worldwide for their structural beauty, economic efficiency, technical innovation, and for simply being structural engineering oeuvres of art."

From a 2015 Structural Engineering International retrospective, "The Impact of the Sunniberg Bridge on Structural Engineering, Switzerland", the following points can be made about the impact of the Sunniberg Bridge:

  • It was a favorite among structural engineers, ranked no. 5 among most favorite structure published from 1991 to 2000.
  • It helped establish "extradosed bridge" as a new and distinct bridge type.
  • It is a curved multi-span extradosed road bridge, which is uncommon.
  • It is an integral bridge, i.e., it has neither joints nor bearings at their ends, but the girder is rigidly connected to the abutments; thus it is easier to maintain.
  • It shows that concrete can be used to build slender structures with elegance.

The Sunniberg Bridge has become an icon of Swiss engineering, standing for high performance, quality and elegance, perception of structural engineering, an object inspiring admiration,...
