General Information
Project Type
Structure: |
Box girder bridge |
---|---|
Function / usage: |
Motorway bridge / freeway bridge |
Material: |
Steel-reinforced concrete composite bridge |
Location
Location: |
Siebenlehn, Großschirma, Mittelsachsen, Saxony, Germany |
---|---|
Crosses: |
|
Carries: |
|
Part of: | |
Replaces: |
Siebenlehn Bridge (1936)
|
Coordinates: | 51° 2' 14.30" N 13° 18' 57.47" E |
Technical Information
Dimensions
total length | 413.10 m | |
span lengths | 2 x 71.40 m - 81.60 m - 71.40 m - 61.20 m - 56.10 m | |
number of spans | 6 |
Materials
superstructure |
composite steel-reinforced concrete
|
---|
Notes

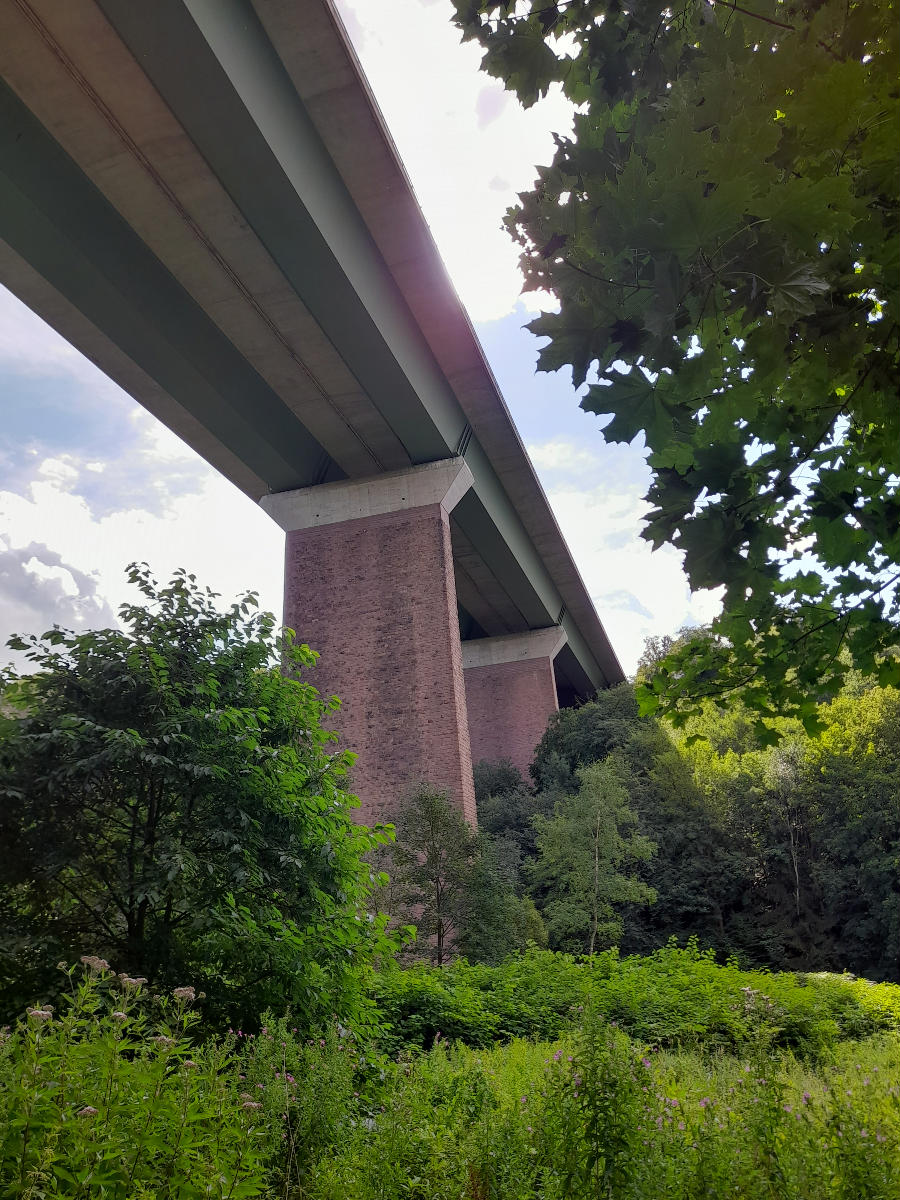

Built on the existing substructure of the previous bridge of 1936.
Participants
Owner
Client
Original design
Structural engineering
Co-contractor
Bearing installation
(role unknown)
Relevant Web Sites
There currently are no relevant websites listed.
Relevant Publications
- Entwurf und Ausführung der Autobahnbrücke Siebenlehn. Presented at: 6. Dresdner Brückenbausymposium, Dresden, 14. März 1996. (1996):
- Entwurf und Ausschreibung der Autobahnbrücke Siebenlehn. In: Beton- und Stahlbetonbau, v. 92, n. 2 (February 1997), pp. 29-36. (1997):
- Planung und Ausführung von in Längsrichtung nicht vorgespannten Betonfahrbahnplatten für die Stahlverbundbrücken Siebenlehn und Wilkau-Haßlau. In: Beton- und Stahlbetonbau, v. 91, n. 4 (April 1996), pp. 80-85. (1996):
