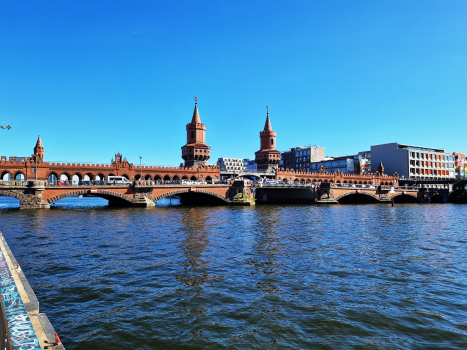

Oberbaum Bridge

General Information

Name in local language: Oberbaumbrücke
Beginning of works: 1894
Completion: 1896
Status: in use

Project Type

Structure: Segmental arch bridge
upper deck:
Deck arch bridge
lower deck:
Rigid frame bridge
Function / usage: upper deck:
Tramway, light or metro rail bridge
lower deck:
Road bridge
Material: Masonry bridge
upper deck:
Steel bridge
lower deck:
Steel bridge

Location

Location: , , ,
Crosses:
  • Spree River
Part of:
Coordinates: 52° 30' 6.00" N    13° 26' 45.00" E
Show coordinates on a map

Technical Information

Dimensions

main span 22.00 m
height 28 m
total length 124 m
total length 150.00 m
number of tracks 2
total width 27.90 m
towers height 34 m

Cost

Initial construction
cost of construction 2 000 000 Mark
Rehabilitation
cost of construction ca. German Mark 70 000 000

Materials

piers concrete
arches masonry
bascule span steel

Chronology

1992
- 1995

The bridge is refurbished and the main span of the elevated metro is replaced.

Advertisement

Participants

Initial construction (1894-1896)
Architecture
Engineering
Reconfiguration (1992-1995)
Owner
Design
Checking engineering
Co-contractor
