General Information
Project Type
Structure: |

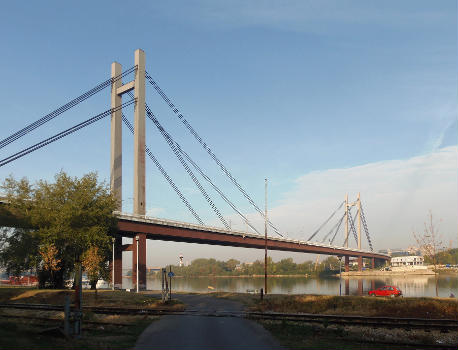

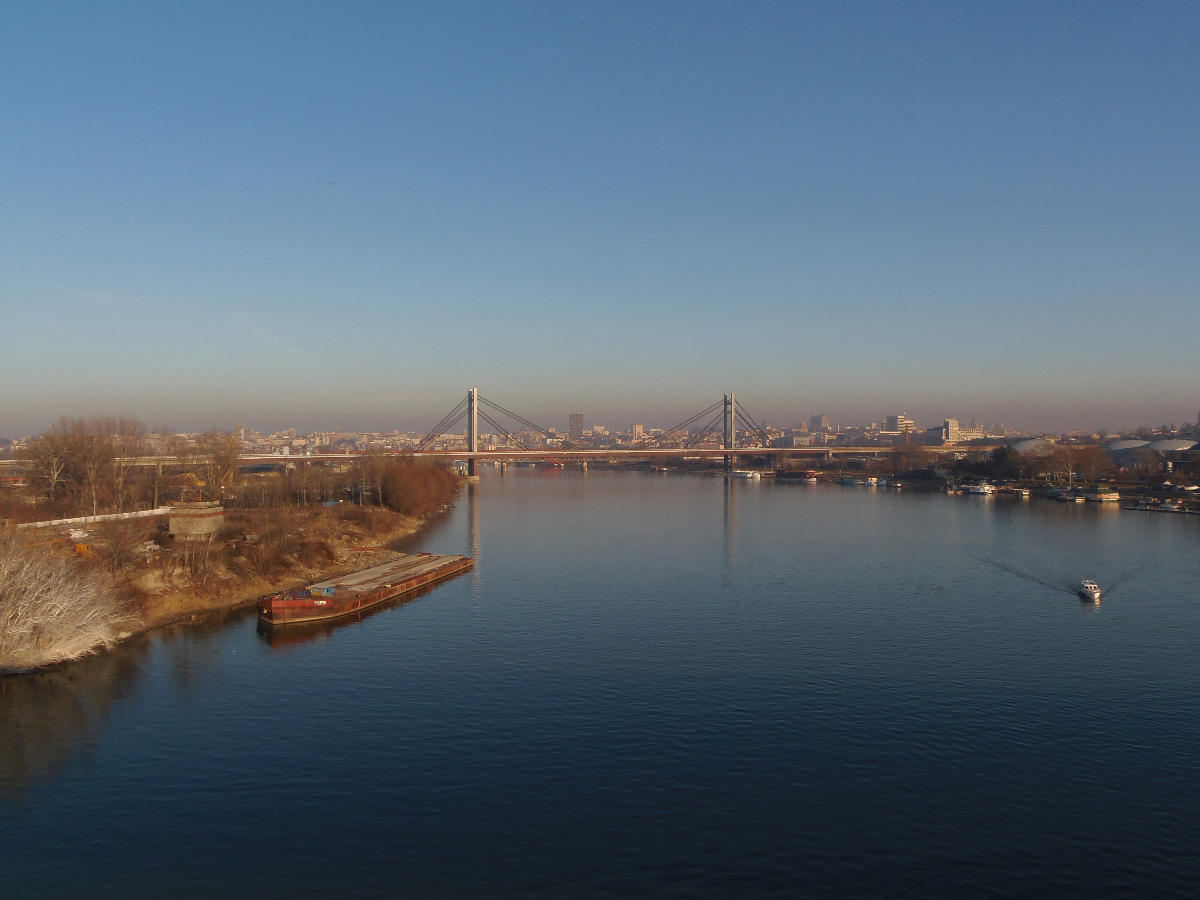

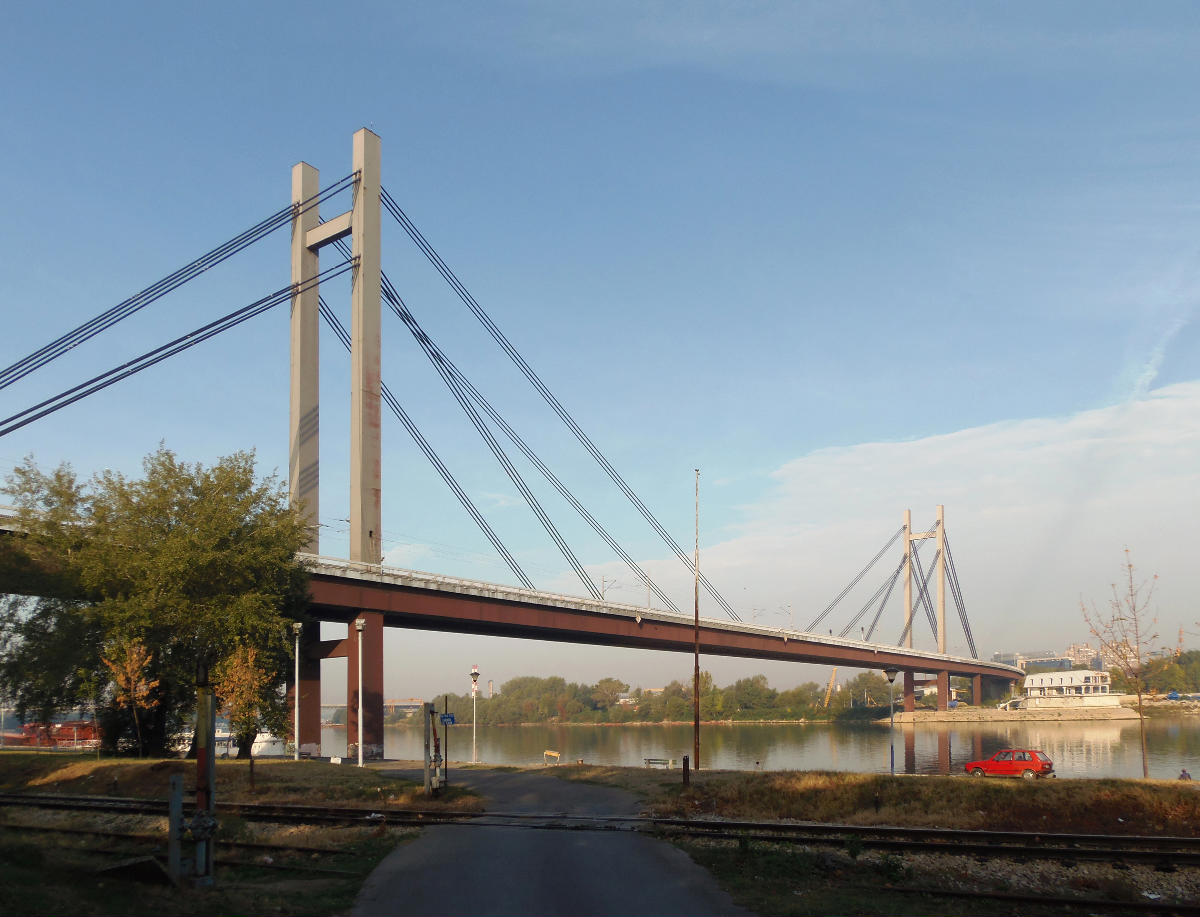

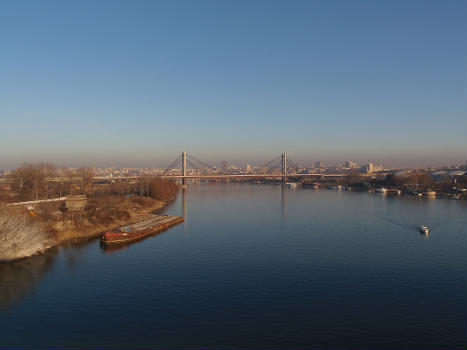

Cable-stayed bridge with semi-fan system |
---|---|
Function / usage: |
Railroad (railway) bridge |
Material: |
Steel bridge Structurae Plus/Pro - Subscribe Now! |
Secondary structure(s): |
Structurae Plus/Pro - Subscribe Now! |
Location
Technical Information
Dimensions
total length | 1 928 m | |
span lengths | 52.7 m - 85.0 m - 50.0 m - 254 m - 50.0 m - 64.2 m | |
number of spans | 6 | |

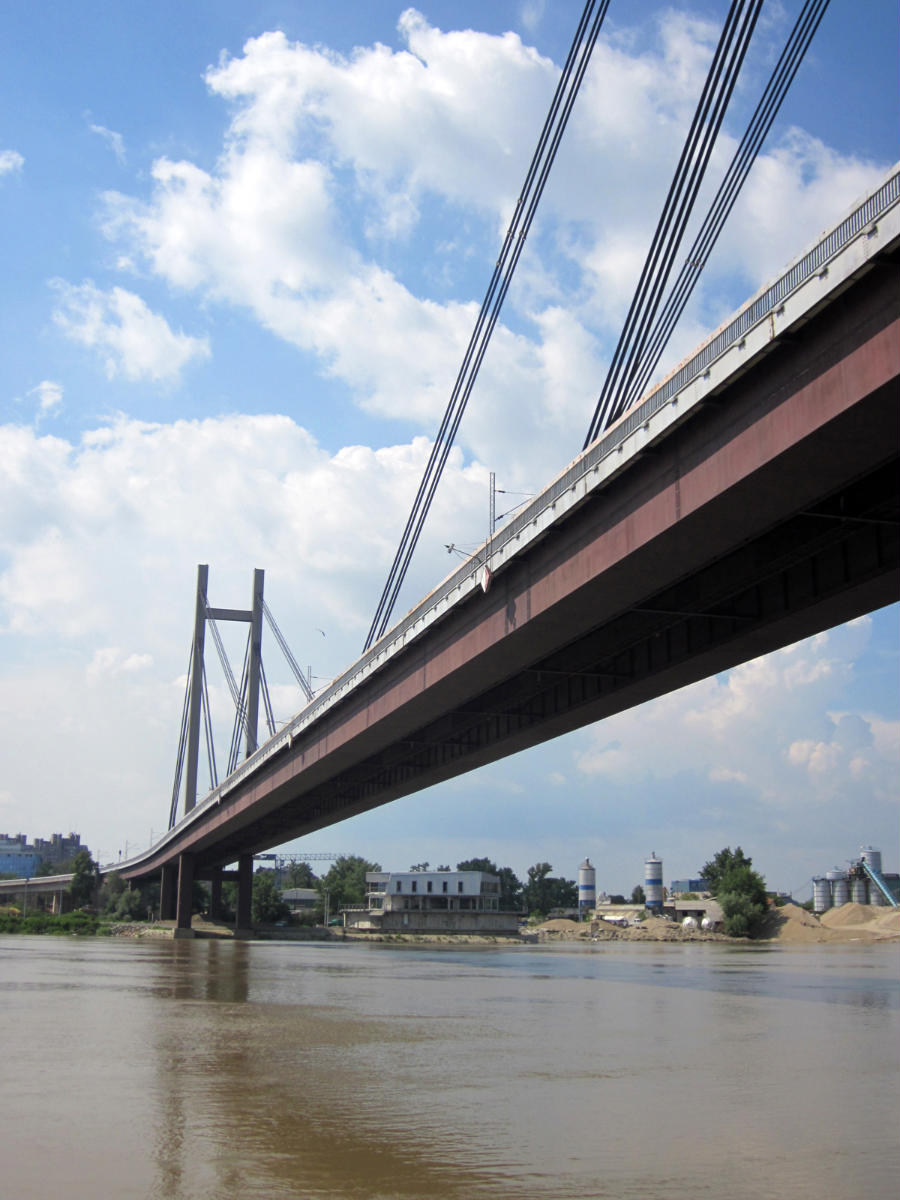

deck | deck depth | 4.50 m |

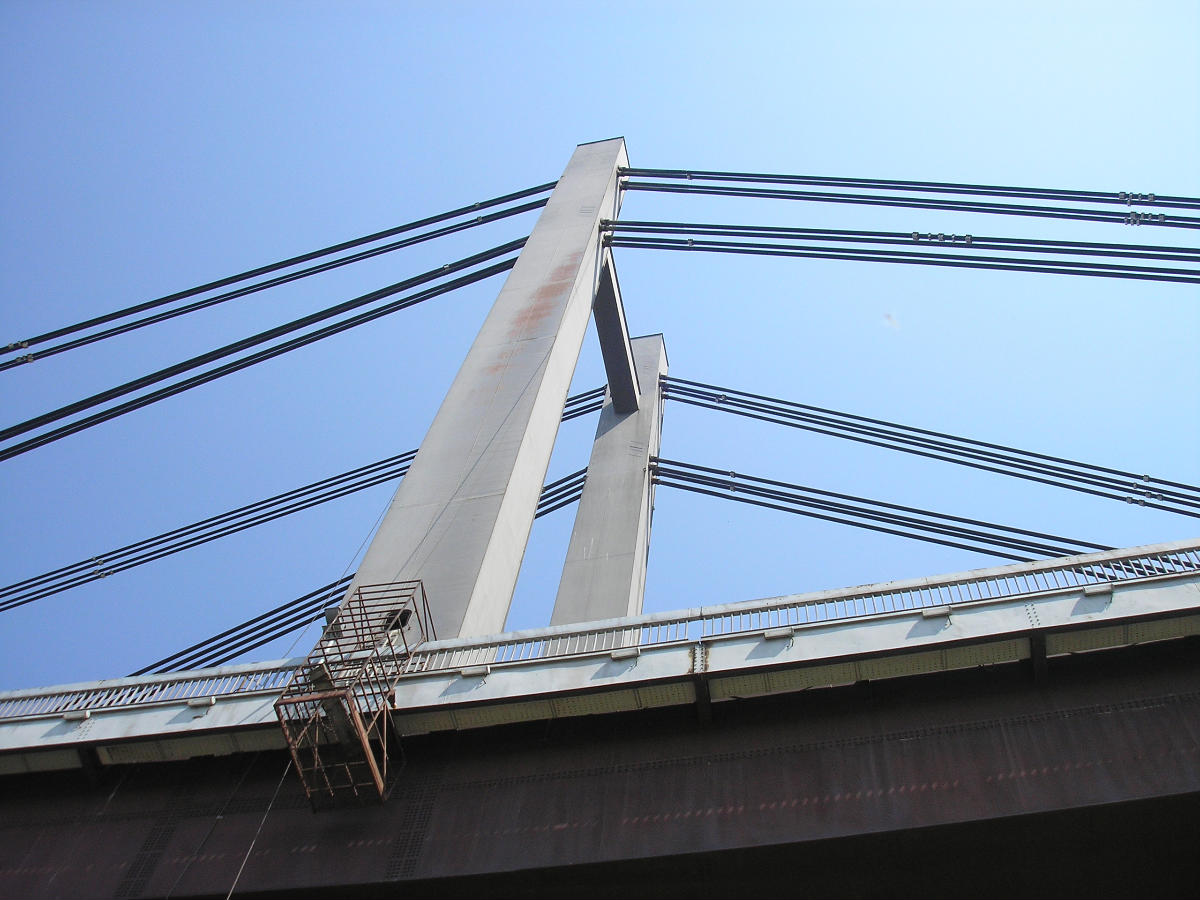

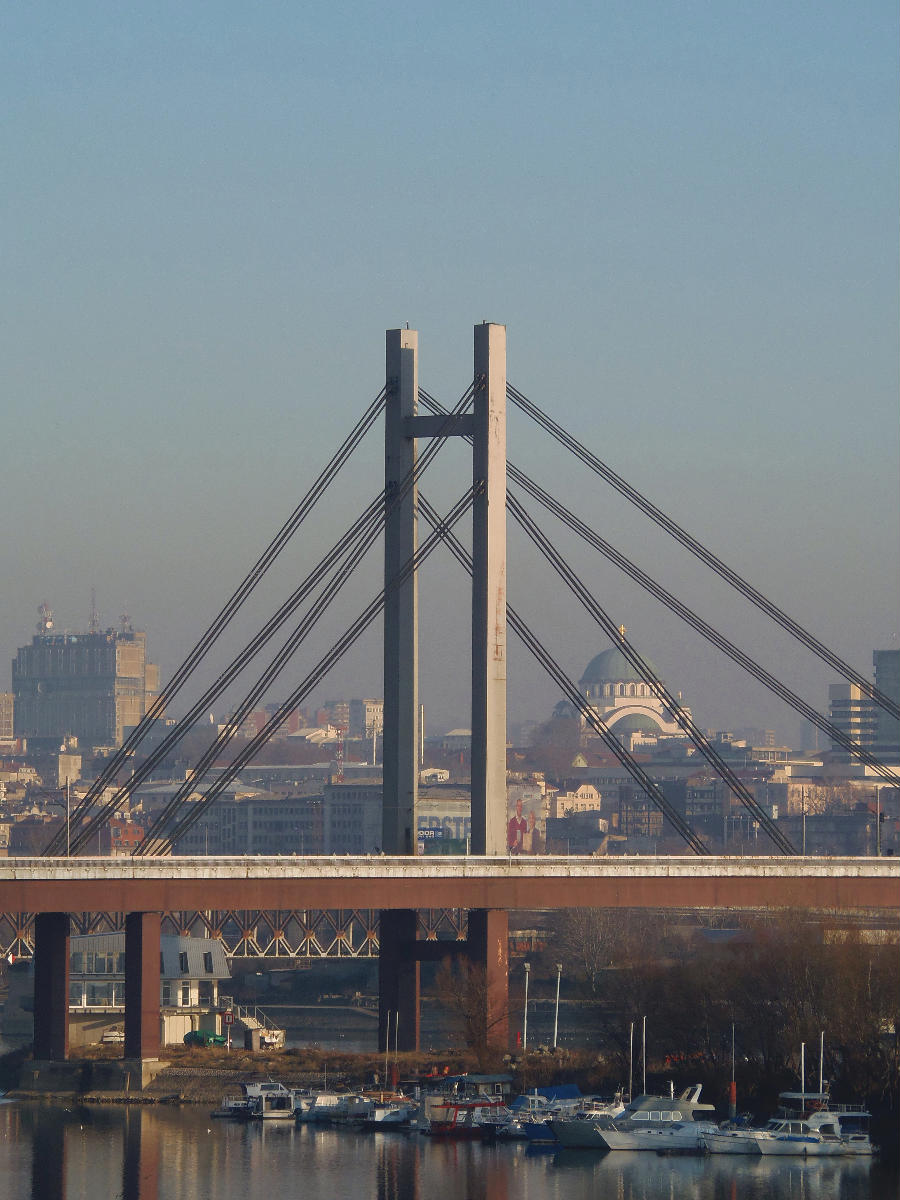

pylon | pylon height | 57.00 m |
main bridge | ||
---|---|---|
length | 557.94 m |
Materials
superstructure |
steel
|
---|---|
cables |
steel
|
pylons |
steel
|
Notes
First cable-stayed bridge built solely for railway traffic.
Participants
- Slobodan Cvetkovic (design engineer)
- V. Matic (design engineer)
Design
- Nikola Hajdin (designer)
- Ljubomir Jevtovic (designer)
General contractor
Steel construction
Subcontractor
Stay cables
Steel supplier
Relevant Web Sites
Relevant Publications
- Belgrade Bridges across the Danube and Sava River. Presented at: 3. Internationale Donaubrückenkonferenz, 3rd International Conference on Bridges across the Danube, 29-30/10/1998, Regensburg, Germany, pp. 358-372. (1998):
- Eisenbahnschrägseilbrücke über die Save in Belgrad. In: Stahlbau, v. 47, n. 4 (April 1978), pp. 97-106. (1978):
- Schrägseilbrücken. Wilhelm Ernst & Sohn Verlag für Architektur und technische Wissenschaften GmbH, Berlin (Germany), pp. 40. (1986):
