General Information
Project Type
| Structure: |

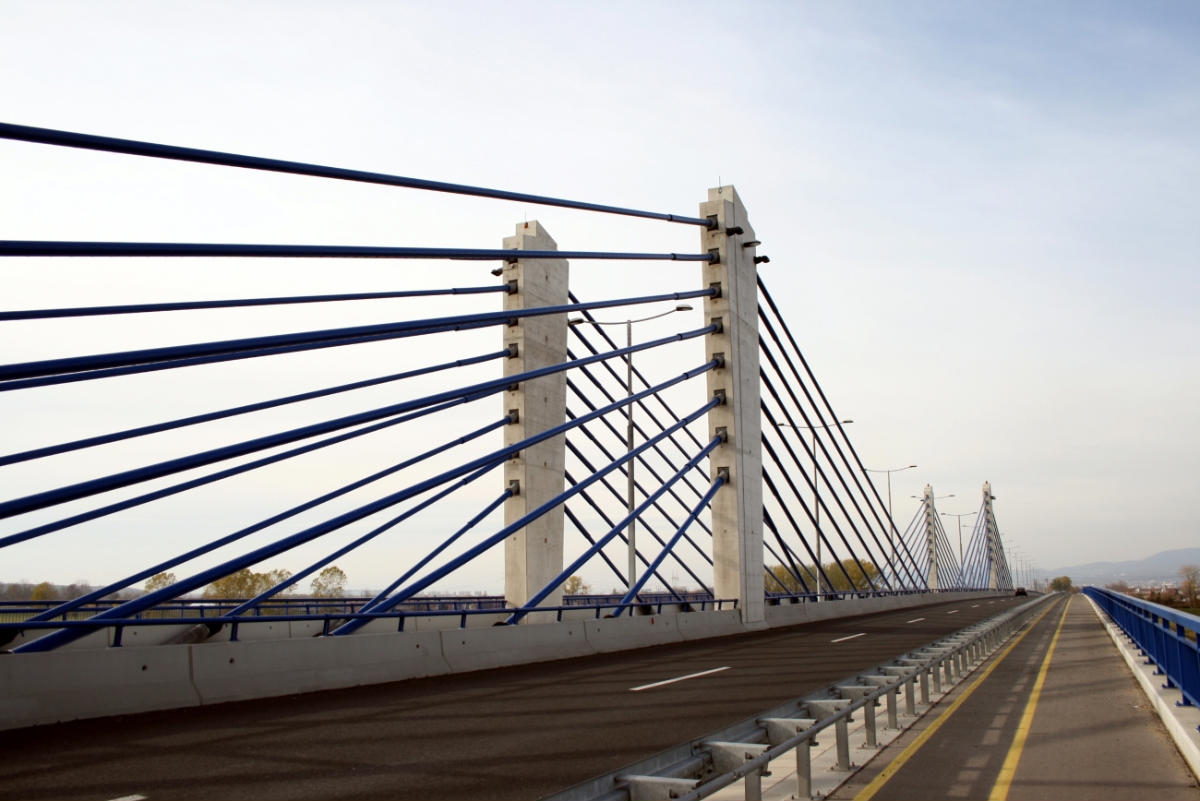

Three-span extradosed bridge |
|---|---|
| Function / usage: |
Road bridge |
| Material: |
Prestressed concrete bridge Structurae Plus/Pro - Subscribe Now! Structurae Plus/Pro - Subscribe Now! |
Location
Technical Information
Dimensions
| total length | 840 m | |
| span lengths | 48 m - 6 x 60 m - 72 m - 120 m - 72 m - 2 x 60 m - 48 m | |
| number of spans | 13 | |
| deck | deck depth | 3.55 m |
| deck width | 33.50 m | |
| pylons | pylon height | 16.50 m |
Materials
| deck |
prestressed concrete
|
|---|---|
| piers |
reinforced concrete
|
| abutments |
reinforced concrete
|
Case Studies and Applied Products
TENSA®MODULAR LR & LR-LS – Modular expansion joints
Modular Expansion Joints can be constructed for any movements, from about 100 mm up to 2,000 mm and more. They allow movements in all 3 directions and rotations around all 3 axes.
[more]Chronology

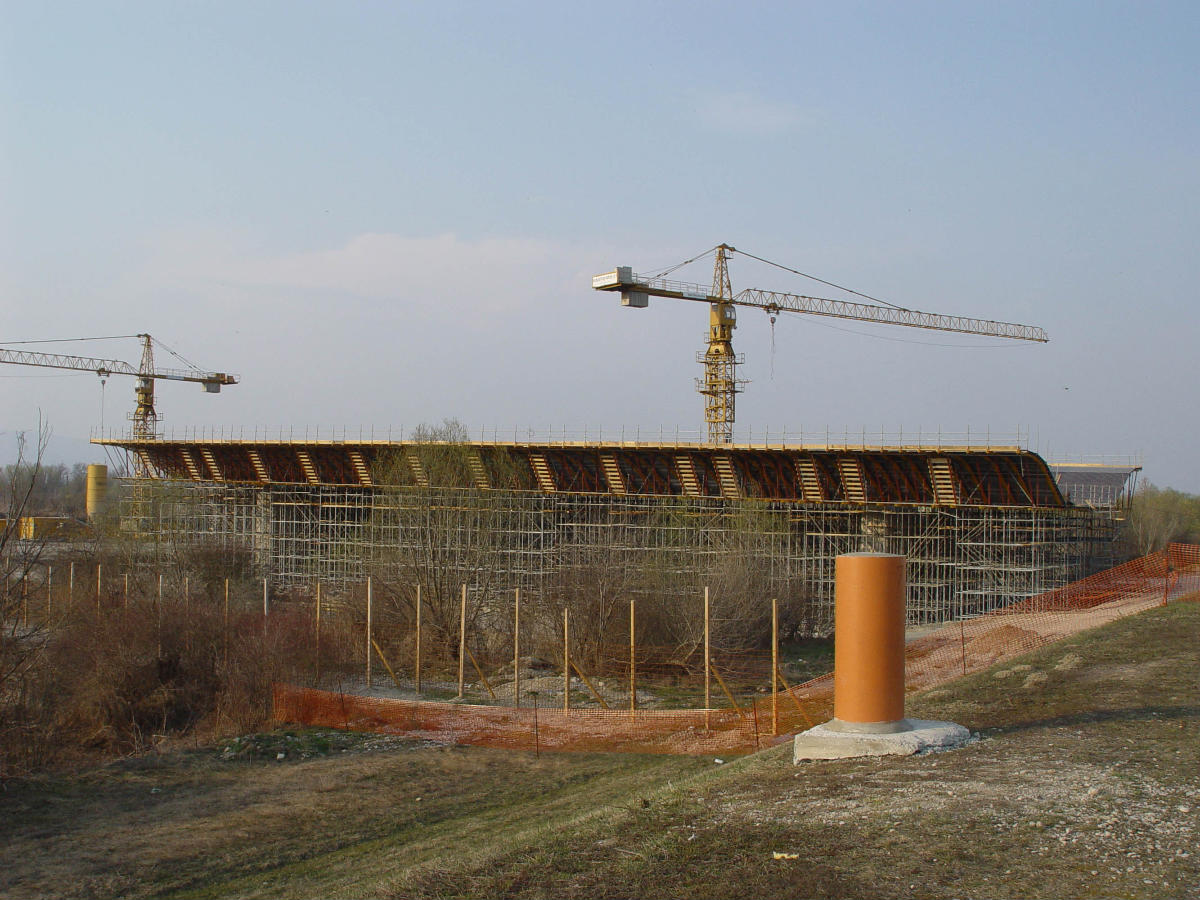

| August 2002 | Beginning of construction. |
|---|
Participants
Co-contractor
Prestressing
Expansion joints
Relevant Web Sites
There currently are no relevant websites listed.
Relevant Publications
- DYWIDAG Schrägseil- und Spannsysteme für Verkehrs- und Wasserrohrleitungsbrücke in Zagreb. “Domovinski Most” über den Fluss Sava, Zagreb, Kroatien. In: DSI Info, n. 14 ( 2006- 2007), pp. 24-25.
- DYWIDAG Stay Cable and Prestressing Systems incorporated into a pipeline Bridge in Zagreb. “Domovinski Most” over the River Sava, Zagreb, Croatia. In: DSI Info, n. 14 ( 2006- 2007), pp. 24.
- About this
data sheet - Structure-ID
20019985 - Published on:
12/03/2006 - Last updated on:
05/02/2016
