General Information
| Official designation: | 5614/61A |
|---|---|
| Beginning of works: | May 2007 |
| Completion: | December 2009 |
| Duration of works: | 31 months |
| Status: | in use |

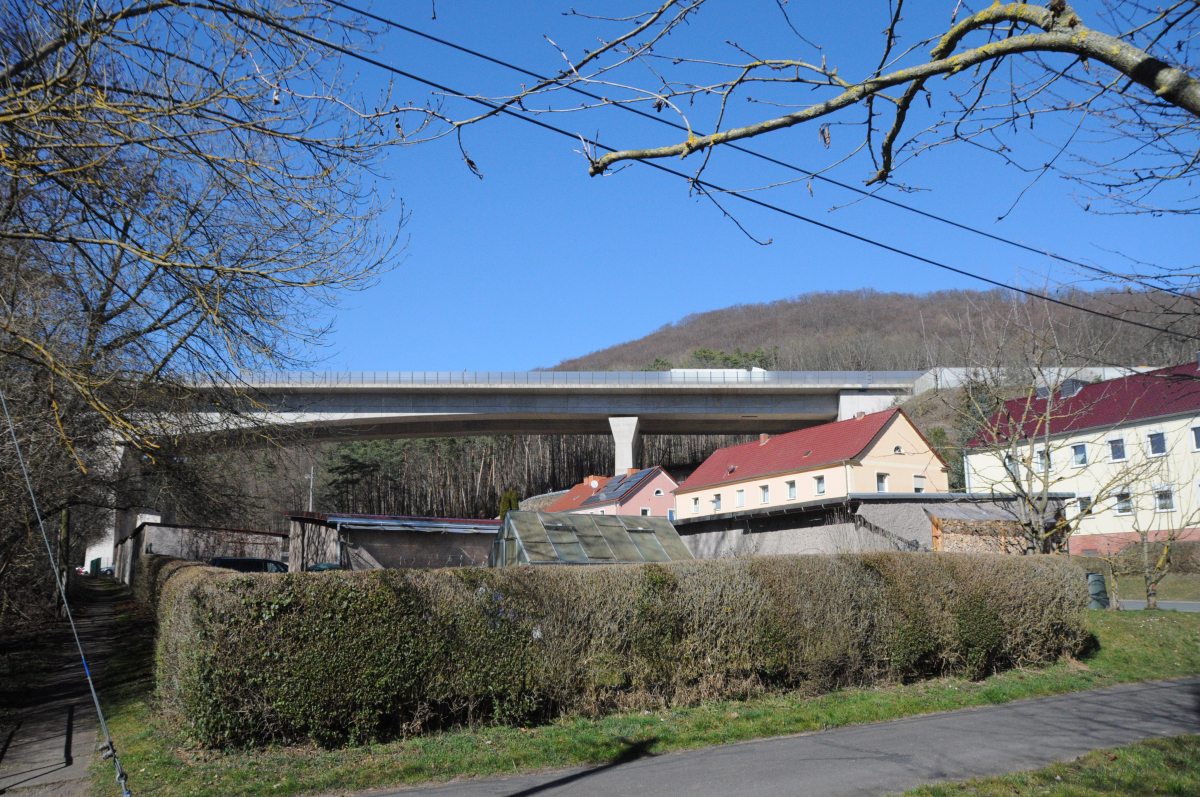

Project Type
| Function / usage: |
Motorway bridge / freeway bridge |

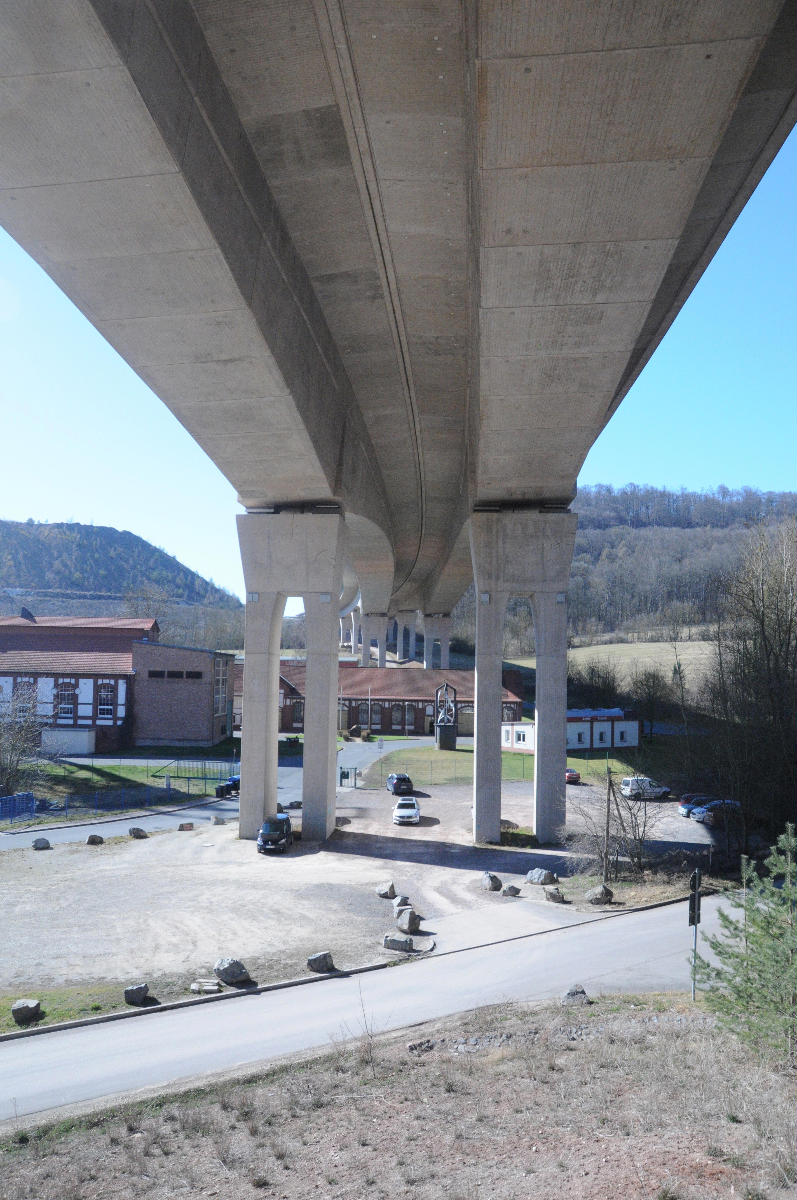

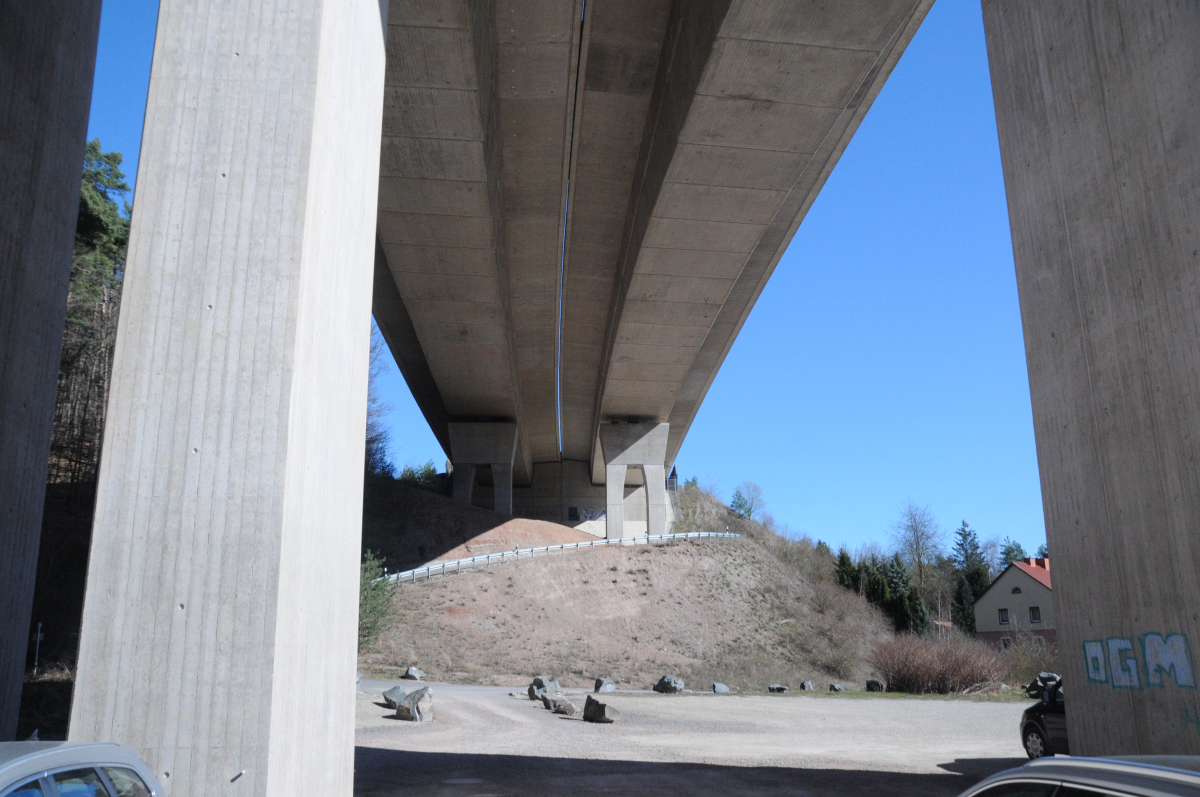

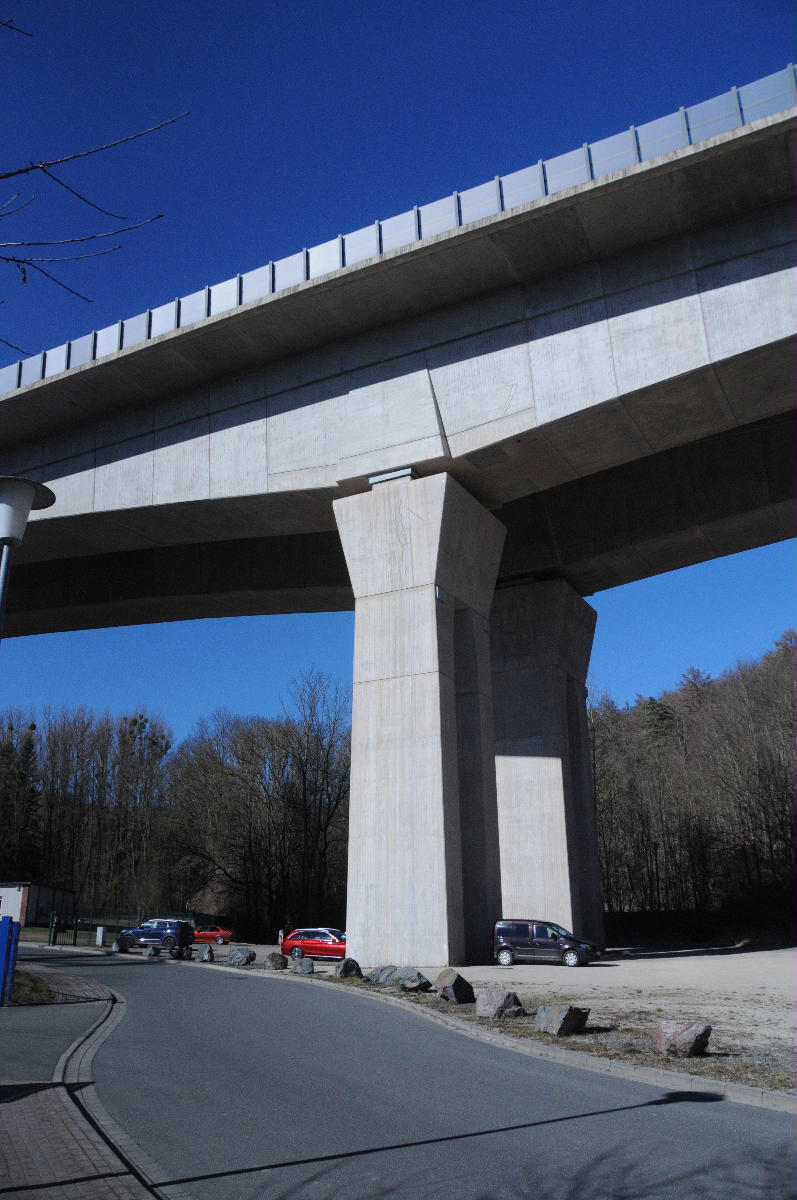

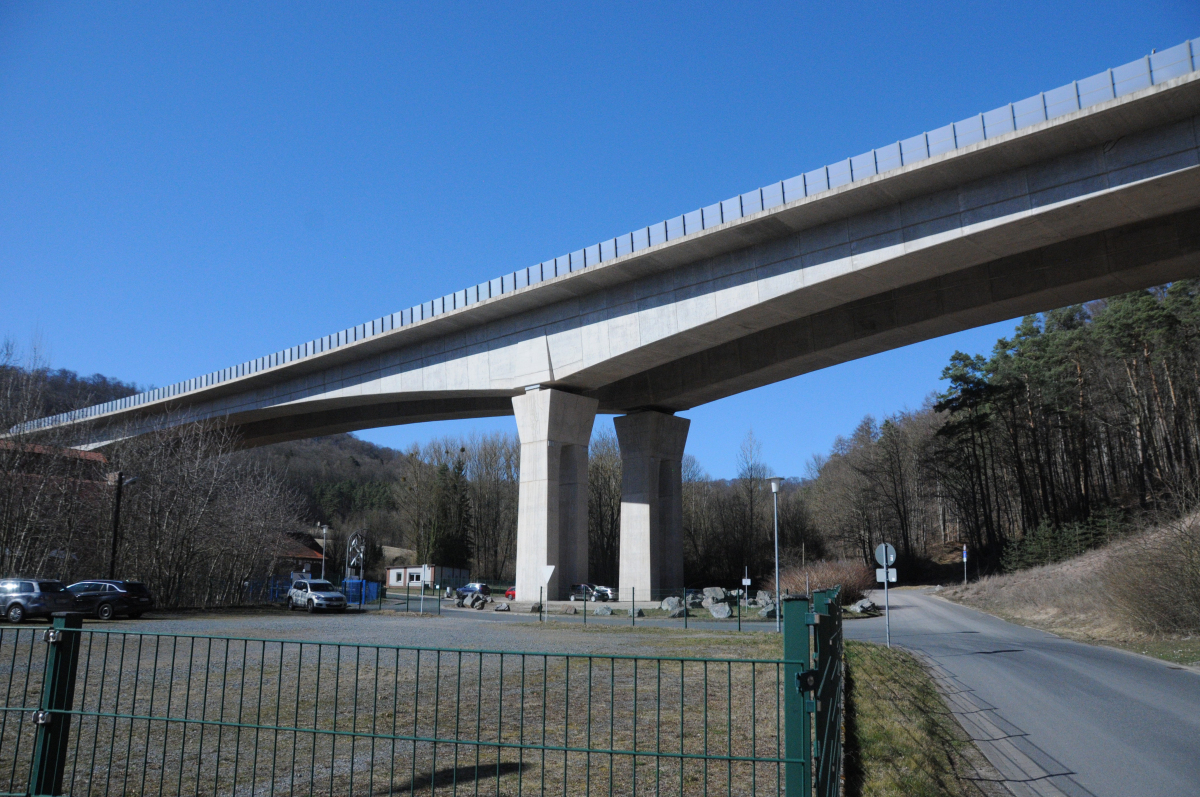

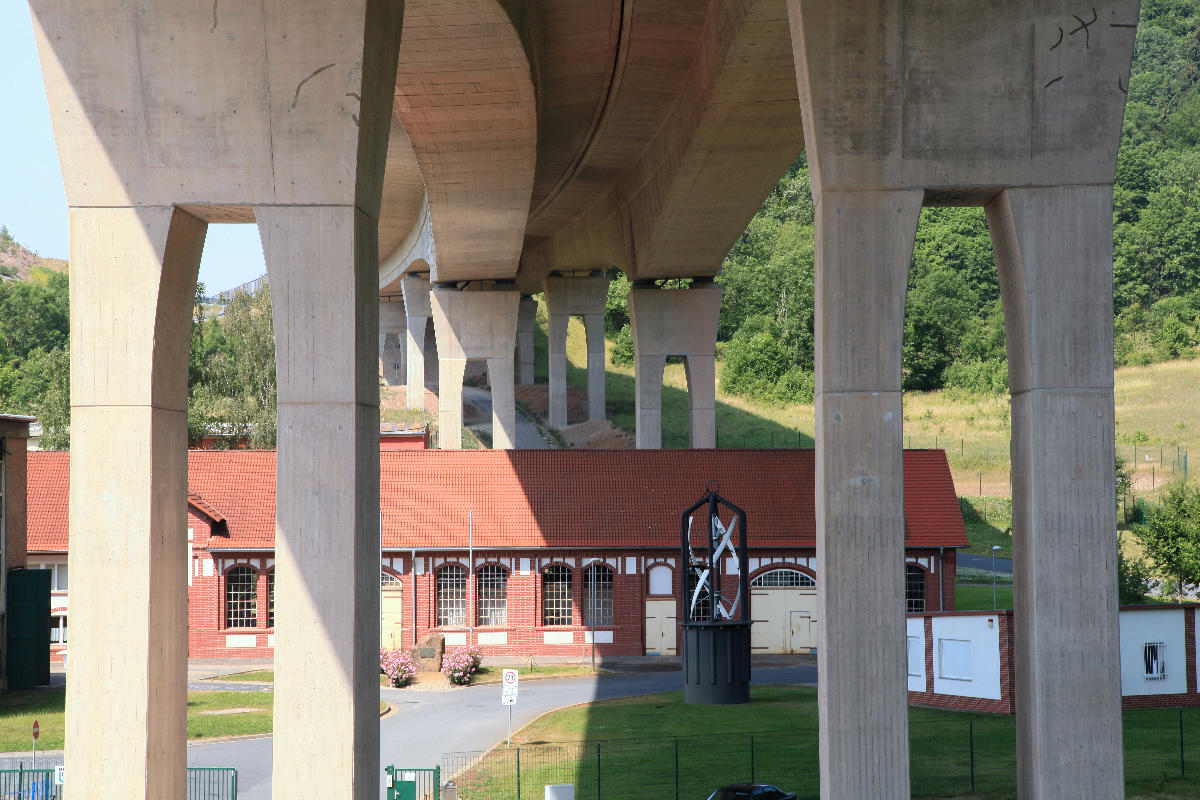

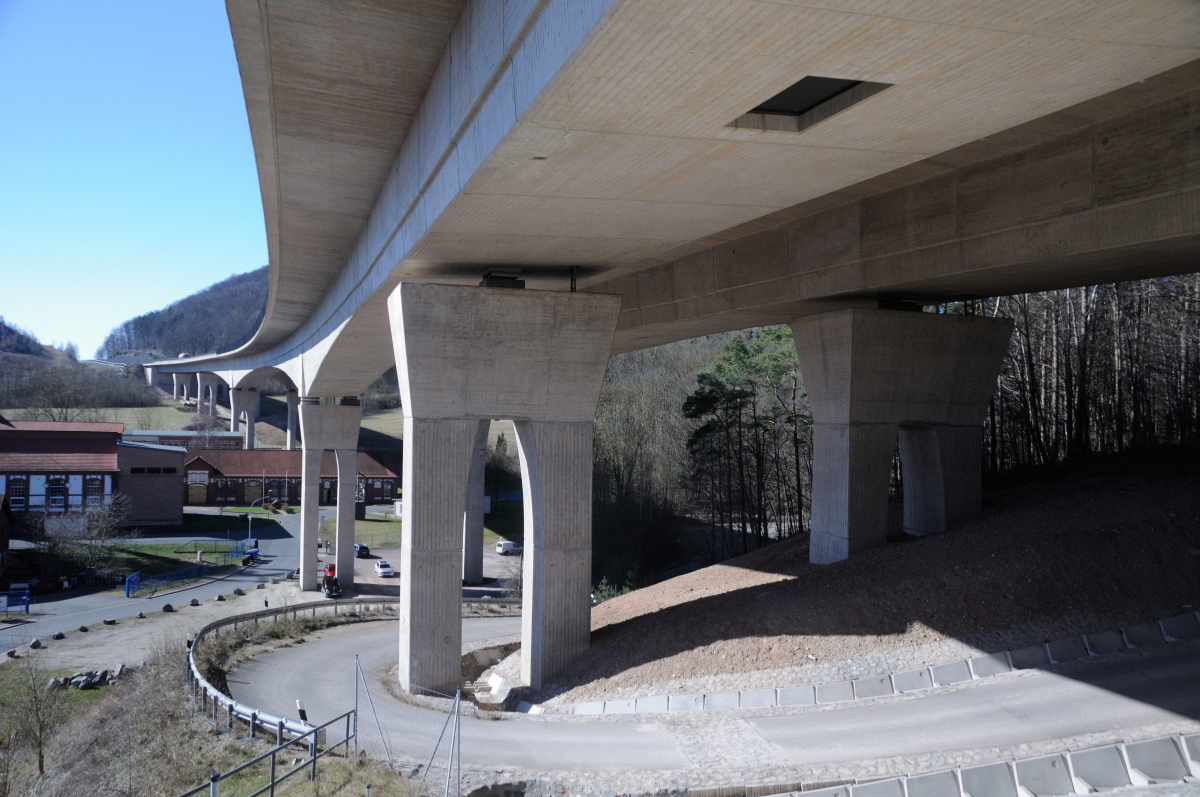

|---|---|
| Structure: |
Single-cell box girder bridge |
| Construction method: |
Balanced cantilever method |
| Material: |
Prestressed concrete bridge Structurae Plus/Pro - Subscribe Now! |
Location
| Location: |
Bleicherode, Nordhausen (Kreis), Thuringia, Germany Breitenworbis, Eichsfeld (Kreis), Thuringia, Germany |
|---|---|
| Carries: |
|
| Part of: | |
| Coordinates: | 51° 25' 23.36" N 10° 31' 32.27" E |
Technical Information
Dimensions
| total length | 485 m | |
| span lengths | 45.0 m - 65.0 m - 90.0 m - 165.0 m - 85.0 m - 35.0 m | |
| deck width | 29.50 m | |
| number of spans | 6 | |
| bridge surface | 14 308 m² |
Quantities
| concrete volume | 21 290 m² | |
| prestressing steel | 600 t | |
| reinforcing steel | 3 000 t |
Cost
| cost of construction | Euro 30 000 000 |
Materials
| deck |
prestressed concrete
|
|---|---|
| piers |
reinforced concrete
|
Participants
Owner
Client
Design
Structural engineering
Geotechnical/geological experts
Architectural consulting
- Hans-Günther Burkhardt (architectural consultant)
Checking engineering
- Reinhard Maurer (checking engineer)
General contractor
Subcontractor
Bearings
Expansion joints
Site supervision
Relevant Web Sites
There currently are no relevant websites listed.
Relevant Publications
- Brücken und Tunnel der Bundesfernstraßen 2010. Bundesministerium für Verkehr, Bau und Stadtentwicklung, Berlin (Germany), pp. 45-56.
- (2009): Großbrücken und ihre Herstellungsverfahren. Vier besondere Talquerungen als Beispiele. In: Brückenbau, v. 1, n. 4-1 ( 2009- 2010), pp. 56.
- SUSPA-DSI Gewebeschläuche XXL bei Gründung einer Brücke eingesetzt. In: DSI Info, n. 16 ( 2008- 2009), pp. 46-47.
