General Information
| Completion: | 1962 |
|---|---|
| Status: | in use |
Project Type

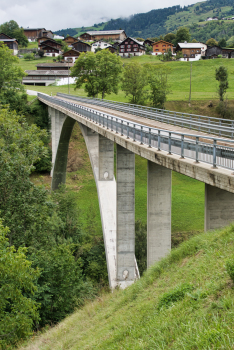

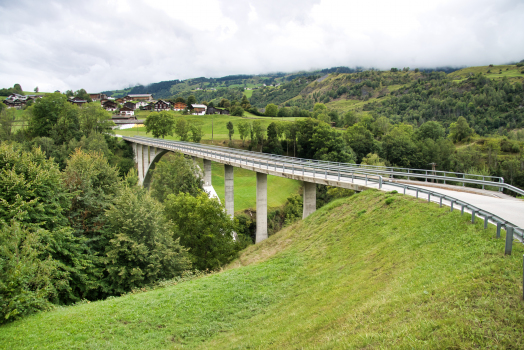

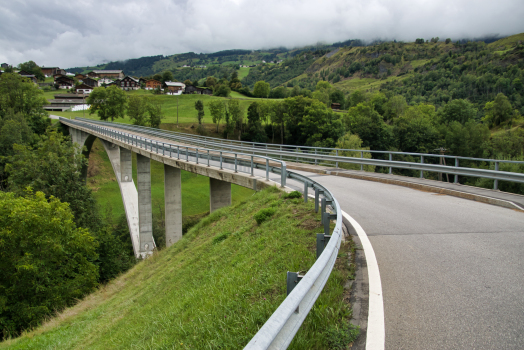

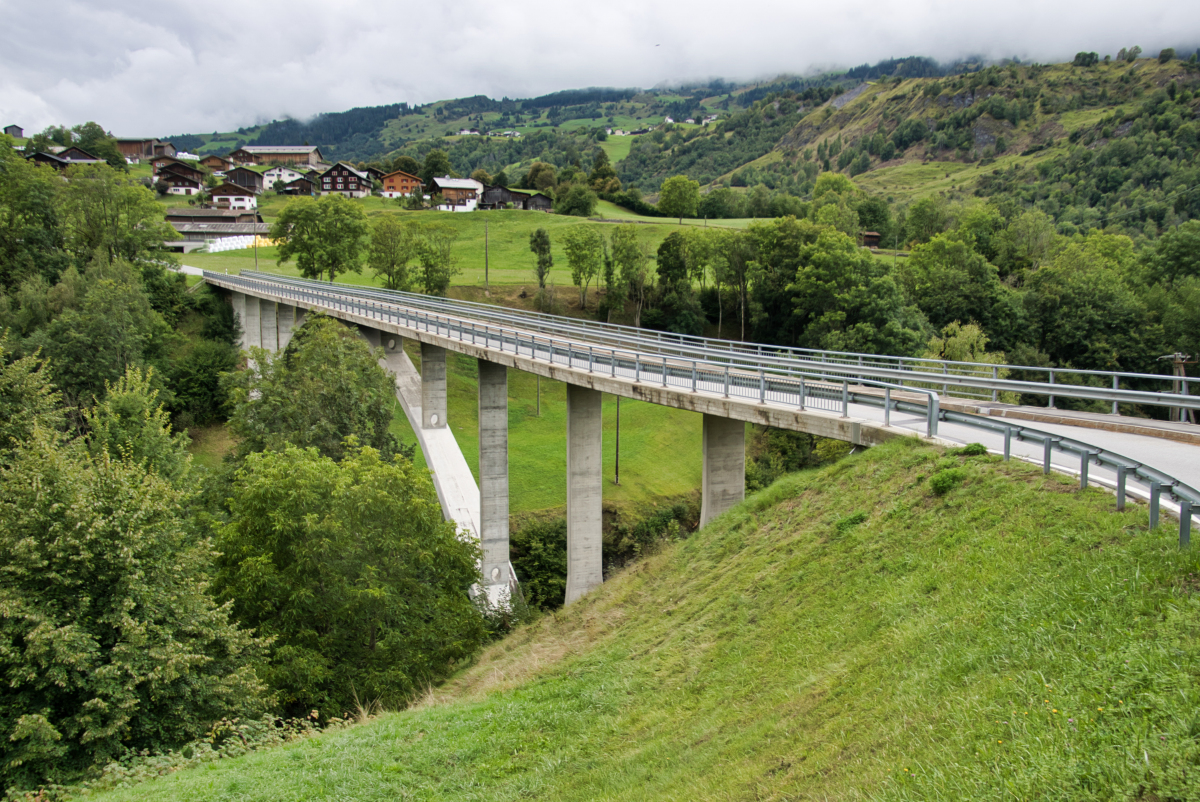

| Structure: |
Deck arch bridge |
|---|---|
| Material: |
Reinforced concrete bridge |
| Function / usage: |
Road bridge |
| Structure: |
deck: Single T-section girder bridge |
| Secondary structure(s): |
Structurae Plus/Pro - Subscribe Now! |
| Material: |
Structurae Plus/Pro - Subscribe Now! |
| Secondary structure(s): |
Structurae Plus/Pro - Subscribe Now! |
Location
| Location: |
Uors, Suraua, Grisons, Switzerland Surcasti, Suraua, Grisons, Switzerland |
|---|---|
| Address: | Via Principala |
| Coordinates: | 46° 41' 58.86" N 9° 10' 53.94" E |
Technical Information
Dimensions

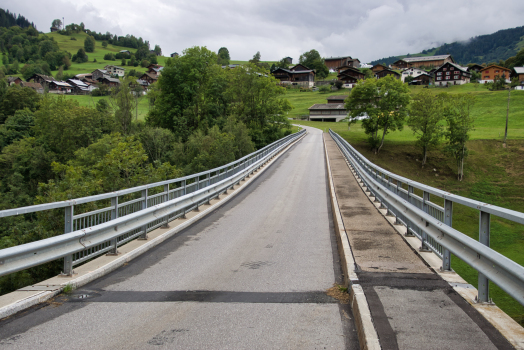

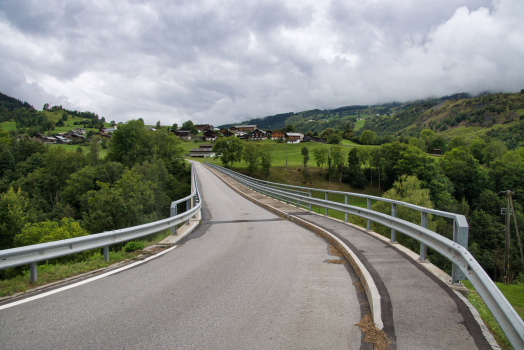

| rise | 20 m | |
| total length | 142.00 m | |
| roadway / carriageway width | 4.20 m | |
| arch | width | 2.00 - 3.00 m |
| arch span | 86.00 m | |
| arch thickness | 0.75 - 0.95 m | |
| deck | span lengths | 10.00 m - 2 x 12.00 m - 11.00 m - 10.00 m + 10.00 m - 11.00 m - 2 x 12.00 m - 10.00 m |
| deck width | 4.60 m | |
| number of spans | 2 x 5 | |
| girder depth | 0.50 m |
Materials
| deck |
reinforced concrete
|

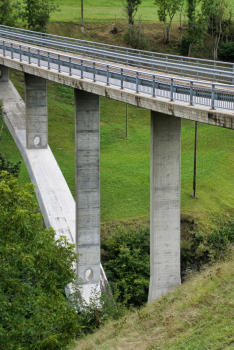

|---|---|
| piers |
reinforced concrete
|
| arch |
reinforced concrete
|
| abutments |
reinforced concrete
|
| springings |
reinforced concrete
|

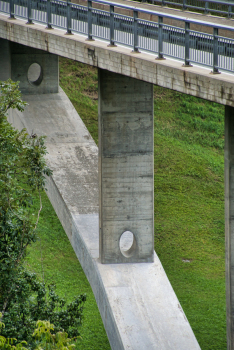

| piers on arch |
reinforced concrete
|
Participants
Design
- Christian Menn (designer)
Relevant Web Sites
There currently are no relevant websites listed.
Relevant Publications
- (1997): Christian Menn. Brückenbauer. Birkhäuser Verlag (Basel, Boston, Berlin), Basel (Switzerland), pp. 56.
- (2015): Christian Menn - Brücken / Bridges. Scheidegger & Spiess, Zurich (Switzerland), pp. 146-153.
