General Information
| Name in local language: | Fußgängerbrücke Kelheim |
|---|---|
| Beginning of works: | 1985 |
| Completion: | 1988 |
| Status: | in use |
Project Type
| Structure: |

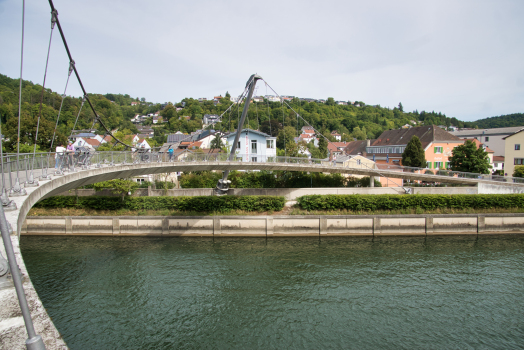

Mono-cable suspension bridge with curved deck |
|---|---|
| Function / usage: |
Pedestrian bridge (footbridge) |
| Material: |
Prestressed concrete bridge Structurae Plus/Pro - Subscribe Now! |
| Support conditions: |
for registered users |
| Secondary structure(s): |
Structurae Plus/Pro - Subscribe Now! Structurae Plus/Pro - Subscribe Now! |
| Plan view: |
Structurae Plus/Pro - Subscribe Now! |
| Deck levels: |
Structurae Plus/Pro - Subscribe Now! |
Location
| Location: |
Kelheim, Kelheim (Kreis), Bavaria, Germany |
|---|---|
| Crosses: |
|
| Part of: | |
| Coordinates: | 48° 55' 15.51" N 11° 52' 21.53" E |
Technical Information
Dimensions
| main span | 62 m | |
| total length | 92 m | |
| vertical navigation clearance | 7.6 m | |
| horizontal navigation clearance | 61.84 m | |
| cable | diameter | 0.090 m |

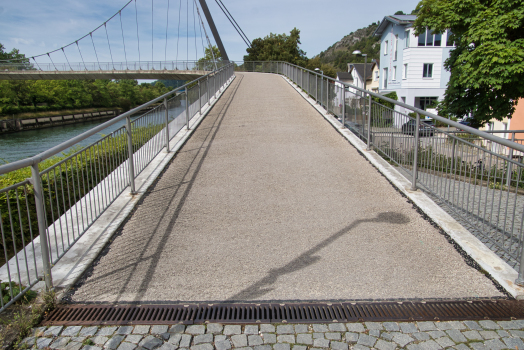

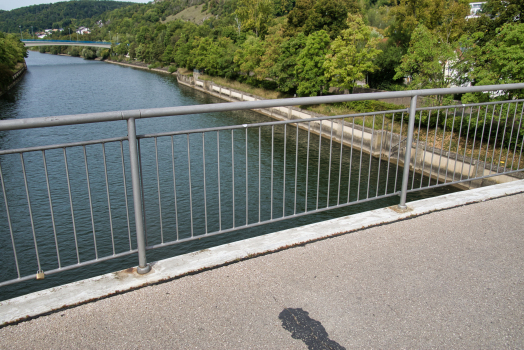

| deck | deck width | 4.18 m |

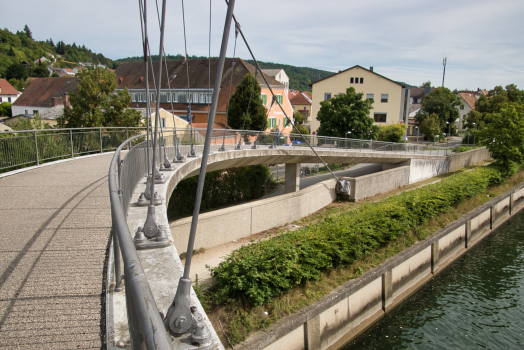

| hangers | diameter | 30 mm |
| on-center spacing between suspenders | 2.3 m | |
| number | 38 | |
| main span | horizontal radius of curvature | min. 37.79 m |

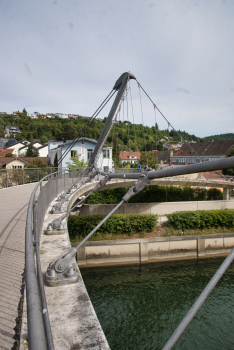

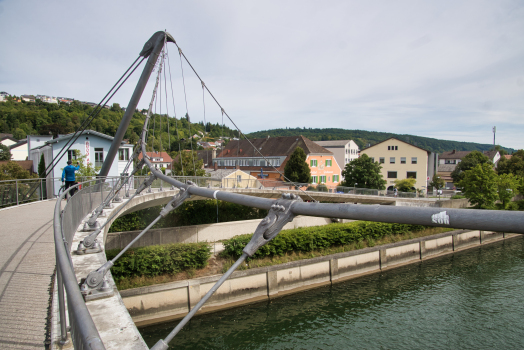

| pylons | diameter | 0.660 m |
| pylon height | 18 m | |

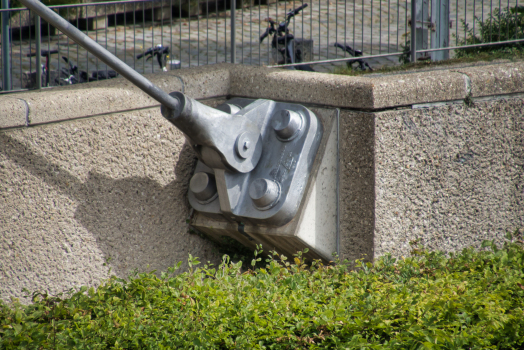

| stay cables | diameter | 0.117 m |
Materials
| cables |
steel wire
|
|---|---|
| pylons |
steel
|
| deck slab |
prestressed concrete
|
| stay cables |
steel wire
|
Participants
Owner
Architecture
Structural design
-
schlaich bergermann partner
- Jörg Schlaich (designer)
Structural engineering
Construction supervision
Relevant Web Sites
Relevant Publications
- (1998): Ackermann und Partner. Buildings and Projects / Bauten und Projekte 1978-1998. Prestel-Verlag, Munich (Germany), pp. 42-47.
- (2005): The design of curved cable-supported footbridges. Presented at: Footbridge 2005 (Second International Congress), Venezia, 06-08 December 2005.
- (2007): Fußgängerbrücken. Konstruktion, Gestalt, Geschichte. Birkhäuser, Basel (Switzerland), ISBN 978-3-7643-8138-7, pp. 108-109.
