Other name(s): | Victoria Bridge; Loch Oich Suspension Bridge |
---|---|
Completion: | 1849 |
Status: | in use |
Project Type
Structure: |
Chain suspension bridge Suspension bridge with cable-stays |
---|---|
Material: |
Iron bridge Structurae Plus/Pro - Subscribe Now! Structurae Plus/Pro - Subscribe Now! |
Function / usage: |
original use: Road bridge current use: Bicycle and pedestrian bridge |
Location
Location: |
Fort Augustus, Highland, Scotland, United Kingdom |
---|---|
Coordinates: | 57° 5' 36.15" N 4° 44' 42.97" W |
Technical Information
Dimensions
length | 47.40 m | |
on-axis distance between cables at top of towers | 5.20 m | |
pylon | height | 5.5 m |
Materials
piers |
stone
|
---|---|
chains |
wrought iron
|
pylons |
stone
|
deck flooring |
wood
|
Excerpt from Wikipedia
The Bridge of Oich (also known as Victoria Bridge, Aberchalder) is a taper principle suspension bridge, designed by James Dredge, across the River Oich near Aberchalder in Highland, Scotland. The bridge opened in 1854 and was used to take the main road traffic over the river until 1932.
Overview

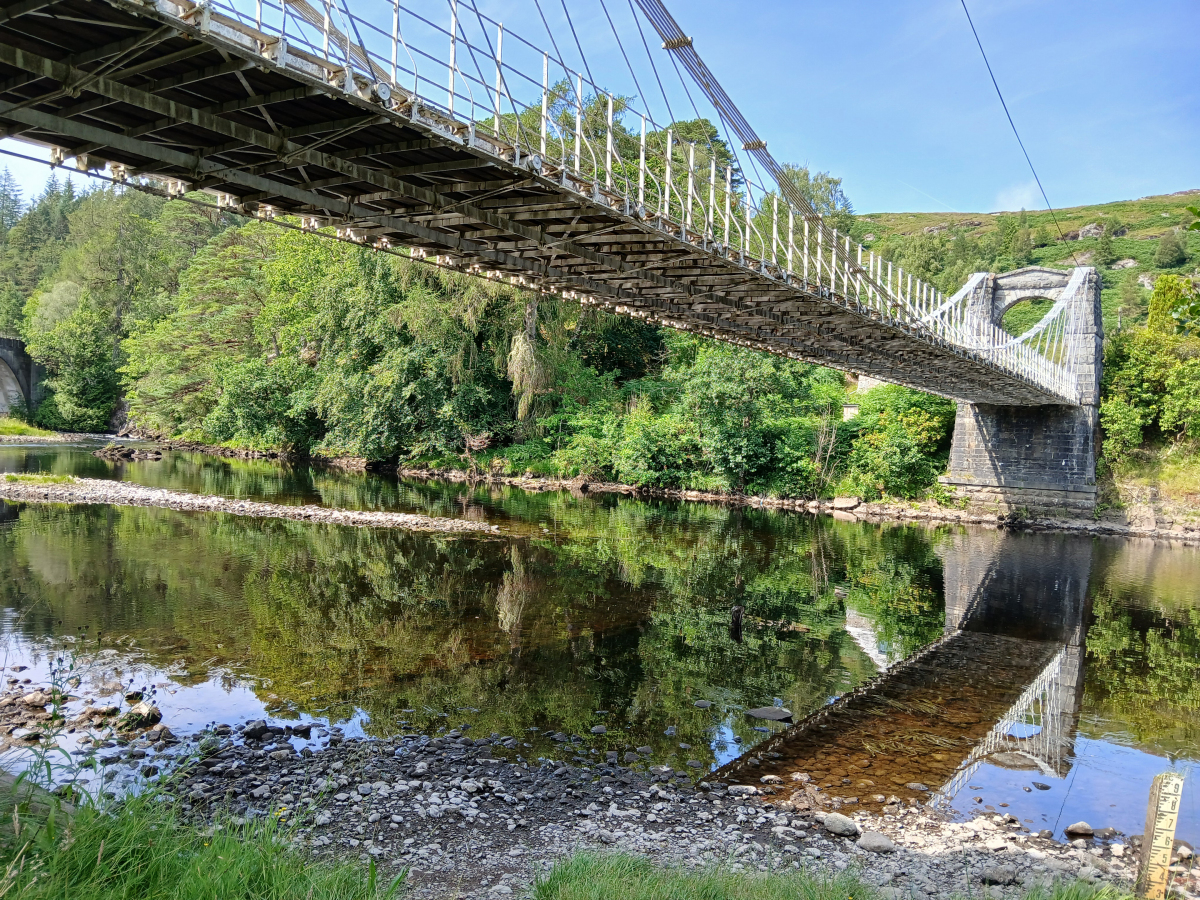

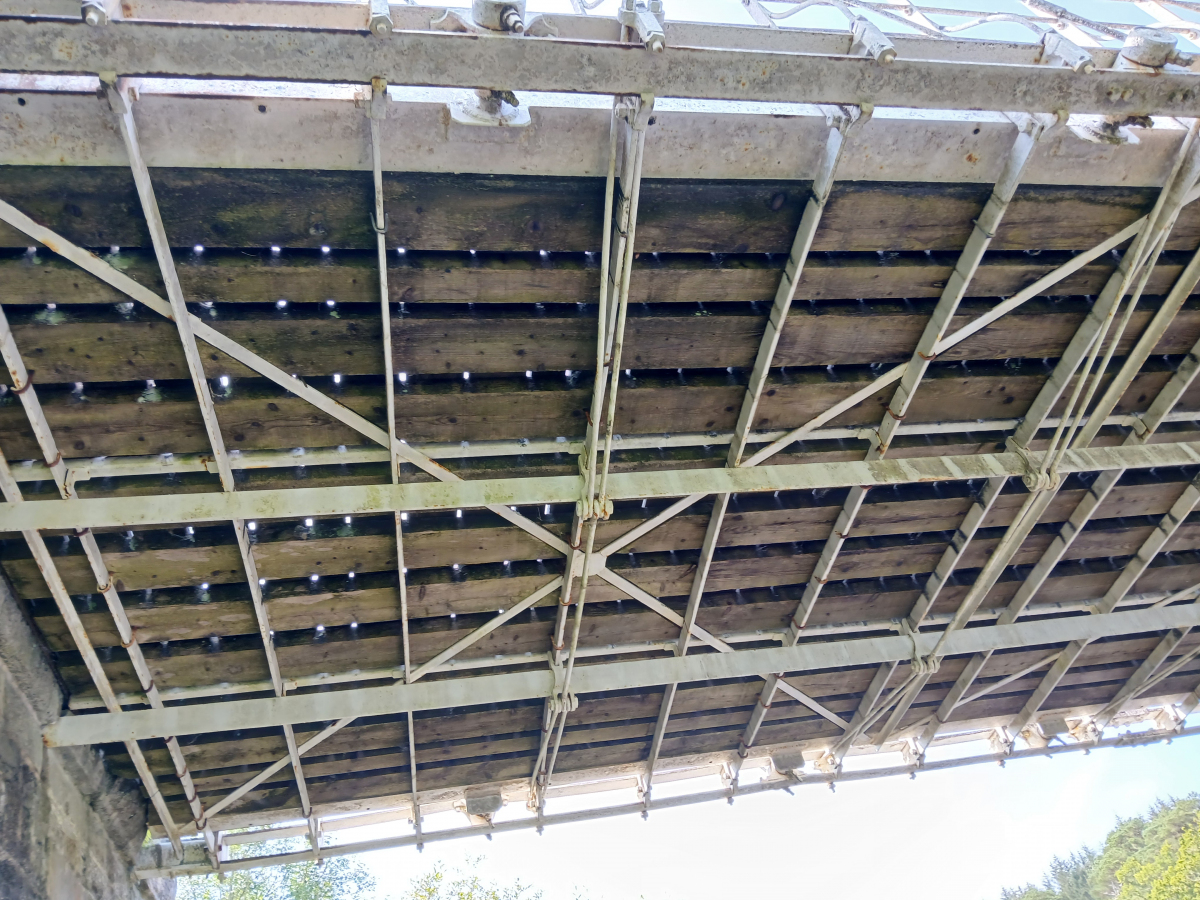

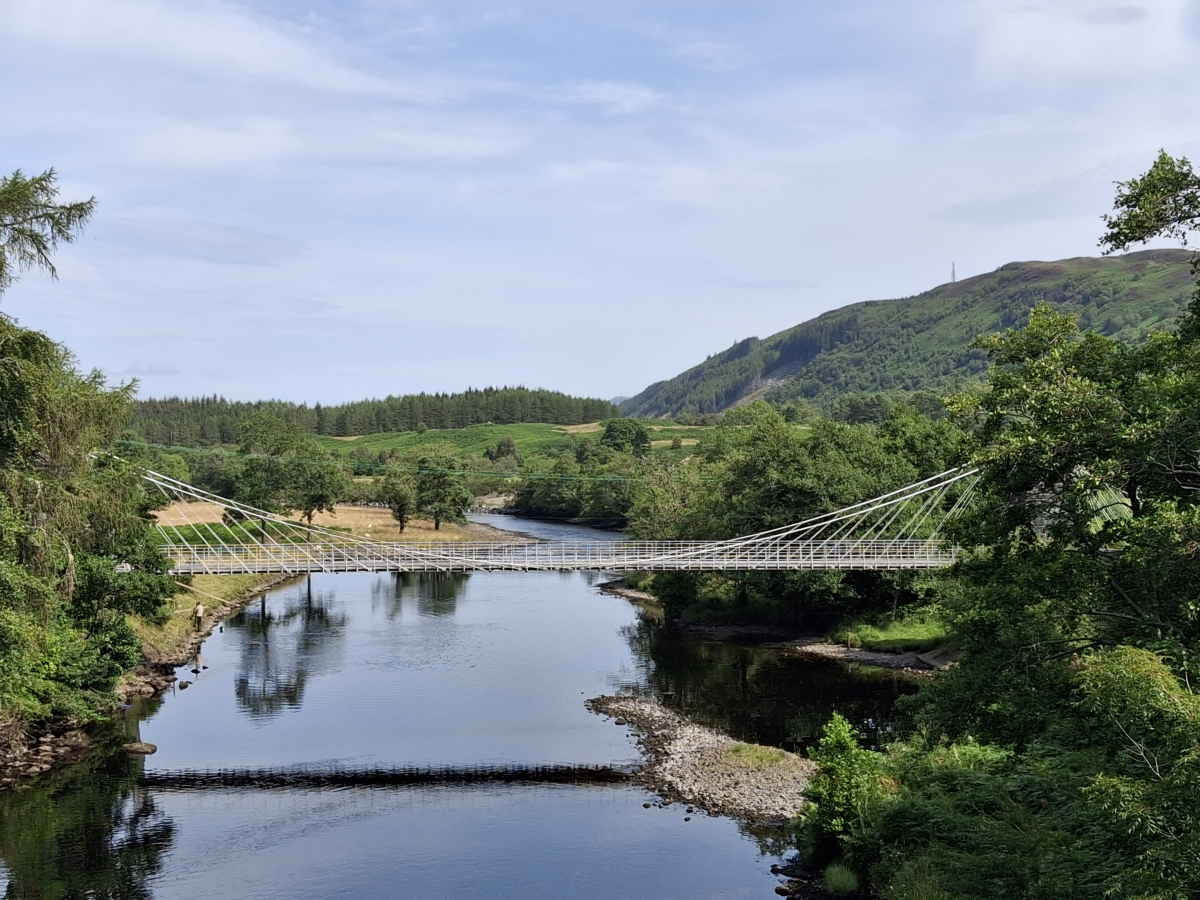

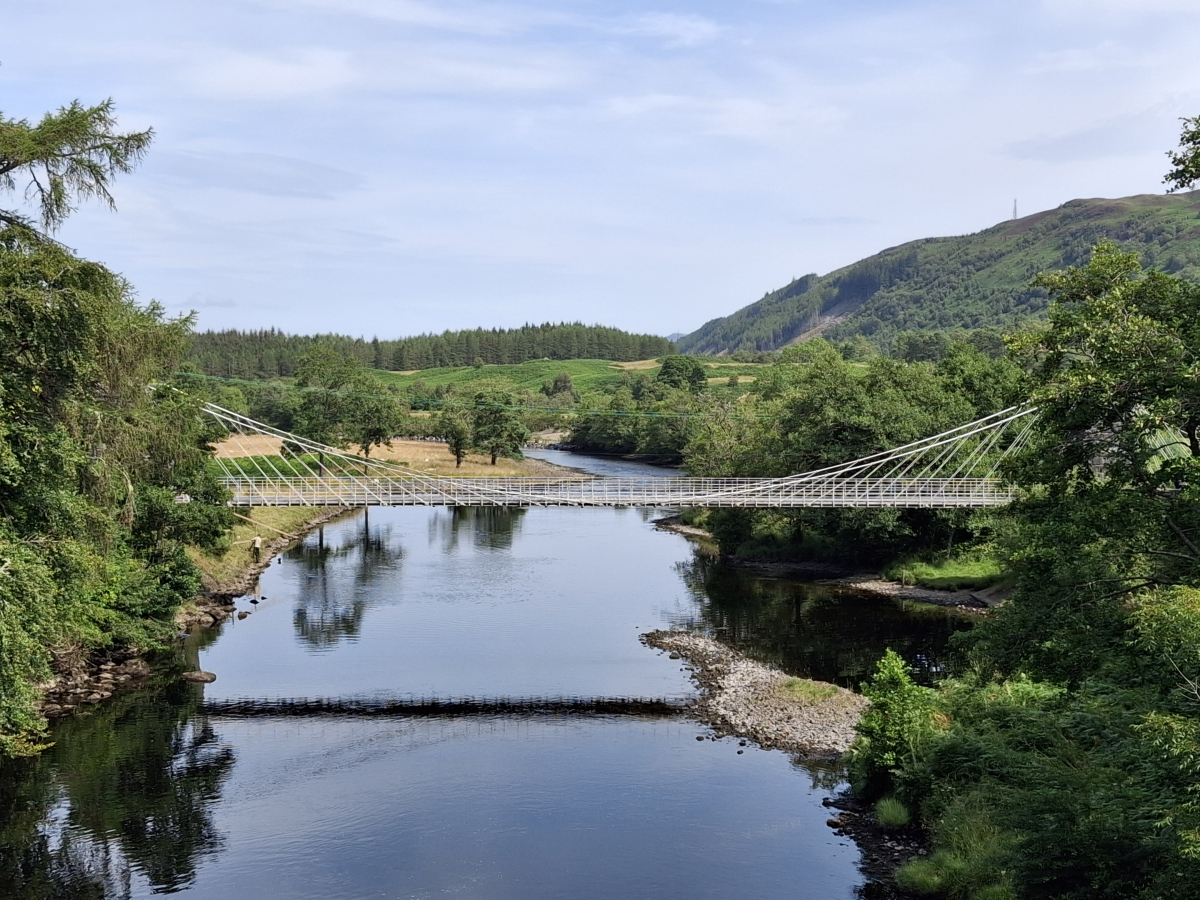

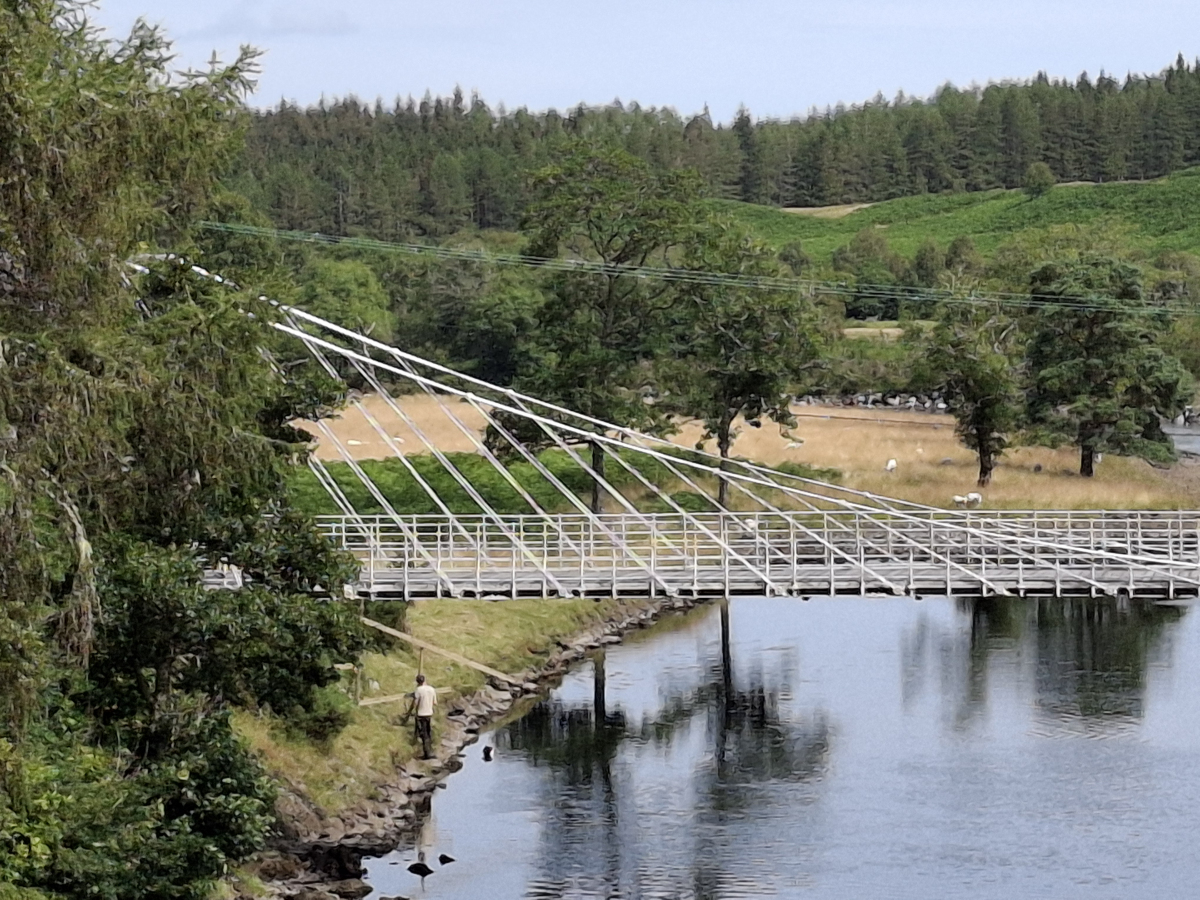

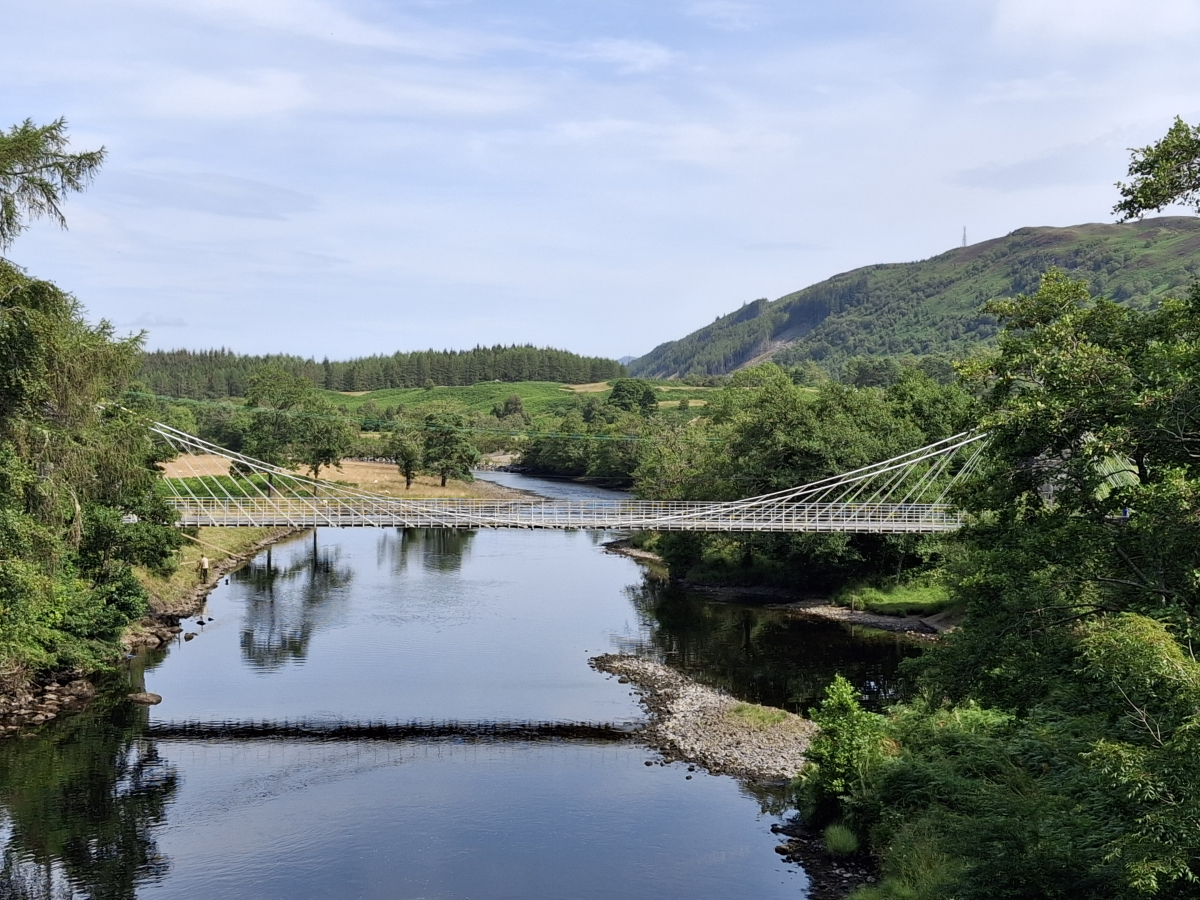

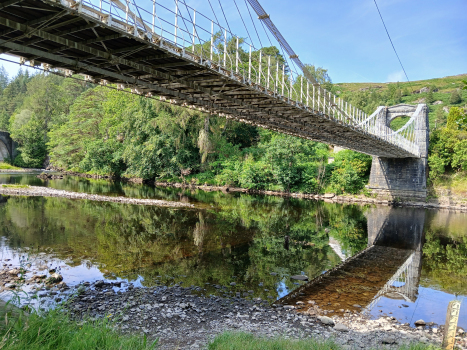

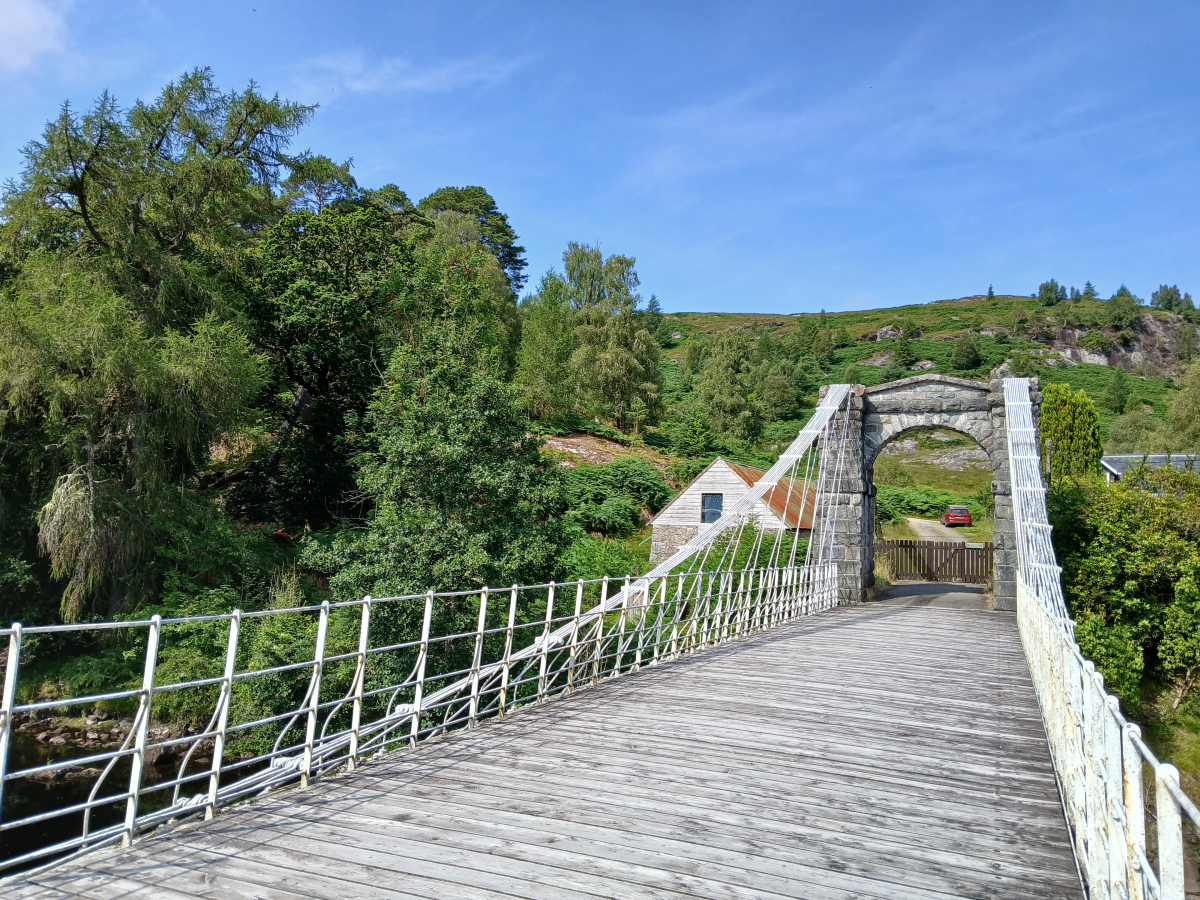

The bridge was designed by James Dredge, an engineer from England. Dredge used his patented 'taper principle' design for the bridge. The bridge uses a double cantilever system where two opposing cantilevers are supported by suspension chains giving it the appearance of a classic suspension bridge. The span of the bridge is 155 feet 6 inches (47.40 m) and the two main chains are 17 feet (5.2 m) apart. Each of the main chains is made from a series of wrought-iron eye-rods varying in length from 6 feet (1.8 m) to 7 feet 6 inches (2.29 m) and with a nominal diameter of 7⁄8 inch (22 mm). The main chains hang over 18 feet (5.5 m) high granite towers and one end of each chain is anchored to the bridge at mid-span and the other ends are anchored below ground inland of the bridge. The chains consist of twelve parallel rods at the tower and progressively reduce in width by one link at each joint towards each end of the chains as they get further from the towers. The decking is of timber, supported on trussed wrought-iron transoms.
History
In 1849 an old stone bridge that spanned the River Oich near Aberchalder was destroyed by flooding. To reduce the risk of a new bridge being damaged by similar flooding, it was decided that a single-span bridge was required to replace the old bridge. English engineer James Dredge was engaged to provide such a bridge. Dredge used his patented 'taper principle' for the bridge which was opened in 1854. Dredge's bridge carried the main road traffic across the River Oich until the construction of a two-lane concrete bridge in 1932. Following its withdrawal from service, the bridge fell into disrepair and had to be closed to public use. The bridge, which is now a listed building, was renovated for Historic Scotland in 1997, and returned to use as a public footbridge.
Text imported from Wikipedia article "Bridge of Oich" and modified on July 23, 2019 according to the CC-BY-SA 4.0 International license.
