General Information
| Completion: | 2004 |
|---|---|
| Status: | in use |
Project Type
| Structure: |

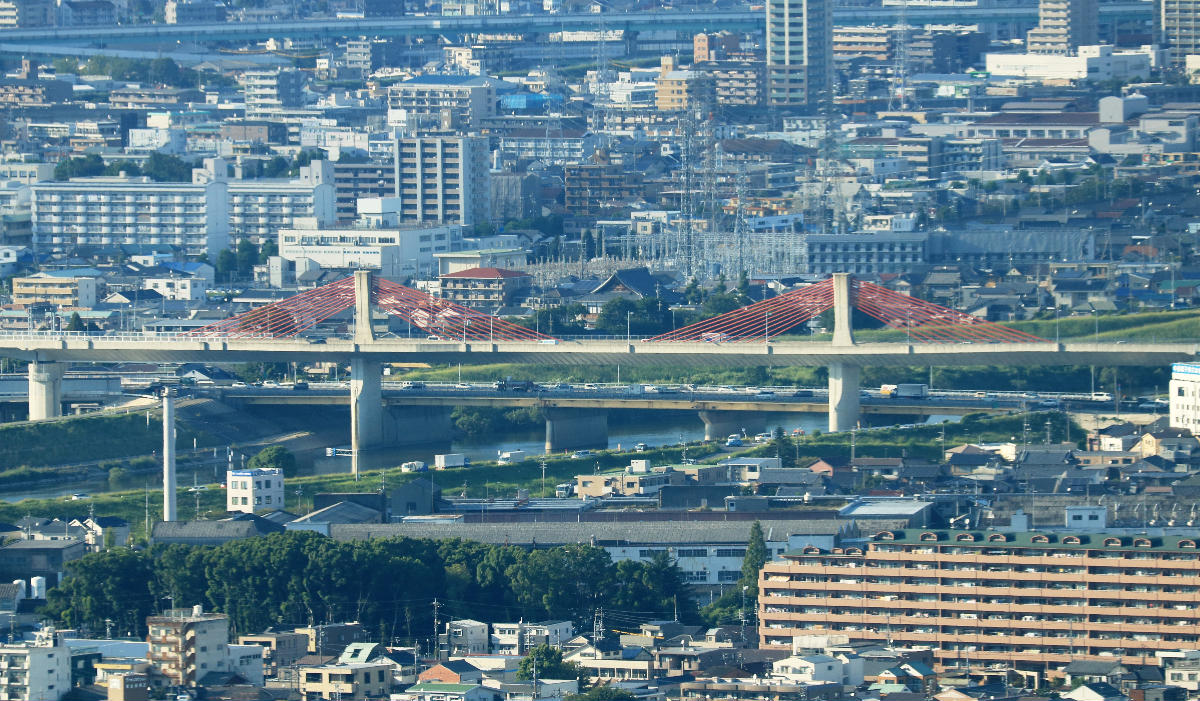

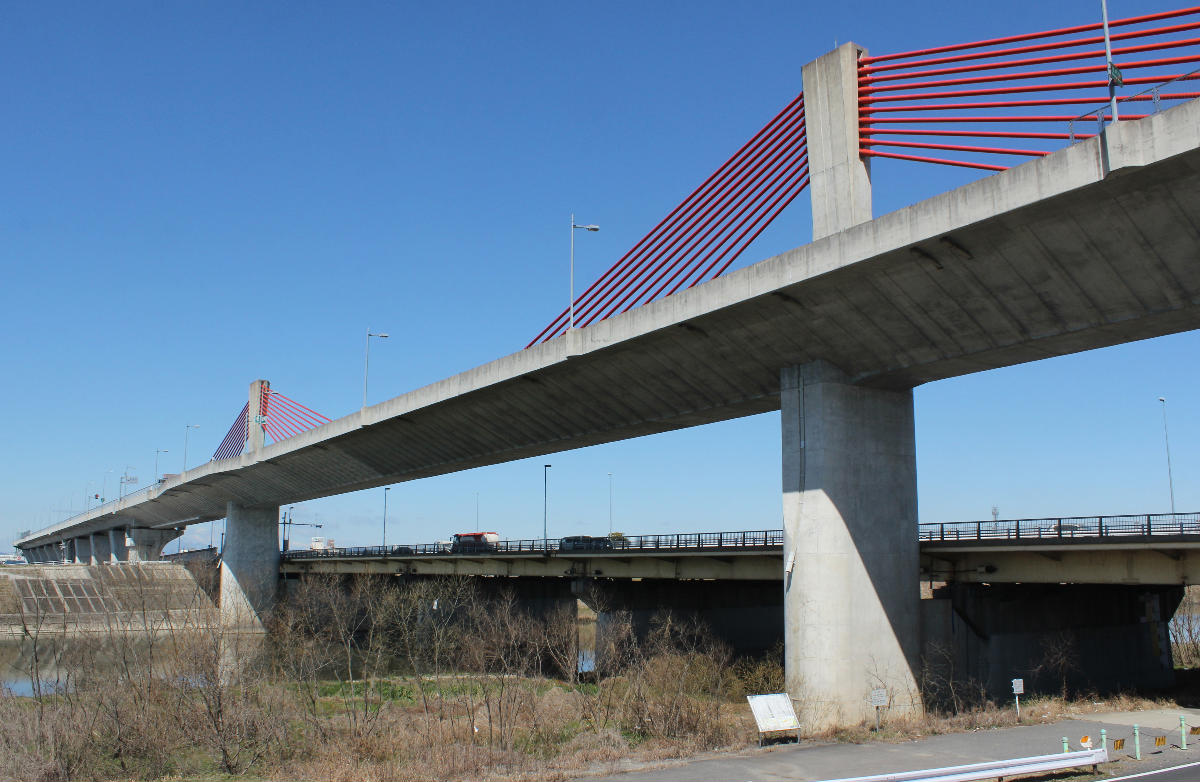

Three-span extradosed bridge |
|---|---|
| Function / usage: |
Motorway bridge / freeway bridge |
| Material: |
Prestressed concrete bridge |
| Material: |
Structurae Plus/Pro - Subscribe Now! Structurae Plus/Pro - Subscribe Now! |
Location
Technical Information
Dimensions
| total length | 294.32 m | |
| span lengths | 88.3 m - 122.3 m - 81.2 m | |
| number of spans | 3 | |
| deck | deck depth | 3.50 m |
| deck width | 21.50 m | |
| stay anchor spacing | 3.6 m | |
| pylons | pylon height (above deck) | 16.50 m |
| pylon height (above ground) | 23.80 m |
Materials
| deck |
prestressed concrete
|
|---|---|
| piers |
reinforced concrete
|
| pylons |
reinforced concrete
|
Participants
Currently there is no information available about persons or companies having participated in this project.
Relevant Web Sites
There currently are no relevant websites listed.
- About this
data sheet - Structure-ID
20074475 - Published on:
05/01/2018 - Last updated on:
07/06/2020
