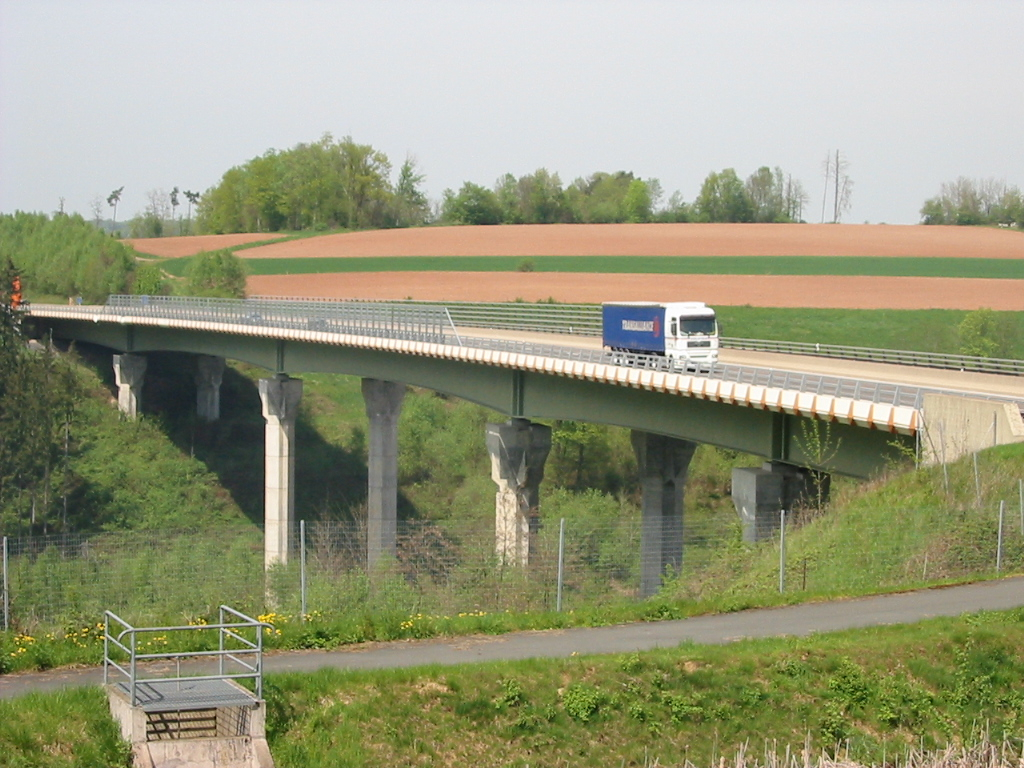

General Information
Status: | in use |
---|
Project Type
Structure: |
Twin girder bridge |
---|---|
Function / usage: |
Road bridge |
Material: |
Steel-prestressed concrete composite bridge |
Location
Location: |
Baccarat, Meurthe-et-Moselle (54), Grand-Est, France |
---|---|
Carries: |
|
Coordinates: | 48° 27' 39.76" N 6° 44' 51.86" E |
Technical Information
Dimensions
total length | 323.6 m | |
span lengths | 50 m - 83 m - 91 m - 59 m - 39 m | |
number of spans | 5 | |
on-center distance between girders | 10.50 m | |
girder depth | 3.30 - 4.30 m | |
distance between cross-beams | 8.00 m | |
width of lower beams | 1.20 m | |
width of lower flanges | 1.30 m | |
deck | deck width | 20.5 m |
deck slab thickness | 50 - 32 cm; 25 cm |
Quantities
deck | structural steel | 1 475 t |
concrete volume | 2 460 m³ | |
prestressing steel | 49.8 t | |
reinforcing steel | 200 kg/m³ |
Cost
cost of construction | French Franc 40 000 000 |
Materials
deck slab |
prestressed concrete
|
---|---|
girders |
steel
|
Participants
Owner
Client
Architecture
- Cabinet Fraleu
- Philippe Fraleu (architect)
- Pierre Loyer (architect)
Structural engineering
Checking engineering
Civil works
Steel construction
Relevant Web Sites
There currently are no relevant websites listed.
Relevant Publications
- Déviation de Baccarat. Viaduc de Crivillier. In: Bulletin ponts métalliques, n. 18 ( 1996), pp. 151-154. (1996):
