General Information
Project Type
| Structure: |

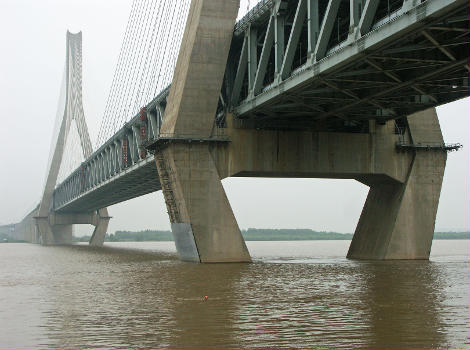

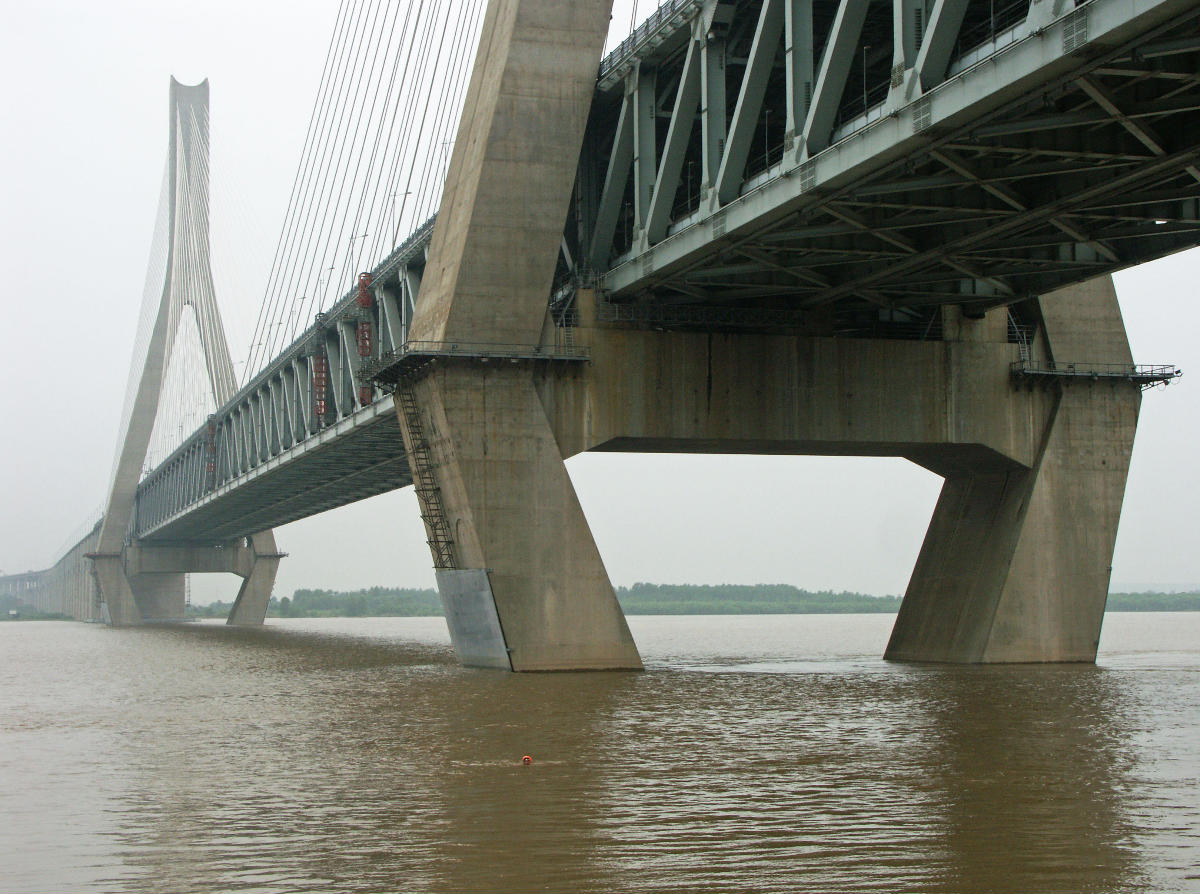

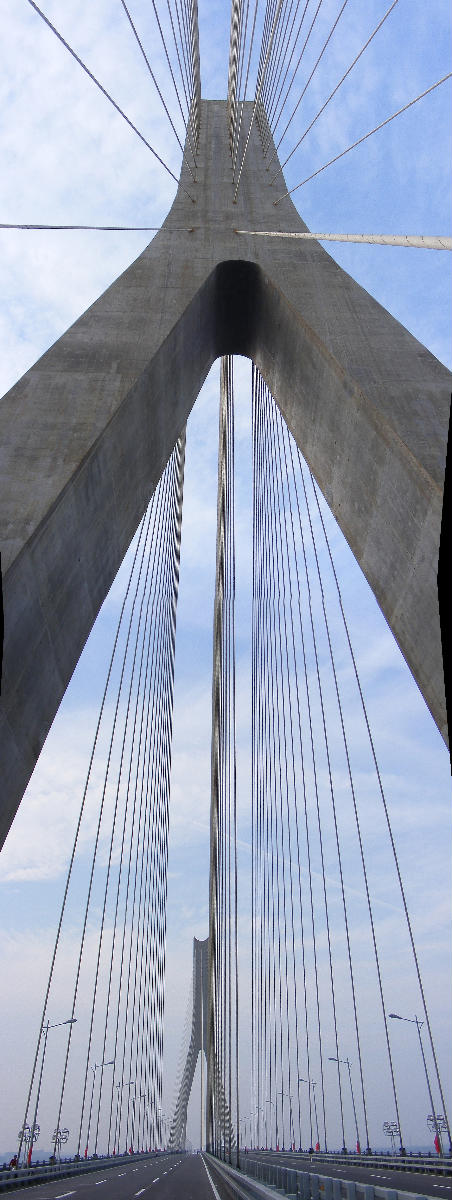

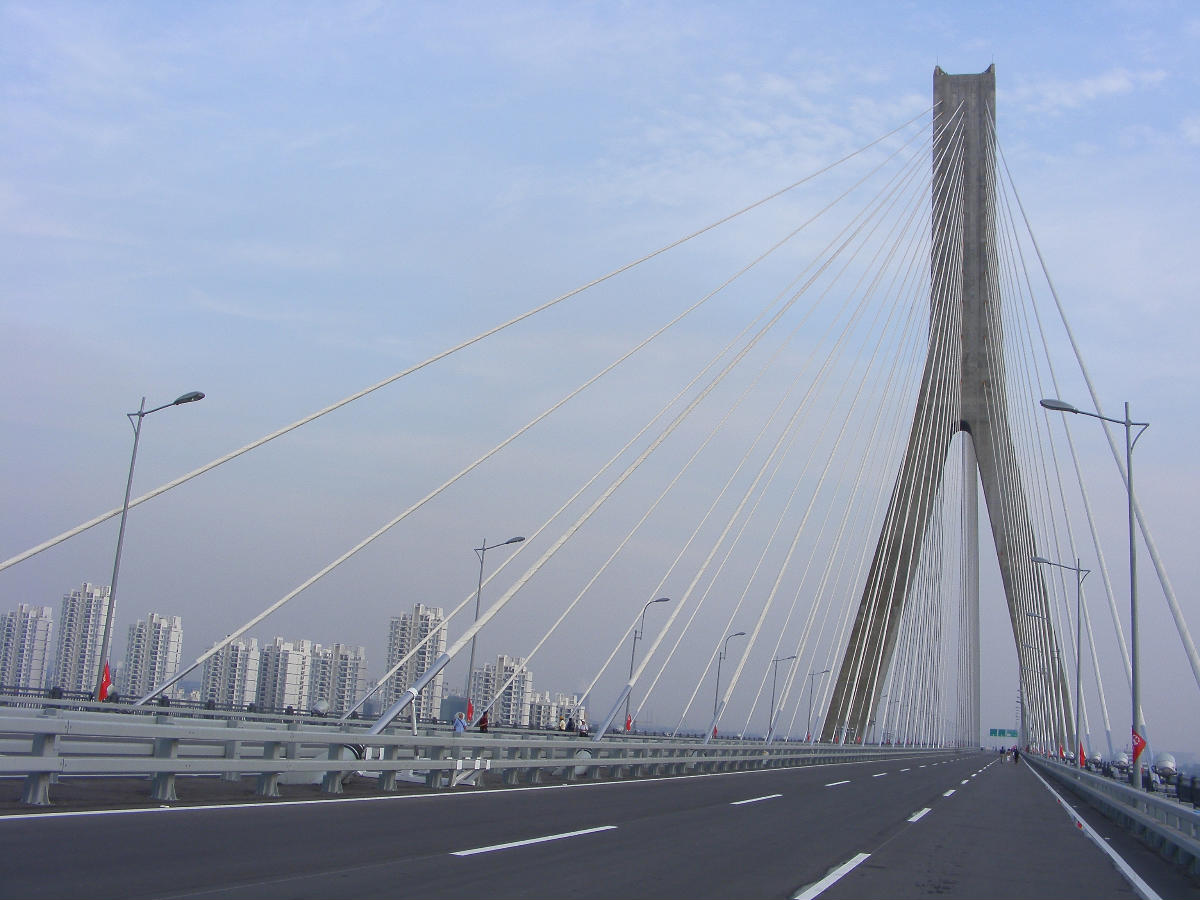

Cable-stayed bridge with semi-fan system |
|---|---|
| Secondary structure(s): |
Structurae Plus/Pro - Subscribe Now! |
| Function / usage: |

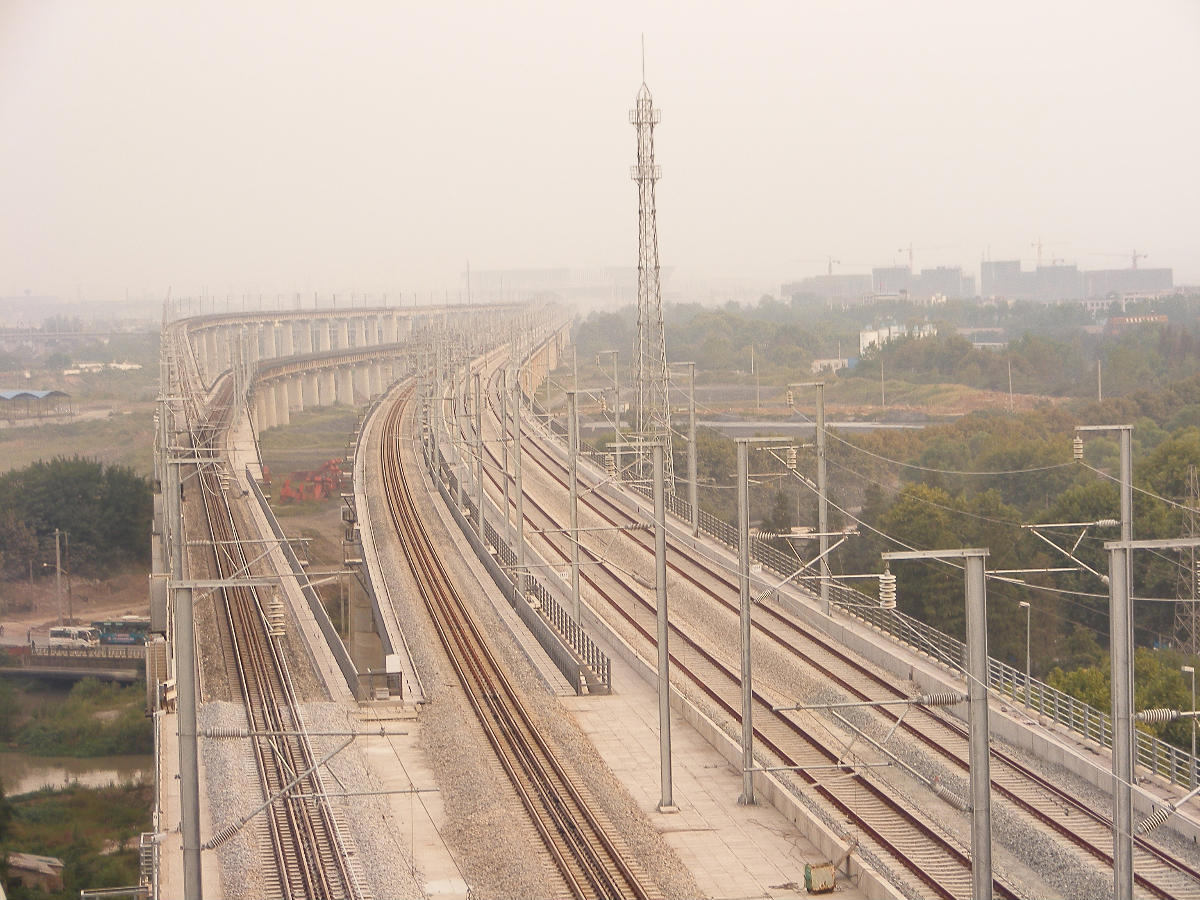

Road bridge High-speed rail bridge Railroad (railway) bridge |
| Material: |
Steel bridge |
Location
| Location: |
Wuhan, Hubei, China |
|---|---|
| Crosses: |
|
| Part of: | |
| Coordinates: | 30° 39' 27.52" N 114° 24' 0.43" E |
Technical Information
Dimensions
| main span | 504 m | |
| total length | 4 657 m | |
| deck truss | width | 31 m |
| height | 17 m | |
| main bridge | ||
|---|---|---|
| length | 1 092 m | |
| span lengths | 98 m - 196 m - 504 m - 196 m - 98 m | |
| number of spans | 5 | |
Cost
| cost of construction | Renminbi Yuan 11 060 000 000 |
Materials
| deck truss |
steel
|
|---|
Participants
Design
Checking engineering
-
SYSTRA
- Serge Montens (checking engineer)
Contractor
Subcontractor
Construction supervision
Relevant Web Sites
There currently are no relevant websites listed.
Relevant Publications
- (2009): China's Major Bridges. Presented at: IABSE Workshop: Recent Major Bridges, Shanghai, China, 11-12 May 2009, pp. 1-24.
- (2009): Network gains. China's high speed rail network is expanding at a rapid pace. In: Bridge Design & Engineering, v. 15, n. 55 (2nd Quarter 2009), pp. 30-32.
- (2011): Research on the major dominant bridges of the Wuhan-Guangzhou High-speed Railway, China. Presented at: 35th Annual Symposium of IABSE / 52nd Annual Symposium of IASS / 6th International Conference on Space Structures: Taller, Longer, Lighter - Meeting growing demand with limited resources, London, United Kingdom, September 2011.
- (2008): Speedy delivery. In: Bridge Design & Engineering, v. 14, n. 50 (1st Quarter 2008), pp. 38-39.
- (2010): Tianxingzhou bridge: world record span for railway cable-stayed bridges. Presented at: IABSE Symposium: Large Structures and Infrastructures for Environmentally Constrained and Urbanised Areas, Venice, Italy, 22-24 September 2010, pp. 254-255.
- About this
data sheet - Structure-ID
20014738 - Published on:
12/12/2004 - Last updated on:
05/02/2016
