General Information
Project Type
| Function / usage: |
Road tunnel |
|---|---|
| Structure: |
Tunnel |
Location
| Location: |
Thuringia, Germany |
|---|---|
| Part of: | |
| Coordinates: | 51° 17' 2.97" N 11° 13' 33.71" E |
| Coordinates: | 51° 16' 14.02" N 11° 12' 49.60" E |
Technical Information
Dimensions
| number of tubes | 2 | |
| eastern tube | length | 1 721 m |

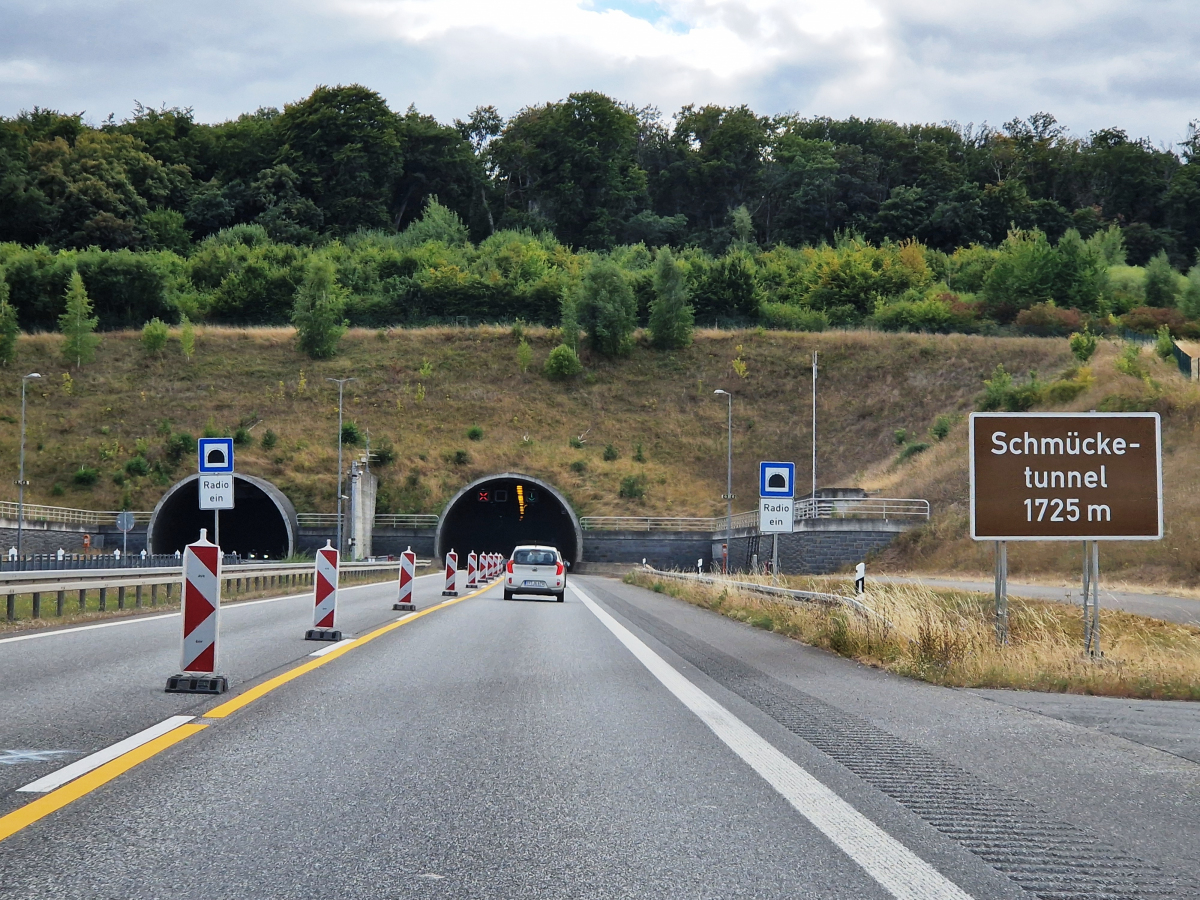

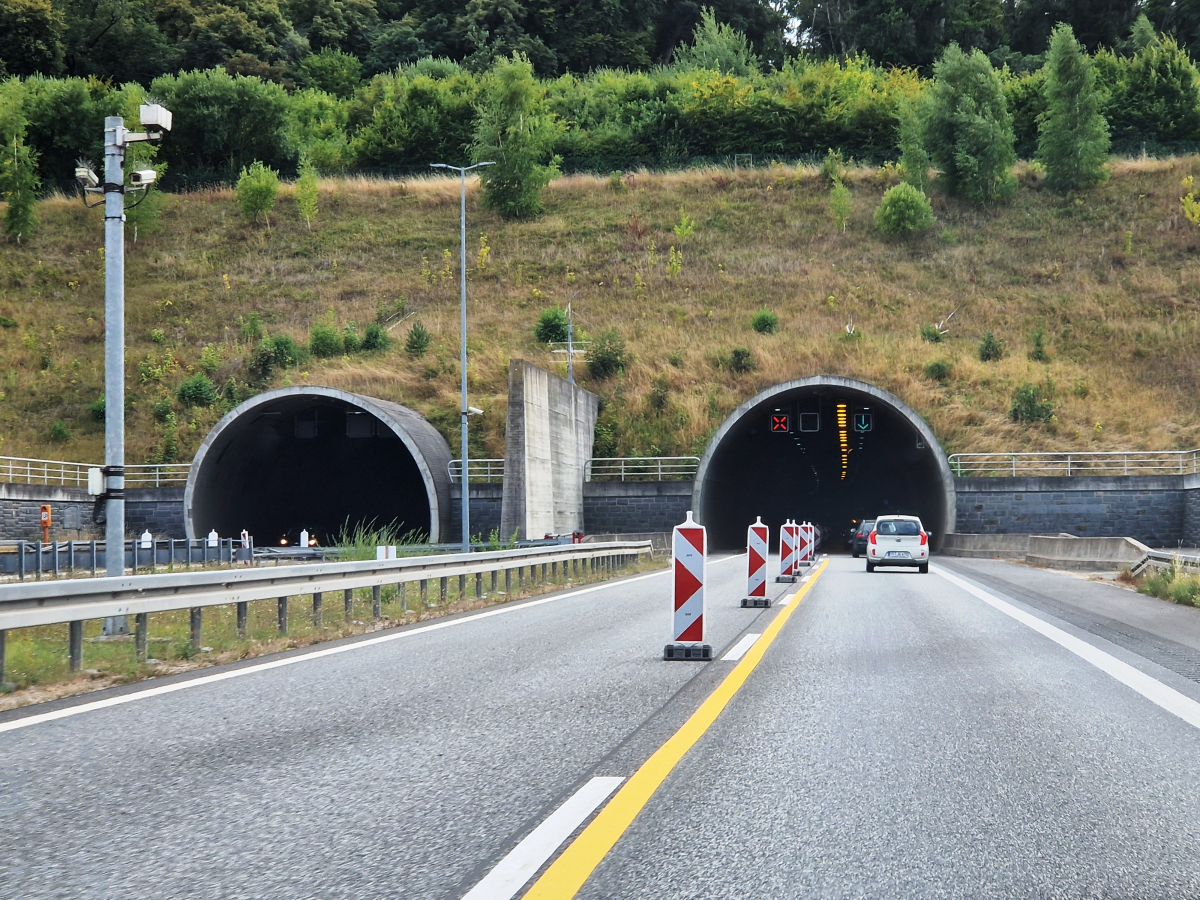

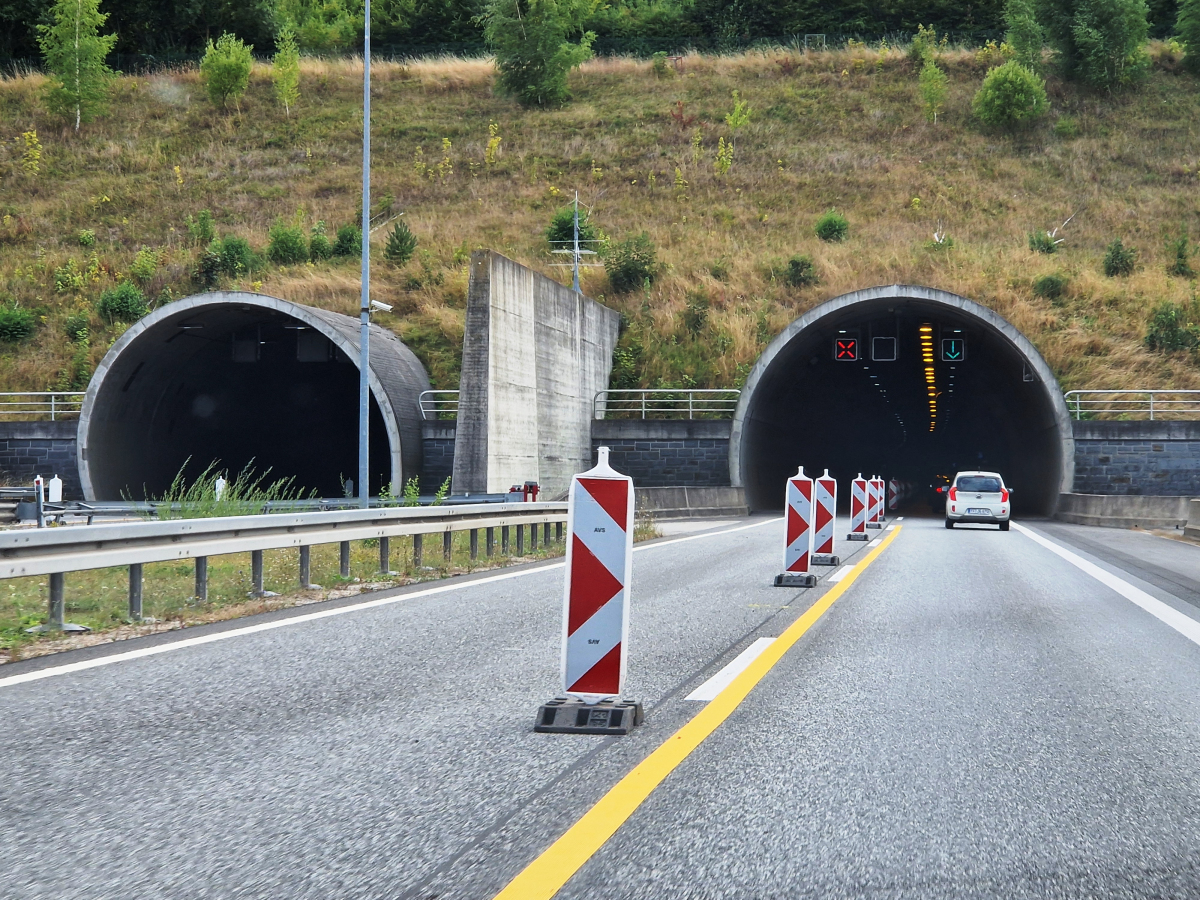

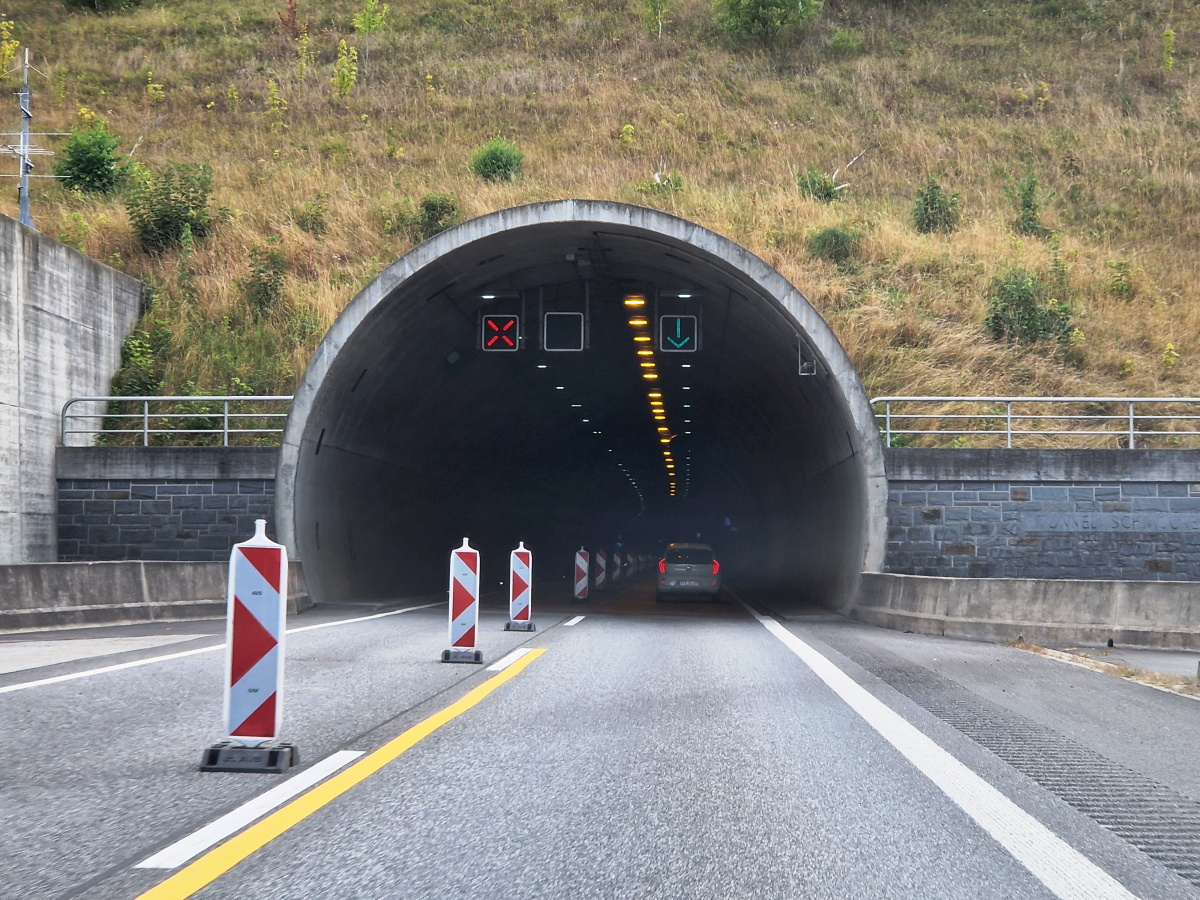

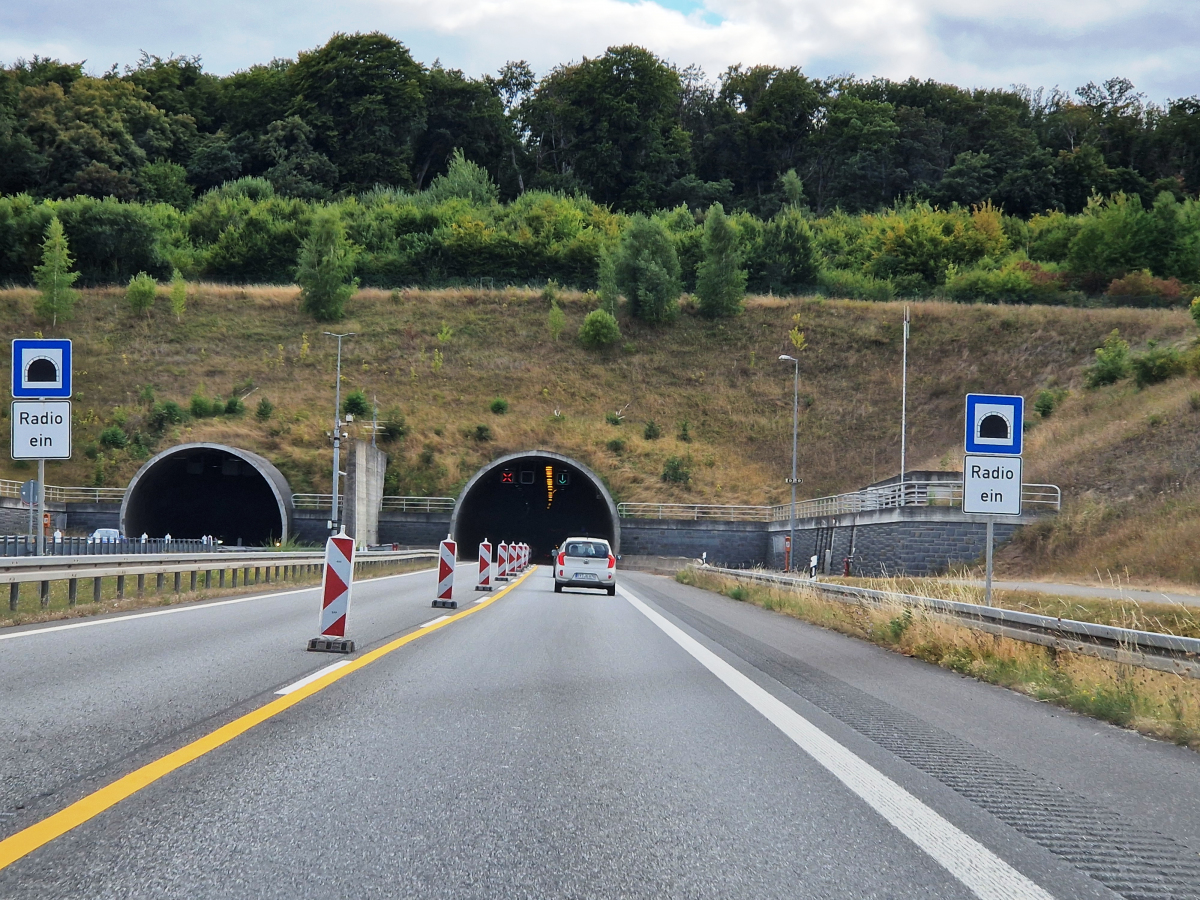

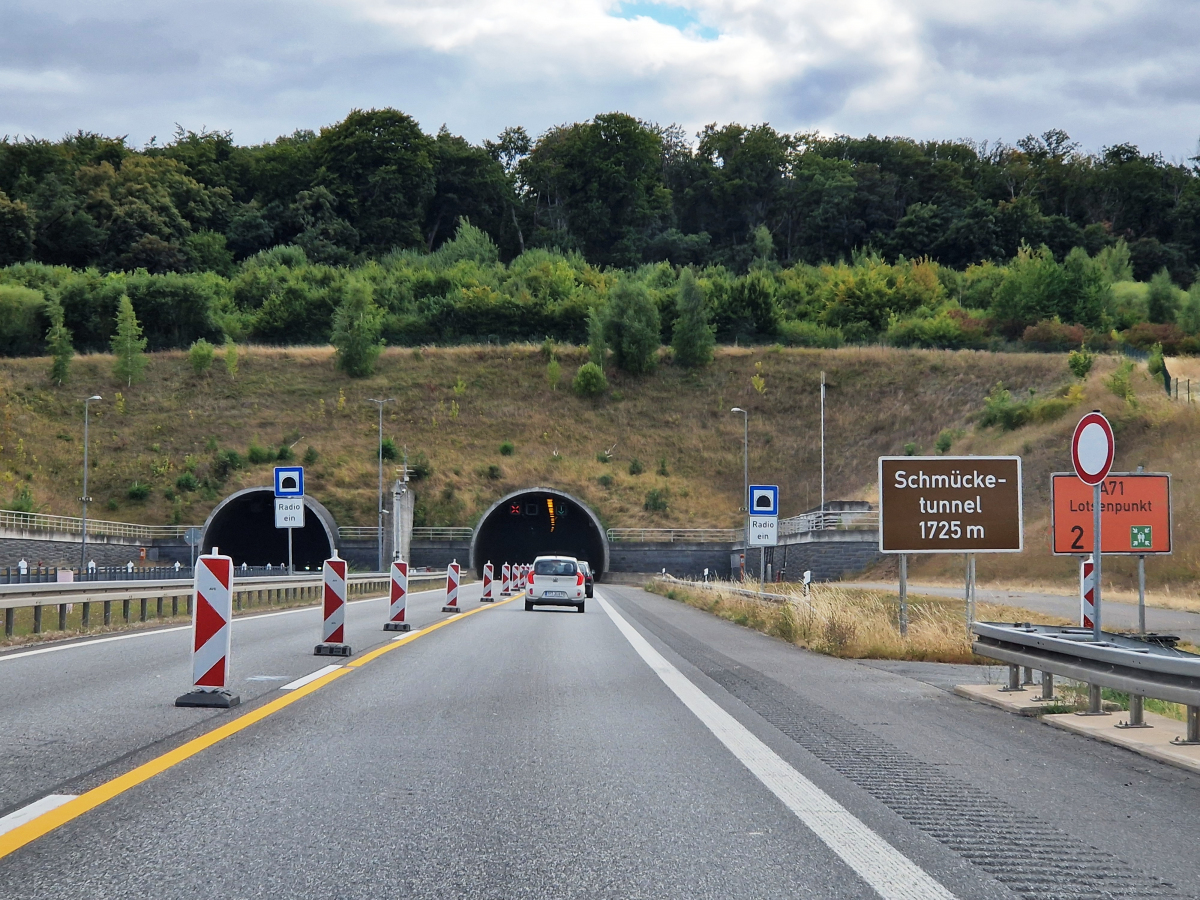

| tunnel portals Nord | length | 14 m |
| tunnel portals Süd | length | 19 m |
| vault | thickness | 40-60 cm |
| western tube | length | 1 729 m |
Quantities
| concrete volume | 48 000 m³ | |
| reinforcing steel | 4 893 t | |
| volume of extracted material | 449 215 m³ |
Cost
| cost of construction | Euro 85 000 000 |
Participants
Owner
Client
Design
Structural engineering
Geotechnical engineering
Geotechnical/geological experts
Checking engineering
Co-contractor
Construction supervision
Electronic construction diary
Electronic drawing management
Relevant Web Sites
There currently are no relevant websites listed.
Relevant Publications
- Brücken und Tunnel der Bundesfernstraßen 2009. Deutscher Bundes-Verlag, Cologne (Germany), ISBN 978-3-935064-61-3, 2009, pp. 161-177.
- Viel Wasser und schwierige Geologie. In: beton, v. 57, n. 1-2 ( 2007), pp. 40.
