General Information
Project Type
| Structure: |

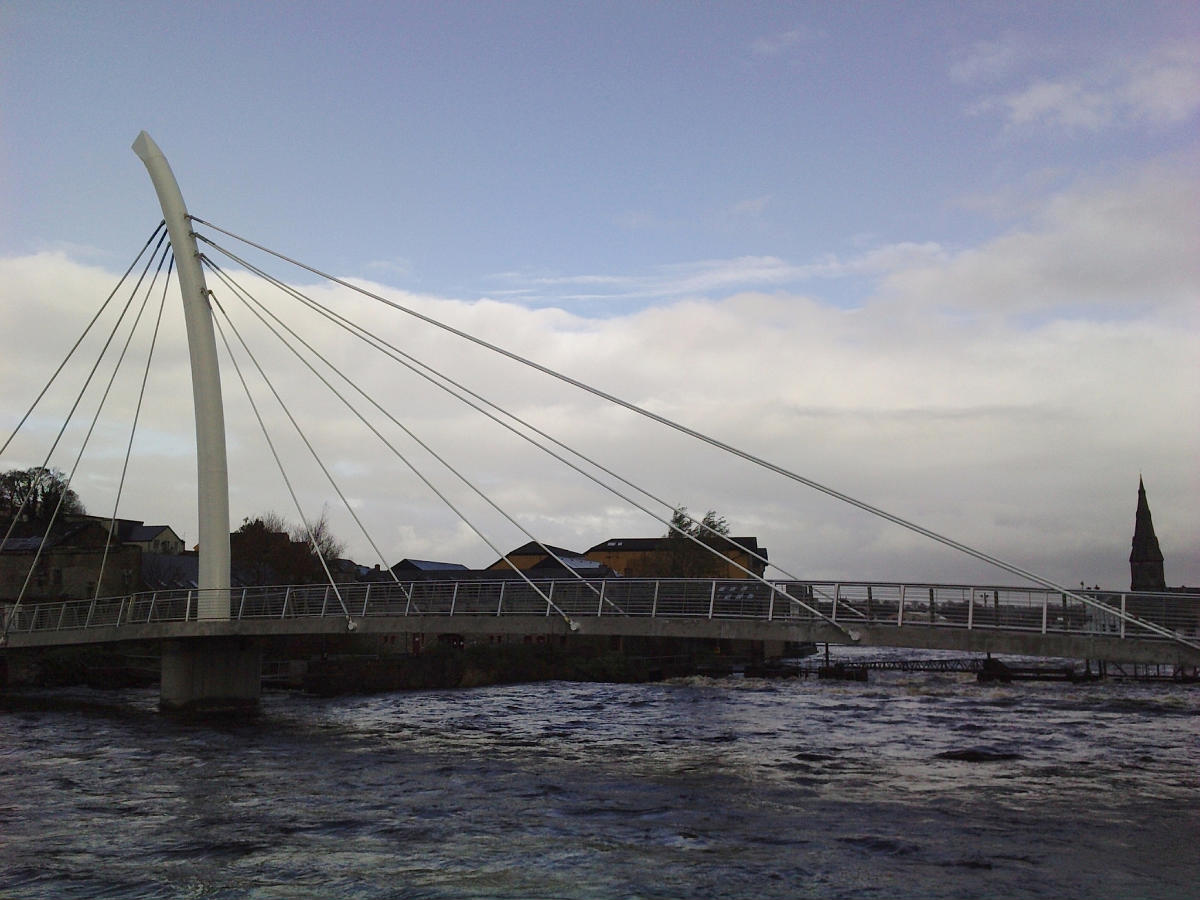

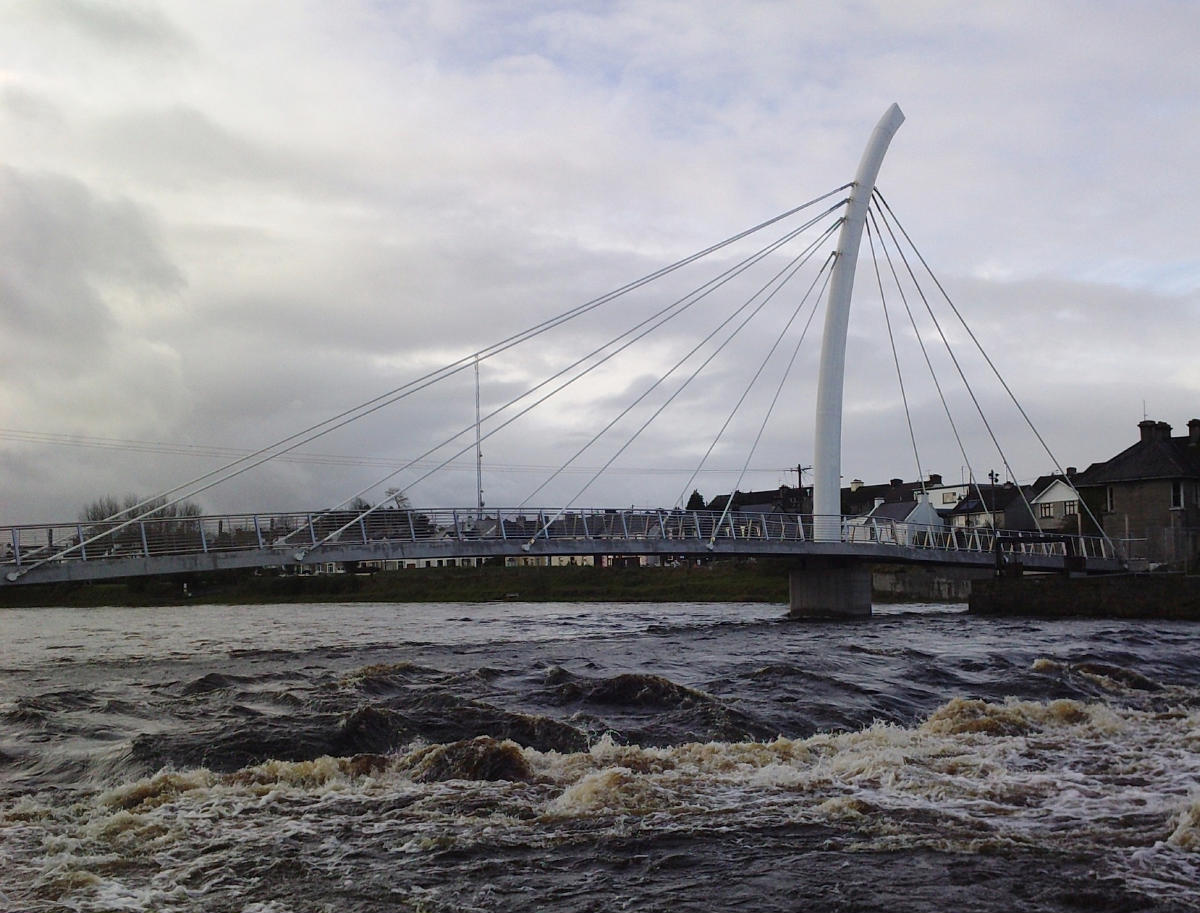

Cable-stayed bridge with fan system |
|---|---|
| Function / usage: |
Pedestrian bridge (footbridge) |
| Material: |
Concrete bridge Structurae Plus/Pro - Subscribe Now! Structurae Plus/Pro - Subscribe Now! |
| Secondary structure(s): |
Structurae Plus/Pro - Subscribe Now! |
Location
| Location: |
Ballina, County Mayo, Ireland |
|---|---|
| Coordinates: | 54° 6' 38.21" N 9° 9' 18.68" W |
Technical Information
Dimensions
| total length | 67 m | |
| span lengths | 47 m - 20 m | |
| number of spans | 2 | |
| pylon | height from ground level | 29 m |
Materials
| pylon |
steel
|
|---|---|
| deck |
precast concrete
|
| parapets |
stainless steel
|
| pier |
reinforced concrete
|
| stay cables |
steel
|
Chronology
| 2005 | Inception. |
|---|---|
| 2007 | Preliminary design/planning completed. |
Participants
Owner
Design
Contractor
Relevant Web Sites
There currently are no relevant websites listed.
- About this
data sheet - Structure-ID
20048932 - Published on:
04/11/2009 - Last updated on:
05/02/2016
