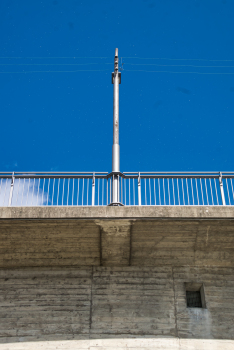

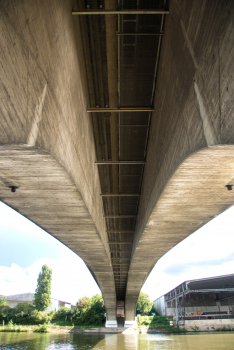

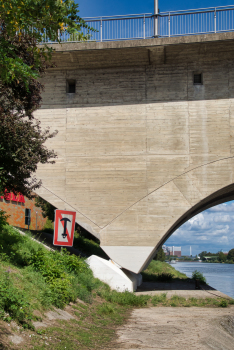

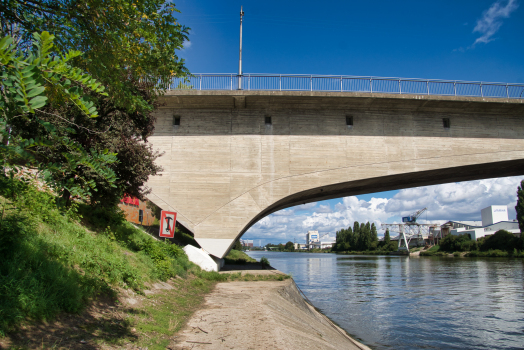

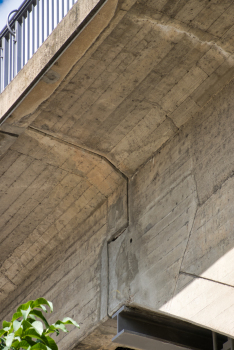

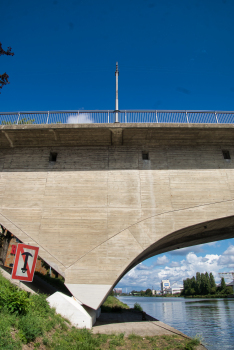

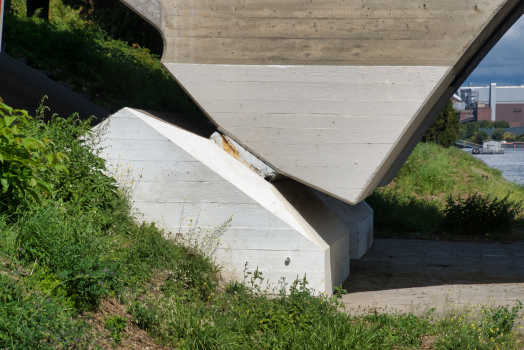

Peter Bruckmann Bridge
media credits (ID:326949)
Peter Bruckmann Bridge
media credits (ID:326948)

General Information

Other name(s): Peter-Bruckmann-Brücke
Beginning of works: 1948
Completion: 1950
Status: in use

Project Type

Structure: Three-hinged rigid-frame bridge with inclined legs
Function / usage: Road bridge
Material: Prestressed concrete bridge
Material: Structurae Plus/Pro - Subscribe Now!

Location

Location: , ,
Coordinates: 49° 9' 7.05" N    9° 12' 13.31" E
Show coordinates on a map

Technical Information

Dimensions

width 15 m
height 10.20 m
total length 174 m
span lengths 21.30 m - 11.80 m - 107.80 m - 11.80 m - 21.30 m
number of spans 5

Materials

superstructure prestressed concrete
piers reinforced concrete

Participants

Owner
Design
Architecture
Construction

Relevant Web Sites

There currently are no relevant websites listed.

Relevant Publications

  • About this
    data sheet
  • Structure-ID
    20001532
  • Published on:
    15/07/2001
  • Last updated on:
    29/08/2019
