General Information
| Completion: | 1988 |
|---|---|
| Status: | in use |
Project Type
| Structure: |
Cable-stayed bridge with semi-fan system |
|---|---|
| Function / usage: |
Motorway bridge / freeway bridge Railroad (railway) bridge |
| Material: |
Steel bridge |
| Secondary structure(s): |
Structurae Plus/Pro - Subscribe Now! |
| Material: |
Structurae Plus/Pro - Subscribe Now! |
| Secondary structure(s): |
Structurae Plus/Pro - Subscribe Now! |
Location
| Location: |

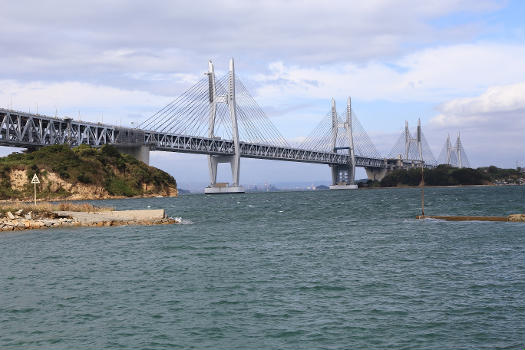

Kojima, Kagawa, Japan Sakaide, Kagawa, Japan |
|---|---|
| Crosses: |
|
| Part of: | |
| Coordinates: | 34° 24' 6.29" N 133° 48' 33" E |
Technical Information
Dimensions
| main span | 420 m | |
| total length | 790.0 m | |
| span lengths | 185.00 m - 420.00 m - 185.00 m | |
| number of spans | 3 | |
| deck | deck depth | 13.9 m |
| deck width | 29.1 m | |
| pylon | pylon height | 148.1 m |
Materials
| pylons |
reinforced concrete
|
|---|---|
| deck truss |
steel
|
| abutments |
reinforced concrete
|
Participants
Relevant Web Sites
Relevant Publications
- (1999): Bridge Engineering Handbook. CRC Press, Boca Raton (USA), pp. 65-13; 66-26.
- (1997): Bridges. A history of the world's most famous and important spans. Black Dog & Leventhal, New York (USA), pp. 96-97.
- (2017): Bridges. A History of the World's Most Spectacular Spans. 2nd edition, Black Dog & Leventhal, New York (USA), ISBN 978-0316507943, pp. 96-97.
- (1998): Brücken. Die Geschichte berühmter Brücken. Könemann, Cologne (Germany), pp. 96-97.
- (1984): Hitsuishijima and Iwakurojima Bridges. Presented at: 12th IABSE Congress, Vancouver, BC, Canada, 3-7 September, 1984.
- About this
data sheet - Structure-ID
20000265 - Published on:
19/05/1999 - Last updated on:
24/09/2018
