General Information

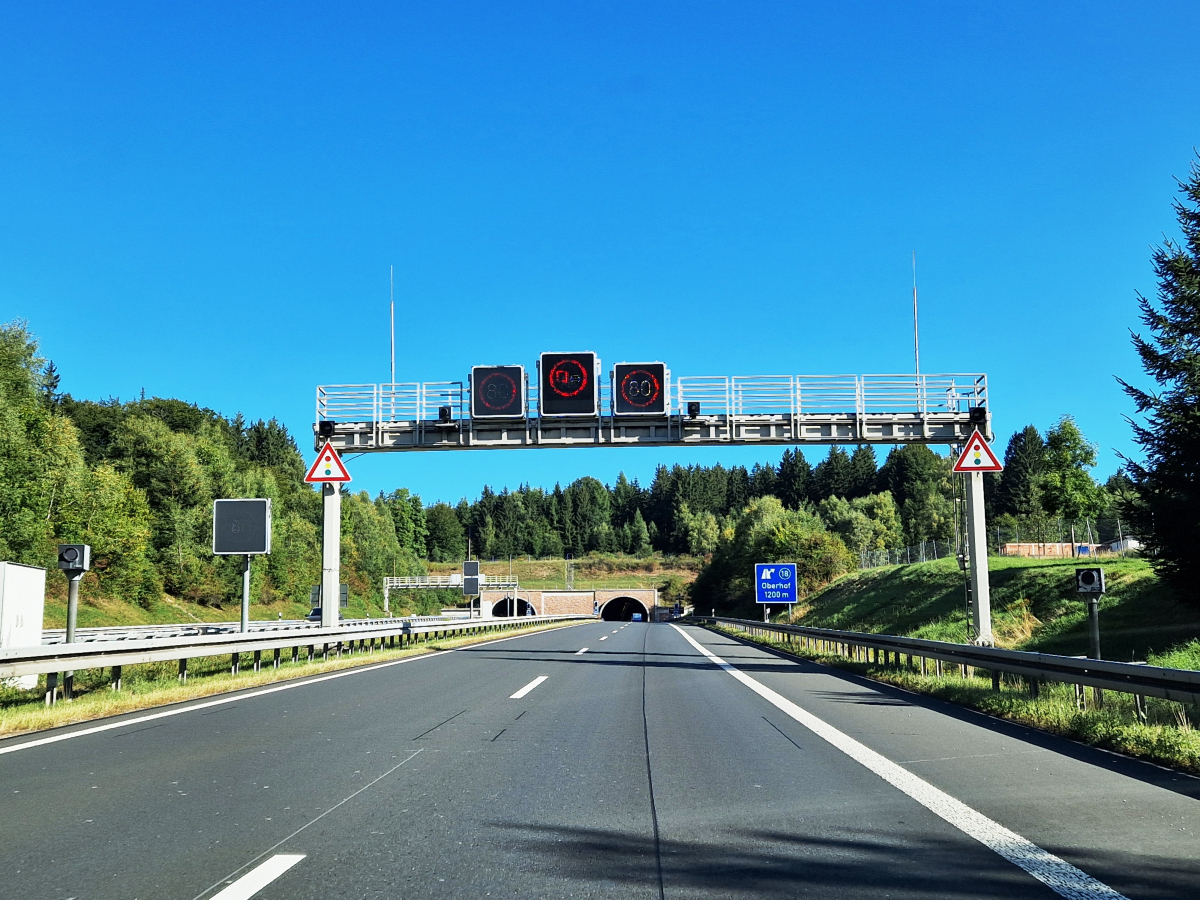

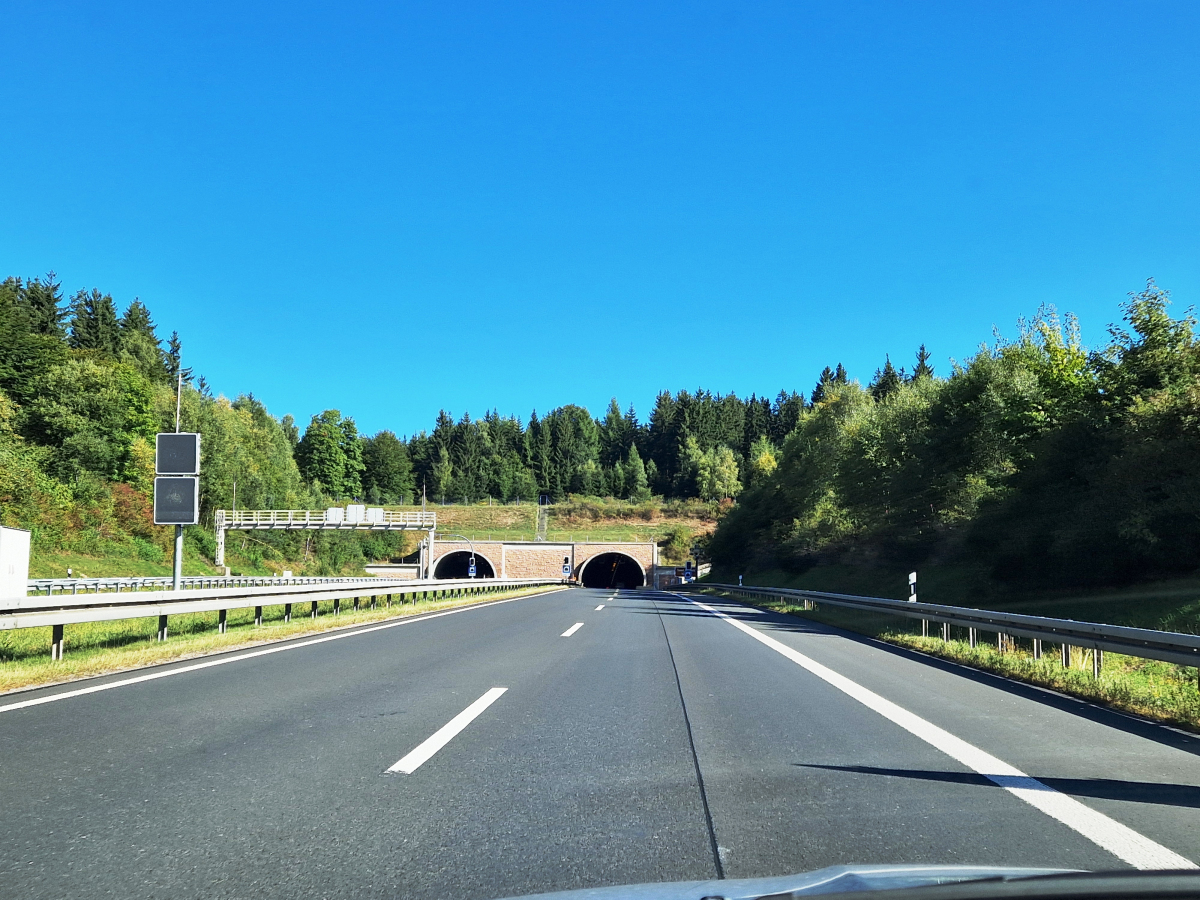

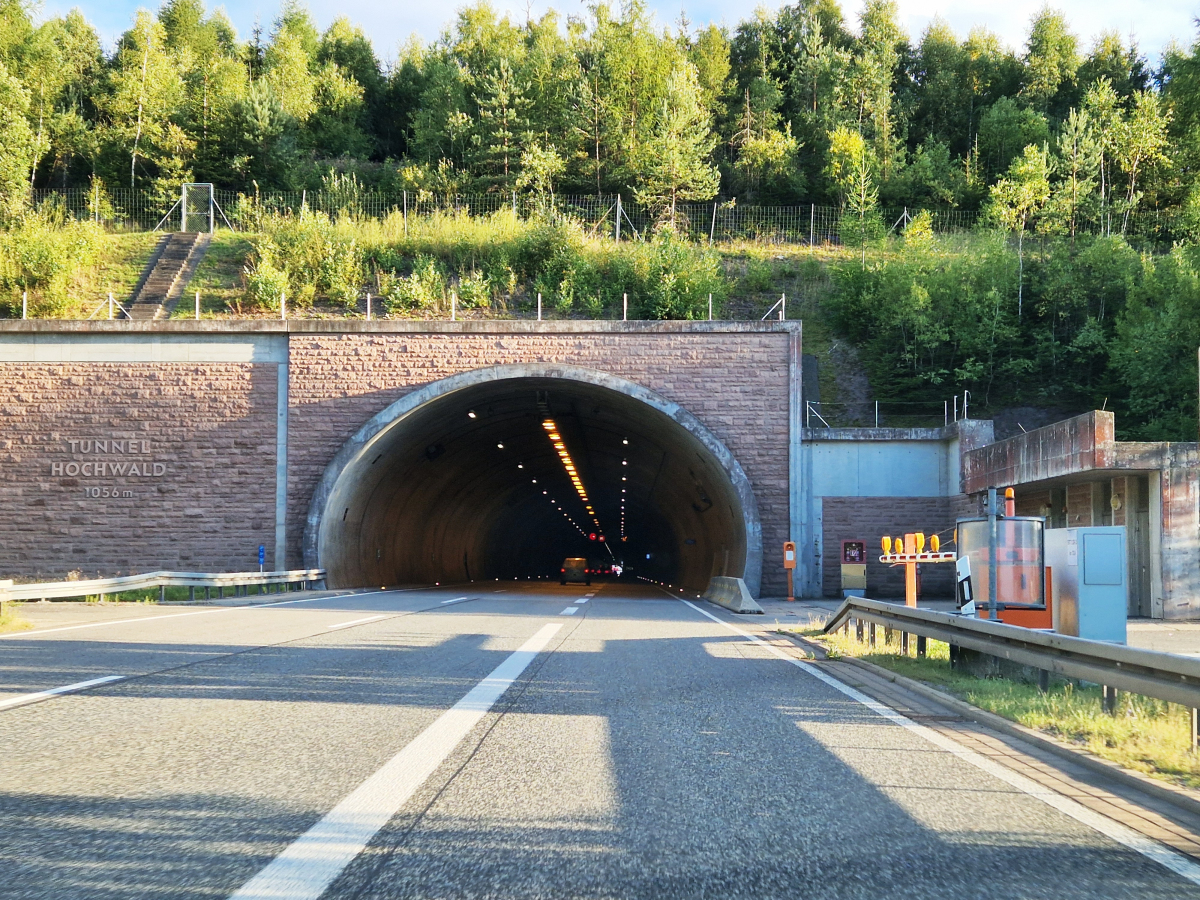

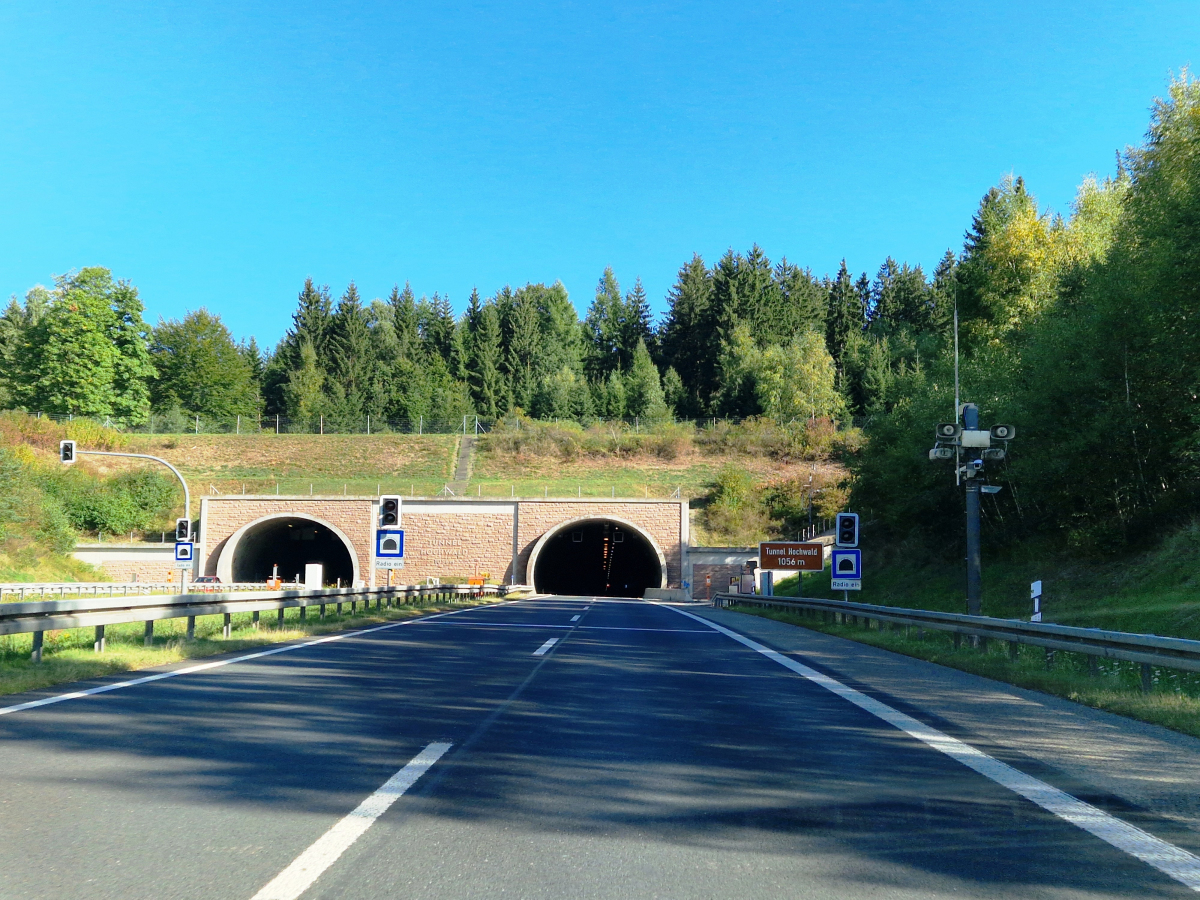

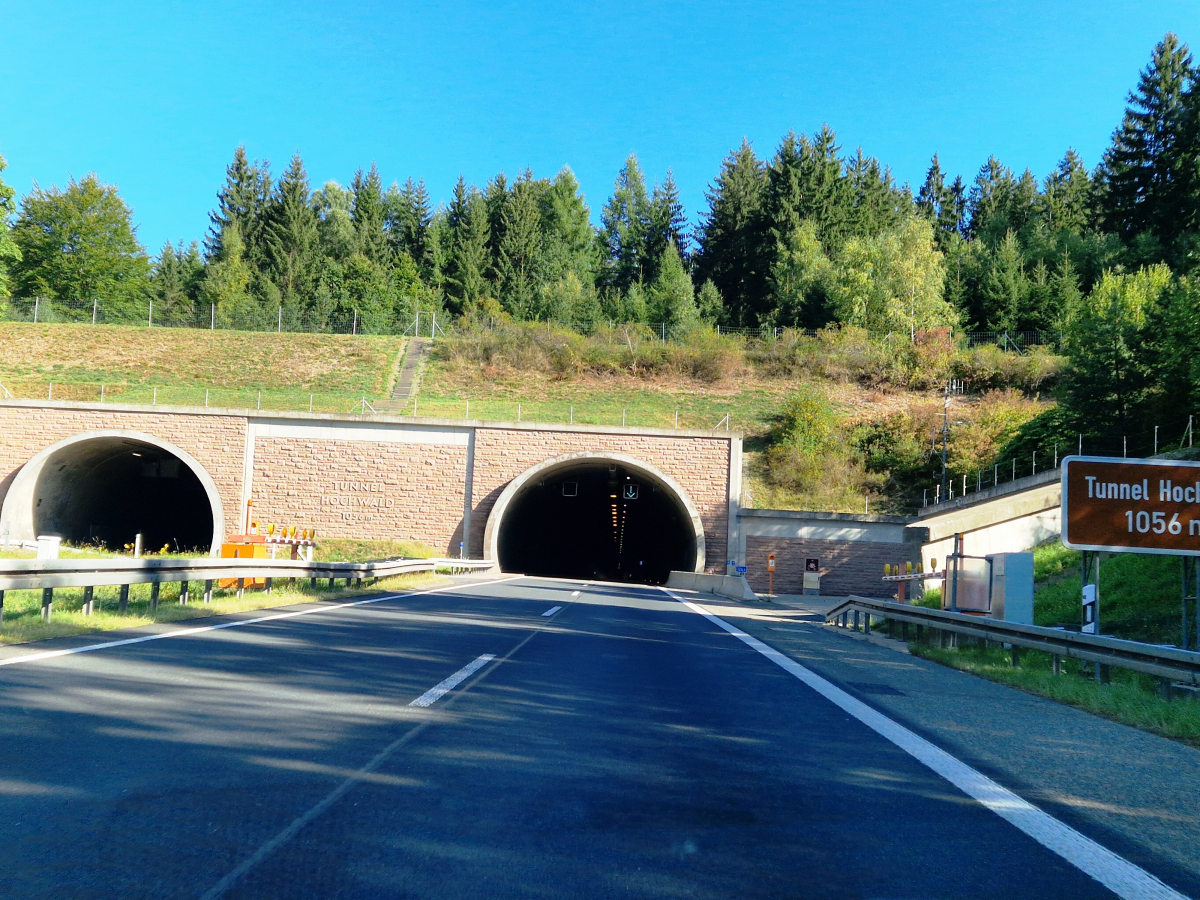

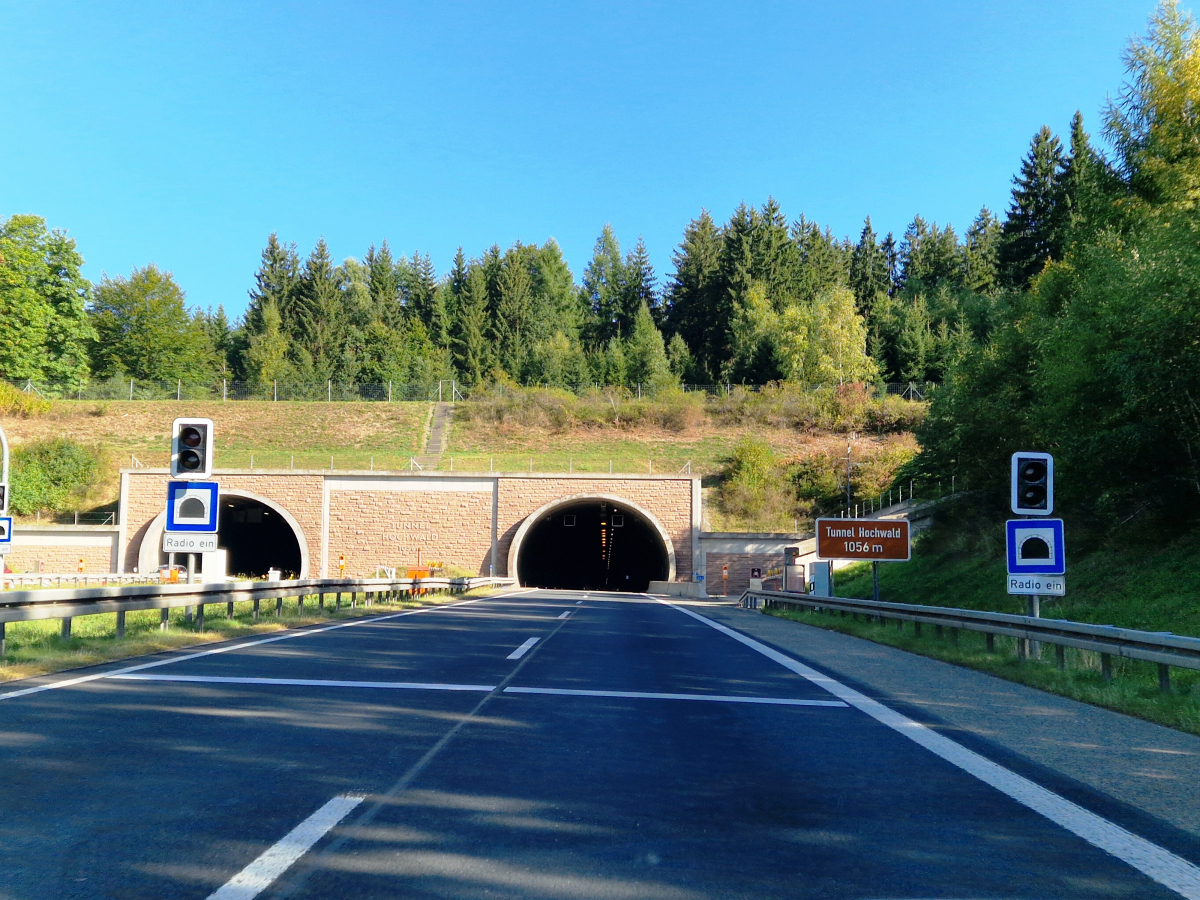

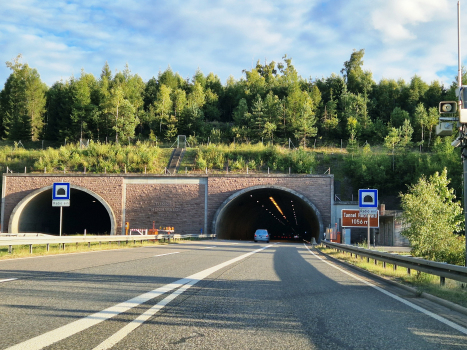

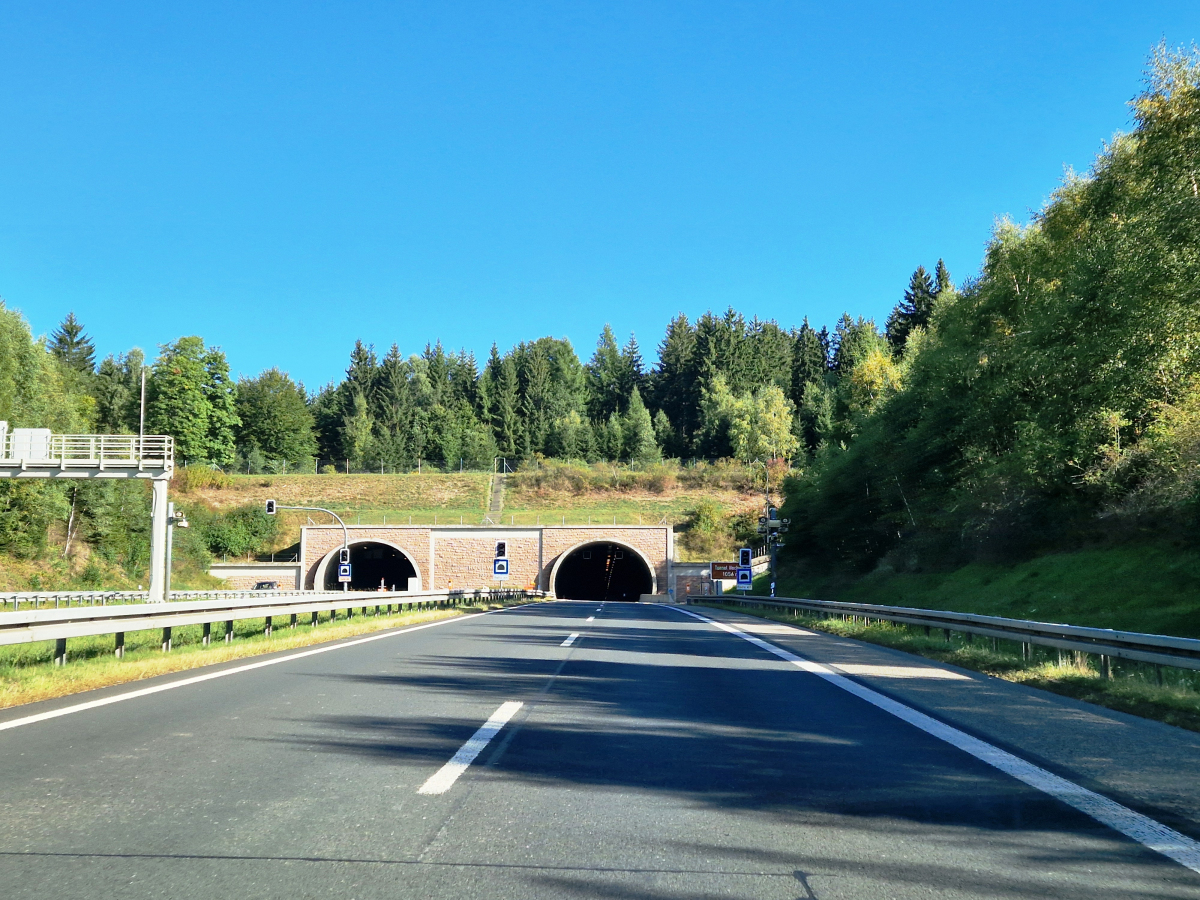

| Name in local language: | Tunnel Hochwald |
|---|---|
| Official designation: | 5316/02 |
| Beginning of works: | 1998 |
| Completion: | 2001 |
| Duration of works: | 41 months |
| Status: | in use |
Project Type
| Structure: |
Tunnel |
|---|---|
| Function / usage: |
Road tunnel |
Location
| Location: |
Zella-Mehlis, Schmalkalden-Meiningen, Thuringia, Germany |
|---|---|
| For: |
|
| Part of: | |
| Coordinates: | 50° 39' 46.99" N 10° 41' 21.32" E |
| Coordinates: | 50° 39' 11.76" N 10° 41' 25.34" E |
Technical Information
Dimensions
| total length | 2 x 1056 m | |
| clear interior profile | 9.50 m x 4.50 m | |
| tube | roadway / carriageway width | 1 m + 2 x 3.75 m + 1 m = 9.50 |
Quantities
| concrete volume | 21 160 m³ | |
| concrete volume | 26 000 m³ | |
| reinforcing steel | 1 435 t | |
| volume of extracted material | 182 000 m³ | |
| water proofing | 50 000 m³ | |
| shotcrete | 49 800 m³ |
Cost
| cost of construction | German Mark 68 000 000 |
Materials
| tunnel structure |
reinforced concrete
|
|---|
Chronology
| June 1998 | Construction begins. |
|---|---|
| November 2001 | End of construction. |
Participants
Owner
Client
Original design
Structural engineering
Architectural consulting
- Ralf Schüler (architectural consultant)
- Ursulina Schüler-Witte (architectural consultant)
Checking engineering
- KREBS+KIEFER Ingenieure GmbH
- Albert Krebs (checking engineer)
Co-contractor
Construction supervision
Relevant Web Sites
There currently are no relevant websites listed.
Relevant Publications
- Brücken und Tunnel der Bundesfernstraßen 2002. Deutscher Bundes-Verlag, Bonn (Germany), 2002, pp. 155-170.
- Brücken und Tunnel der Bundesfernstraßen 2004. Deutscher Bundes-Verlag, Berlin (Germany), 2004, pp. 141-166.
