General Information
Project Type
| Structure: |
Stressed ribbon bridge |
|---|---|
| Function / usage: |
Pedestrian bridge (footbridge) |
| Material: |
Timber bridge |
| Plan view: |
Structurae Plus/Pro - Subscribe Now! |
| Material: |
Structurae Plus/Pro - Subscribe Now! |
Location
| Location: |
Essing, Kelheim (Kreis), Bavaria, Germany |
|---|---|
| Crosses: |
|
| Part of: | |
| Coordinates: | 48° 56' 17.87" N 11° 46' 51.10" E |
Technical Information
Dimensions
| main span | 73.282 m | |
| total length | 189.91 m | |
| deck | deck depth | 0.65 m |
| deck width | 3.20 m |
Materials

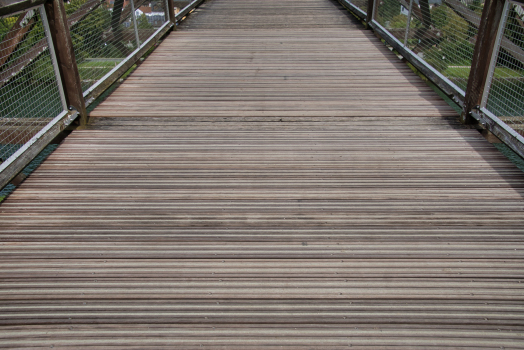

| deck |
wood
|
|---|---|

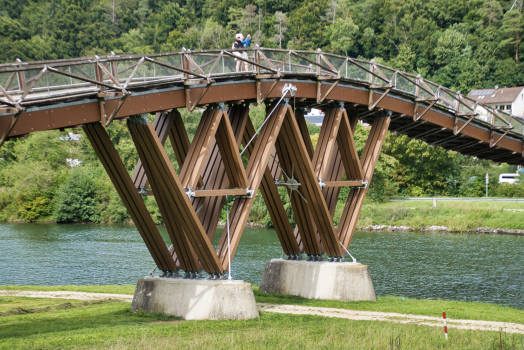

| piers |
wood
|
Participants
Relevant Web Sites
Relevant Publications
- (2002): 30 Bridges. Laurence King, pp. 140-143.
- : 30 Brücken. Callwey Verlag, Munich (Germany), pp. 140-143.
- (1993): The Essing Timber Bridge, Germany. In: Structural Engineering International, v. 3, n. 2 (May 1993), pp. 70-72.
- (1998): Faszination Brücken. Baukunst - Technik - Geschichte. 1st edition, Callwey, Munich (Germany), pp. 206-213.
- (2017): Faszination Brücken. Baukunst - Technik - Geschichte. 3rd edition, Wilhelm Ernst & Sohn Verlag für Architektur und technische Wissenschaften, Berlin (Germany), ISBN 978-3-433-03180-3, pp. 214-221.
