General Information
Project Type
| Function / usage: |
High-speed rail bridge |
|---|---|
| Structure: |

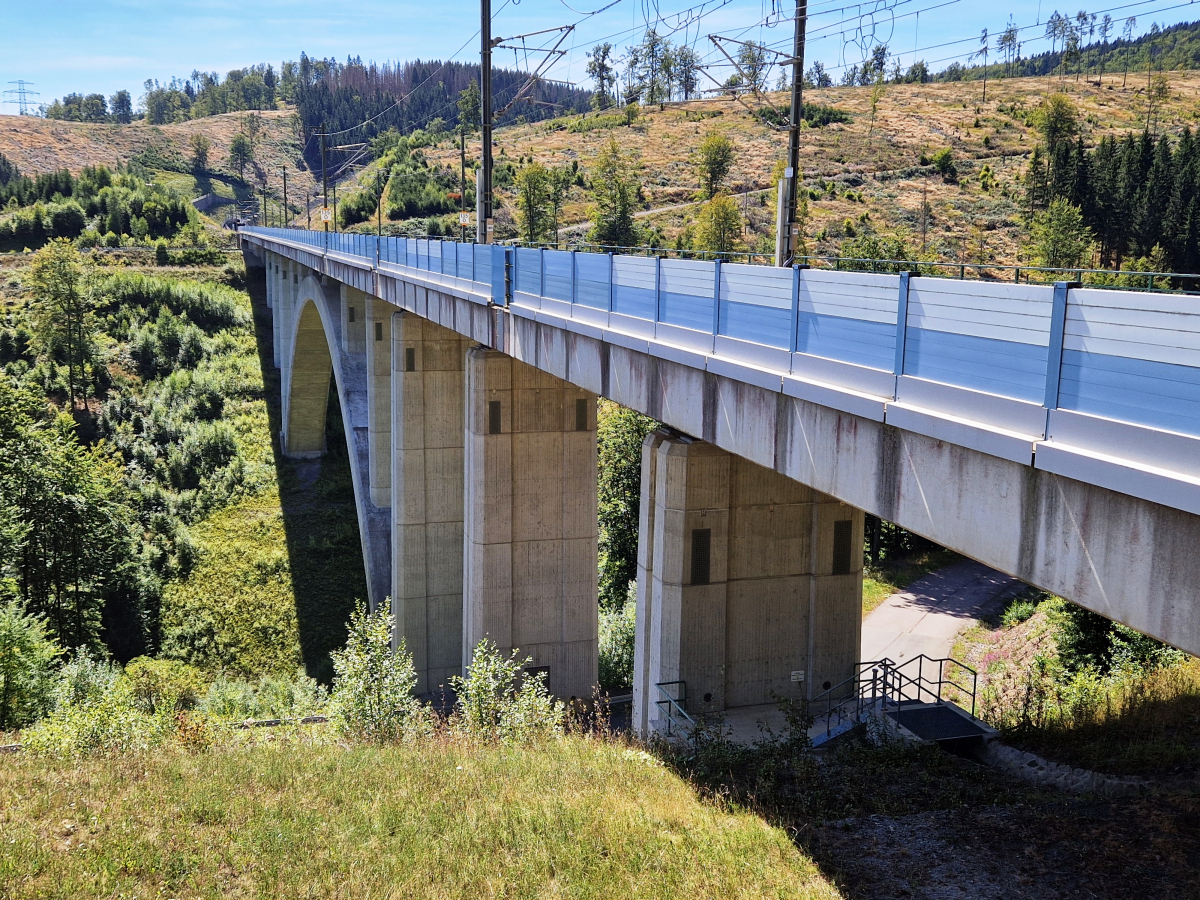

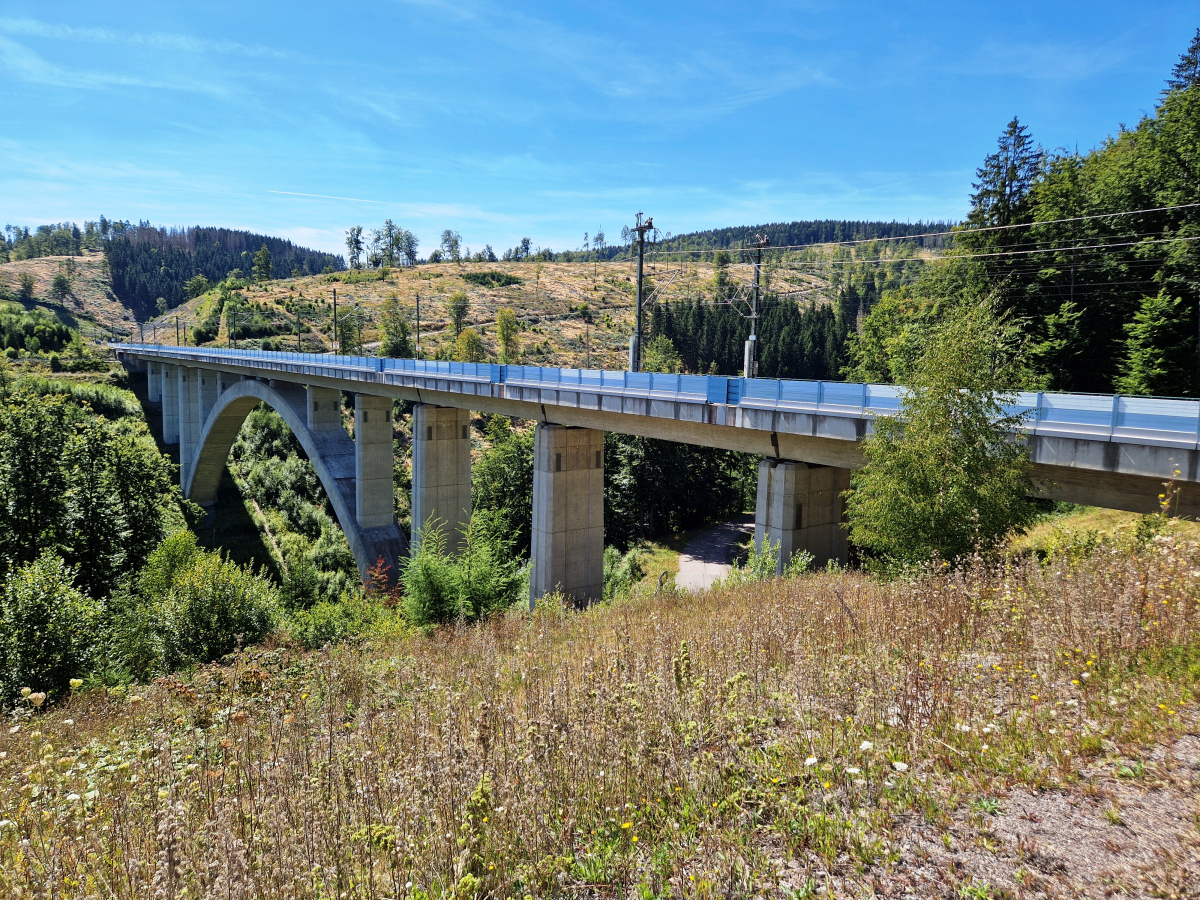

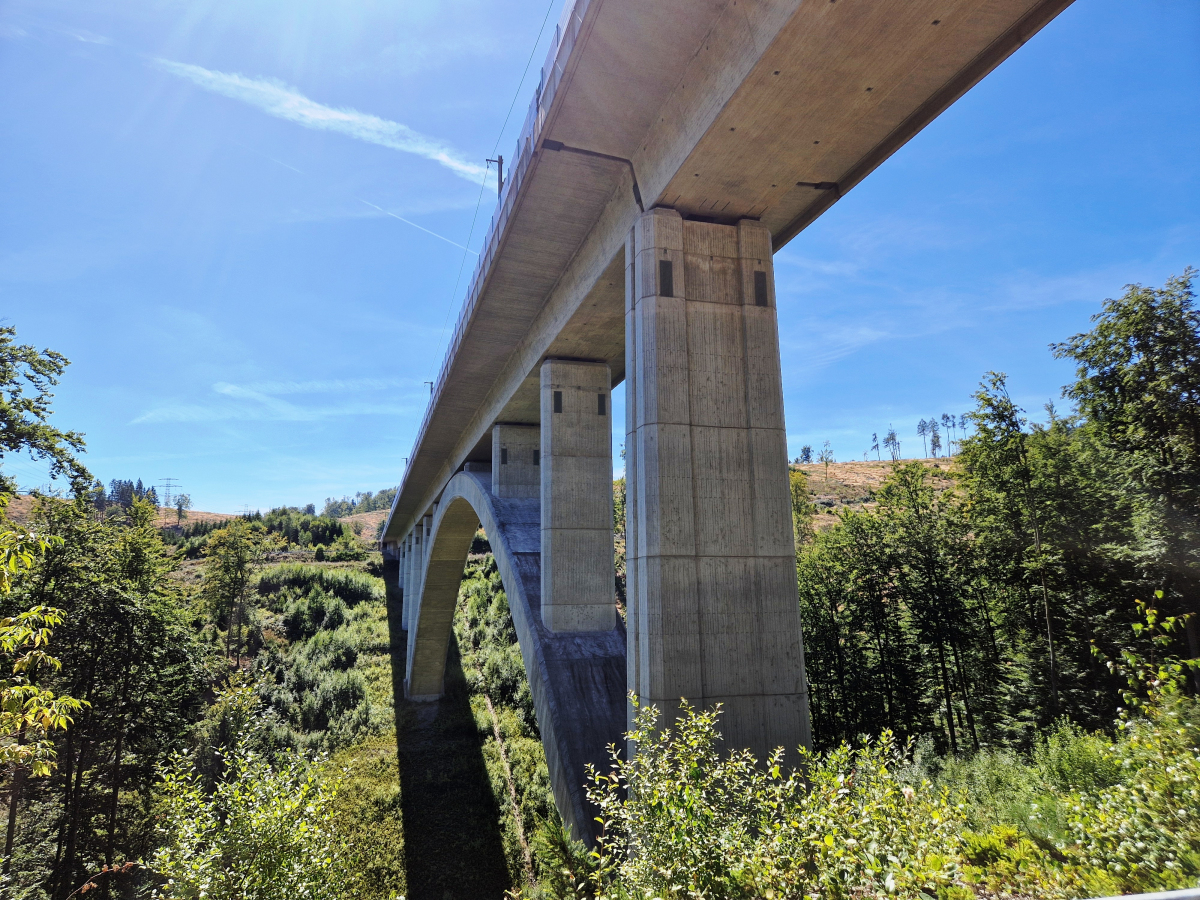

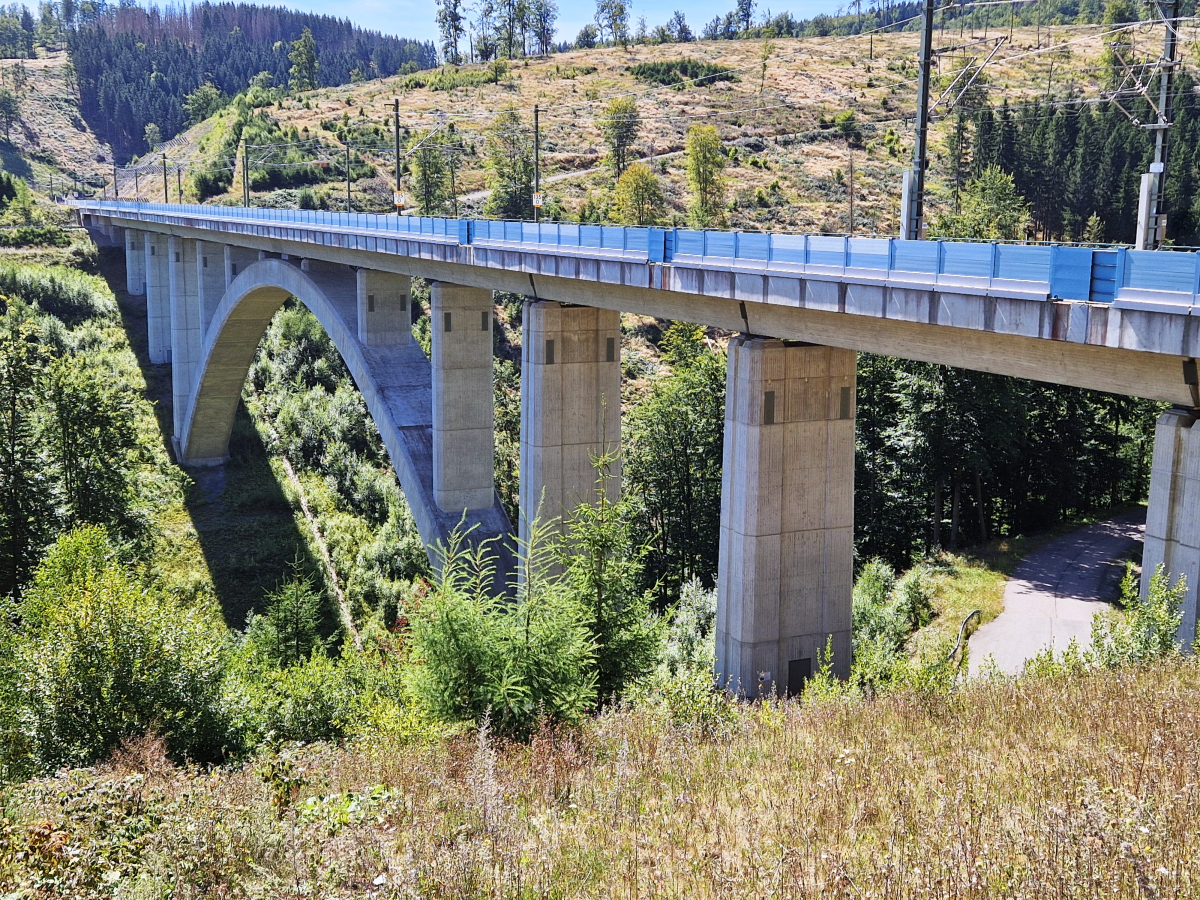

Deck arch bridge |
| Material: |
deck: Prestressed concrete bridge arch: Reinforced concrete bridge |
Location
| Location: |
Goldisthal, Sonneberg (Kreis), Thuringia, Germany |
|---|---|
| Coordinates: | 50° 30' 51.87" N 10° 59' 35.73" E |
Technical Information
Dimensions
| width | 14.10 m | |
| total length | 291 m | |
| arch | arch span | 141 m |
Design Loads
| design speed | 300 km/h |
Materials
| deck |
prestressed concrete
|
|---|---|
| arch |
reinforced concrete
|
Participants
Relevant Web Sites
There currently are no relevant websites listed.
Relevant Publications
- (2012): Die Dunkeltalbrücke im Thüringer Wald – Teil der DB Neubaustrecke Ebensfeld-Erfurt. Presented at: 22. Dresdner Brückenbausymposium, Dresden, 13. März 2012.
- About this
data sheet - Structure-ID
20064925 - Published on:
31/03/2013 - Last updated on:
05/02/2016
