General Information

Completion: 2002
Status: in use

Project Type

Function / usage: Pedestrian bridge (footbridge)

Location

Location: , , , ,
Is supported by: Wicker Arches (1848)
Coordinates: 53° 23' 16.80" N    1° 27' 36.11" W
Show coordinates on a map

Technical Information

There currently is no technical data available.

Excerpt from Wikipedia

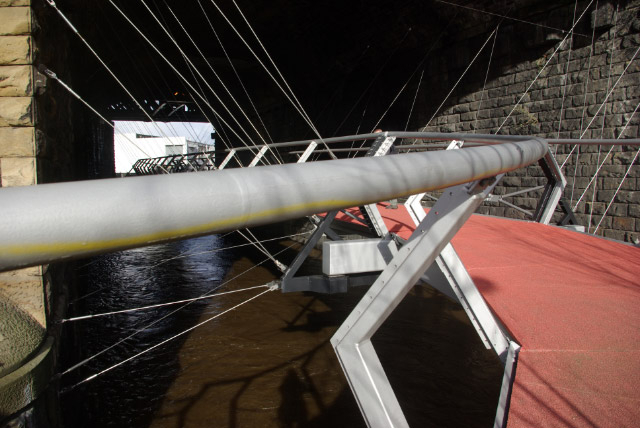

The Cobweb Bridge, also known as Spider Bridge, is located in the city centre of Sheffield, South Yorkshire, England, near the disused Sheffield Victoria railway station. Completed in 2002, its design solves a difficult problem: passing the riverside cycle- and footpath (the Five Weirs Walk) under the massive Wicker Arches viaduct while linking one bank of the River Don to the other. Without the Cobweb Bridge, the footpath would have had to make a one-mile detour.

Designed by Sheffield City Council's Structures Section, the entire 330-foot (100 m) long bridge is suspended on a web of steel cables secured to the underside of the viaduct, hence the name. Completing the theme, large steel likenesses of spiders conceal the overhead lighting.

While the bridge has been prone to vandalism in the past (the wires forming the parapet having been stolen more than once), the bridge was repaired in 2015 to reduce the risk of future vandalism. The newly restored bridge no longer uses wires in the parapet, having been replaced with metal plates with spiderweb designs.

Text imported from Wikipedia article "Cobweb Bridge" and modified on July 23, 2019 according to the CC-BY-SA 4.0 International license.

Participants

Currently there is no information available about persons or companies having participated in this project.
