General Information

Completion: 1883
Status: demolished (1926)

Project Type

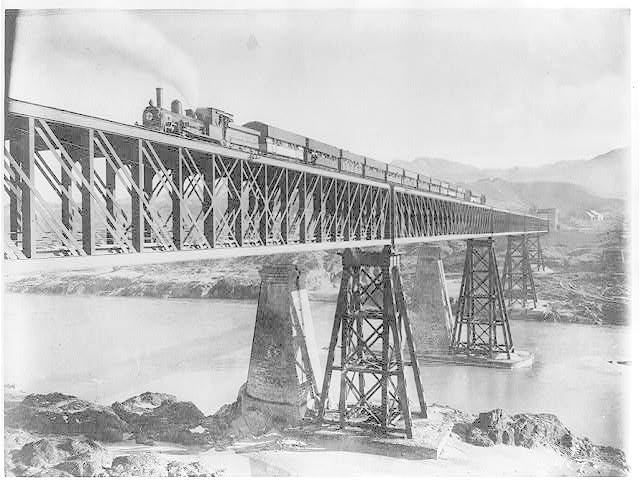

Structure: Truss bridge
Function / usage: Railroad (railway) bridge
Material: Steel bridge

Location

Location: ,
Crossed:
  • Indus River
Replaced by: Attock Bridge (1929)
Coordinates: 33° 52' 20.50" N    72° 14' 12.67" E
Show coordinates on a map

Technical Information

Dimensions

span lengths 2 x 78 m - 2 x 94 m - 78 m
number of spans 5

Materials

truss steel

Excerpt from Wikipedia

Attock Bridge (Urdu: اٹک پل ‎) is situated between Attock Khurd and Khairabad Kund on Indus river in Pakistan. It is commonly known as "Old Attock Bridge". This bridge is one of the most important strategic and commercial crossing on the Indus River between Punjab and Khyber Pakhtunkhwa provinces, hence was heavily fortified. It was originally designed by Sir Guildford Molesworth and was opened to traffic on 24 May 1883. The cost of construction was more than Rs 3.2 million.

The structure was redesigned by Sir Francis Callaghan and was reconstructed in 1929, at the cost of Rs 2.5 million. The bridge has 2 levels and 5 spans. Three spans are 257 feet long and two are 312 feet long. The upper level is use for railway traffic and lower level was used for road traffic. The approaches to the bridge were built as solid fortifications - as a defense against raids from nearby Pashtun tribesmen.

This bridge was a part of famous Grand Trunk Road. In 1979 a new bridge was constructed and road traffic was shifted to there. This new bridge is known as "New Attock Bridge".

Attock Bridge is still in use for railway traffic.

Text imported from Wikipedia article "Attock Bridge" and modified on September 13, 2020 according to the CC-BY-SA 4.0 International license.
