General Information
| Completion: | 1931 |
|---|---|
| Status: | in use |
Project Type
| Structure: |
Three-span suspension bridge |
|---|---|
| Support conditions: |
for registered users |
| Secondary structure(s): |
Structurae Plus/Pro - Subscribe Now! |
| Function / usage: |
Road bridge |
| Material: |
Steel bridge Structurae Plus/Pro - Subscribe Now! Structurae Plus/Pro - Subscribe Now! |
Location
| Location: |
Toledo, Lucas County, Ohio, USA |
|---|---|
| Address: | OH 2 |
| Crosses: |
|
| Coordinates: | 41° 38' 28" N 83° 32' 0" W |
Technical Information
Dimensions
| main span | 239.3 m | |
| total length | 980 m | |
| suspended length | 382 m | |
| roadway / carriageway width | 16 m | |
| deck | deck width | 18 m |
Materials
| deck |
steel
|
|---|---|
| pylons |
steel
|
Excerpt from Wikipedia

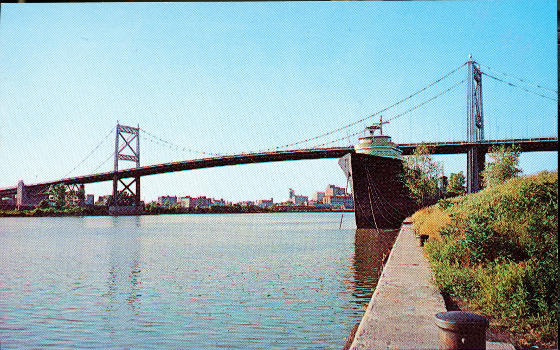

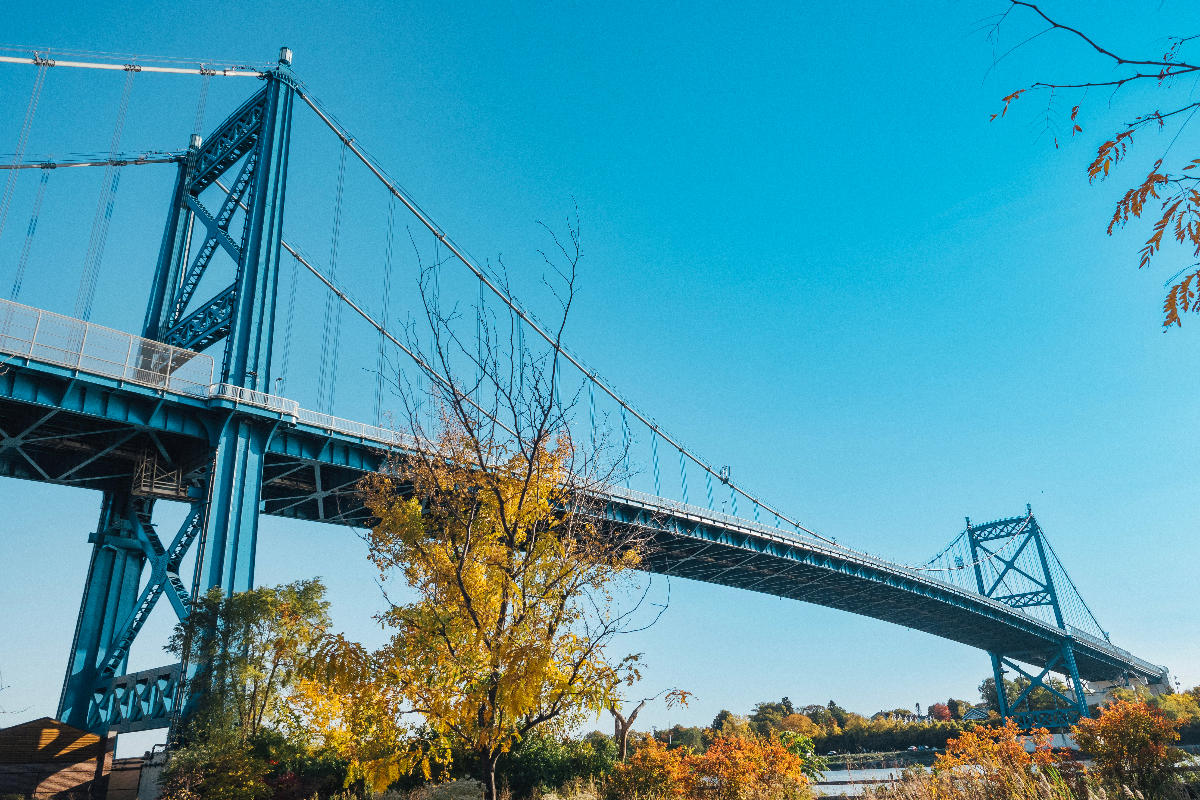

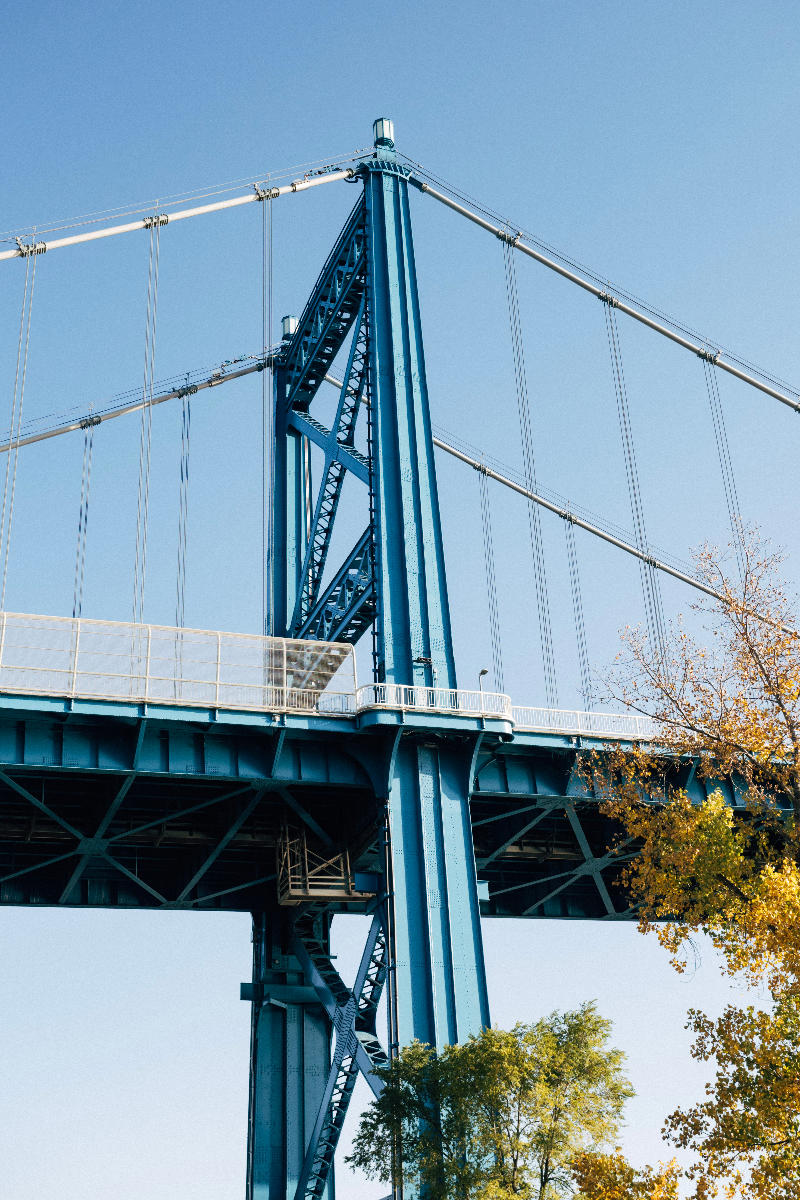

The Anthony Wayne Bridge, commonly called the High Level Bridge, was designed by Waddell & Hardesty and constructed by the McClintic-Marshall Company in 1931, and is a downtown Toledo, Ohio landmark named after General Anthony Wayne. It is a suspension bridge that spans the Maumee River. The bridge has some features that give it a unique aesthetic quality, including a sky blue color and various lattice patterns.
Ohio State Routes 2, 51, and 65 cross the Maumee River on the Anthony Wayne Bridge; it also connects Clayton Street to Woodville Road.
Reconstruction
In April 2012, the city of Toledo and the Ohio Department of Transportation announced a project that would close the bridge to traffic for nearly 2 years. The redevelopment project took nearly 3 years to complete and reopened in October 2015
Dimensions
- Deck width: 60 feet (18 m)
- Roadway width: 54 feet (16 m)
- Structure length: 3,215 feet (980 m)
- Center span: 785 feet (239 m)
- Total suspended length: 1,252 feet (382 m)
Text imported from Wikipedia article "Anthony Wayne Bridge"
and modified on 23 July 2019 under the CC-BY-SA 3.0 license.
Participants
Design
Contractor
Cables
Relevant Web Sites
Relevant Publications
- (2013): Assessing and Rehabilitating the Anthony Wayne Suspension Bridge. Presented at: IABSE Conference: Assessment, Upgrading and Refurbishment of Infrastructures, Rotterdam, The Netherlands, 6-8 May 2013, pp. 394-395.
- About this
data sheet - Structure-ID
20007344 - Published on:
01/01/2003 - Last updated on:
05/02/2016
