General Information
Project Type
| Structure: |
Cable-stayed bridge with semi-fan system Three-span cable-stayed bridge |
|---|---|
| Secondary structure(s): |
Structurae Plus/Pro - Subscribe Now! |
| Function / usage: |
Road bridge |
| Material: |
Prestressed concrete bridge Structurae Plus/Pro - Subscribe Now! |
Location
Technical Information
Dimensions
| main span | 350.5 m | |
| total length | 1.5 km | |
| pylons | height | 125 m |
Excerpt from Wikipedia

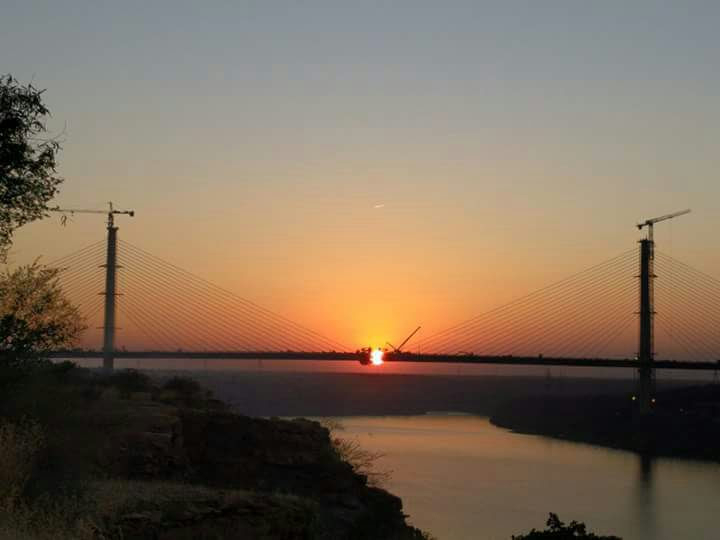

The Kota Bridge or Kota Chambal or Kota Cable Bridge is a cable-stayed bridge in Kota, Rajasthan. The bridge was inaugurated by Prime Minister of India Narendra Modi on 29 August 2017. The bridge is a part of the Kota Bypass and crosses the Chambal River in the outskirts of the city.
Funding

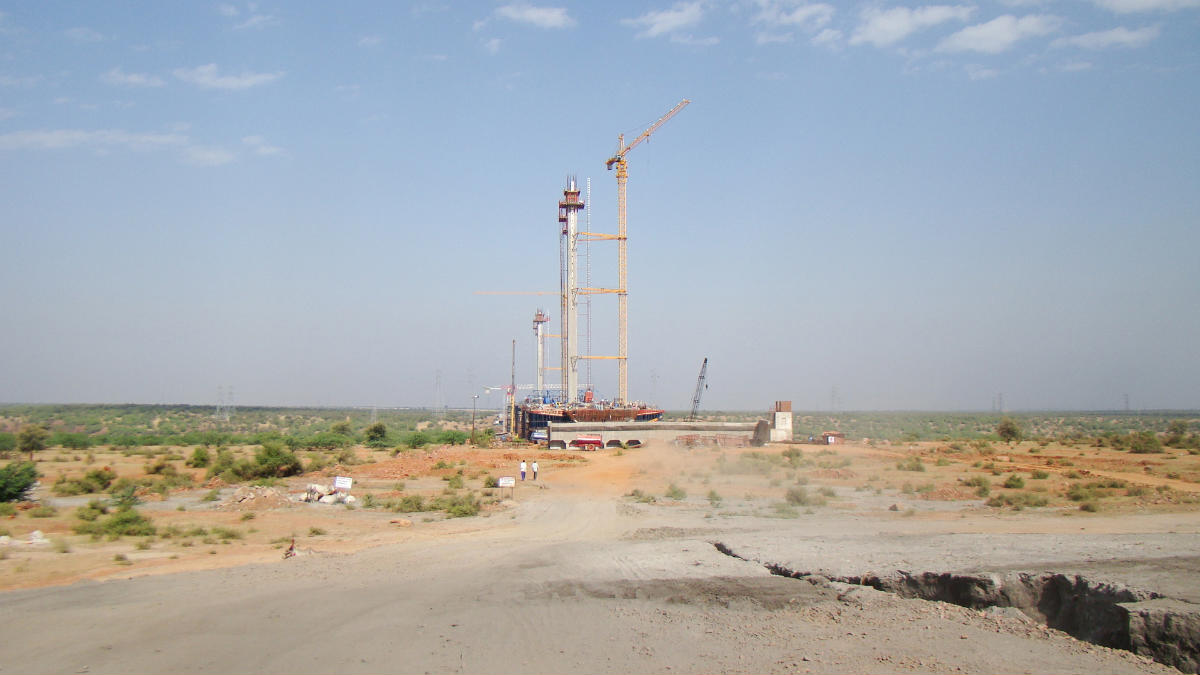

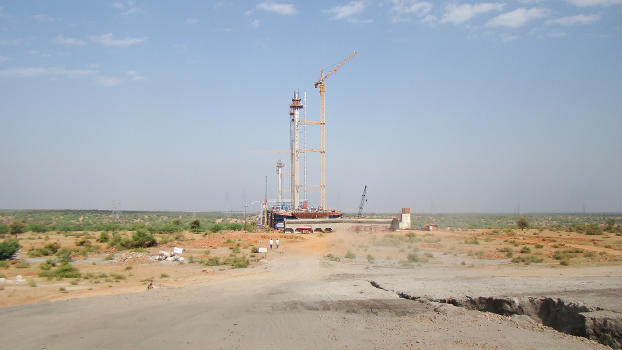

The project is being sponsored by the National Highways Authority of India (NHAI) in a 2750 million INR investment on the bridge and a 40 months-deadline. The agreement was signed in 2006. Due to delay in Environmental and Wild life clearances it could start in 2007 only. The bridge was scheduled to be opened in November 2012. Later this was pushed to May 2017. It is being constructed by Hyundai Engineering (HEC) of South Korea.
Structure
This bridge is cable-stayed with single plain suspension with the main span of 350 metres and lateral spans of 175 metres on either side of the bridge. The bridge is around 60-metre-high from the surface of the Chambal River.Kota's Iconic Engineering Marvel open for commuters on 29 August 2017.
Accident
On 24 December 2009, at about 5.30 pm the under-construction west side of the bridge comprising span P4-P3, Pilon P4, Pier P4 and cantilever portion up to segment 10 (each segment being 3.5 meters) collapsed into the river below without any warning signs, killing 48 workers and engineers and injuring a few more.
Text imported from Wikipedia article "Kota Chambal Bridge" and modified on 05 October 2020 according to the CC-BY-SA 3.0 license.
Participants
Contractor
Relevant Web Sites
Relevant Publications
- (2020): Long-Term Movement Behaviour of Bridge Bearings and Expansion Joints from SHM Data. Presented at: IABSE Symposium: Synergy of Culture and Civil Engineering – History and Challenges, Wrocław, Poland, 7-9 October 2020, pp. 1125-1132.
