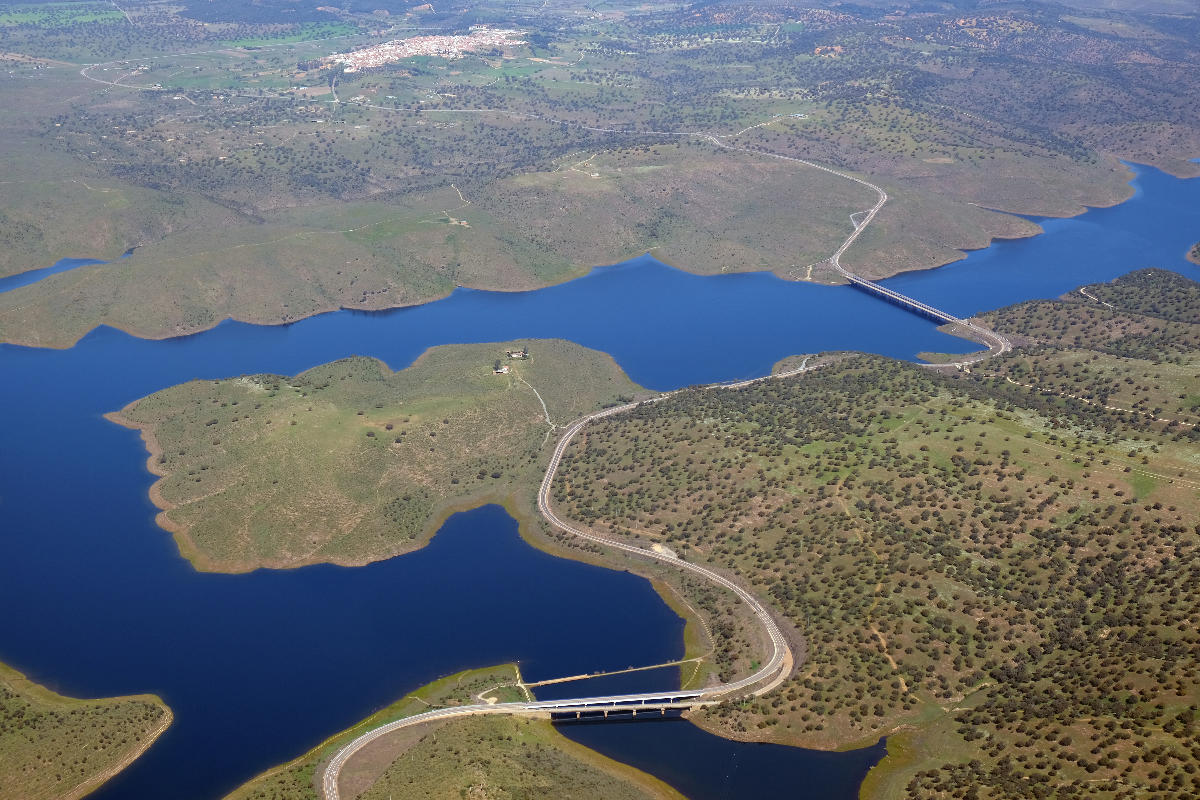

García de Sola Reservoir : The reservoir created by the García de Sola Dam is crossed by the Castilblanco Viaducts (top right) and at the bottom by the Benazaire Bridges of which one is in use, while the masonry bridge is submerged when the water levels are high and the 1960s bridge was decomissioned when the newer bridges was built in 2011.
media credits (ID:467118)
Ferrovial Construcción | Viaducto de Castilblanco en Badajoz : El Viaducto de Castilblanco en Badajoz situado en la N-502 sobre el río Guadiana, une las dos riberas del embalse de García Sola y facilita la comunicación entre la dos orillas. Las obras de emergencia, con un coste de casi diez millones de euros, se han realizado en un tiempo récord con el objetivo de cubrir las necesidades de los ciudadanos y garantizar su seguridad.
media credits (ID:467104)

General Information

Name in local language: Viaducto de Castilblanco
Beginning of works: 2016
Completion: 2017
Status: in use

Project Type

Structure: Pile bridge
Box girder bridge
Function / usage: Road bridge
Construction method: Precast girders with cast-in-situ slab
Support conditions: Structurae Plus/Pro - Subscribe Now!
Plan view: Structurae Plus/Pro - Subscribe Now!
Deck levels: Structurae Plus/Pro - Subscribe Now!

Location

Location: , , ,
Address: N-502
Crosses:
  • Guadiana River
Replaces: Castilblanco Viaduct
Coordinates: 39° 15' 20.16" N    5° 4' 0.90" W
Show coordinates on a map

Technical Information

Dimensions

main span 43.75 m
length 437.5 m
span lengths 10 x 43.75 m
number of spans 10
number of lanes 2
roadway / carriageway width 10.00 m
deck deck width 11.50 m
on-center distance between girders 5.02 m
deck slab thickness 0.35 m
girder depth 2.20 m
number of longitudinal girders 2
pier heads width 3.00 m
height 1.80 m
length 11.50 m
piles diameter 1.80 m
on-axis spacing 6.00 m

Cost

cost of construction Euro 8 260 000

Materials

piles concrete-filled steel tubes
deck slab reinforced brick
abutments reinforced concrete
girders precast prestressed concrete
pier heads prestressed concrete

Participants

Owner
Structural engineering
Contractor
Bearings
Expansion joints
